Name: Front suspension - Shock absorber and brake disc
Rating: 5.0 (1 reviews)

Front suspension - Shock absorber and brake disc of Ferrari Ferrari 512 M

View All

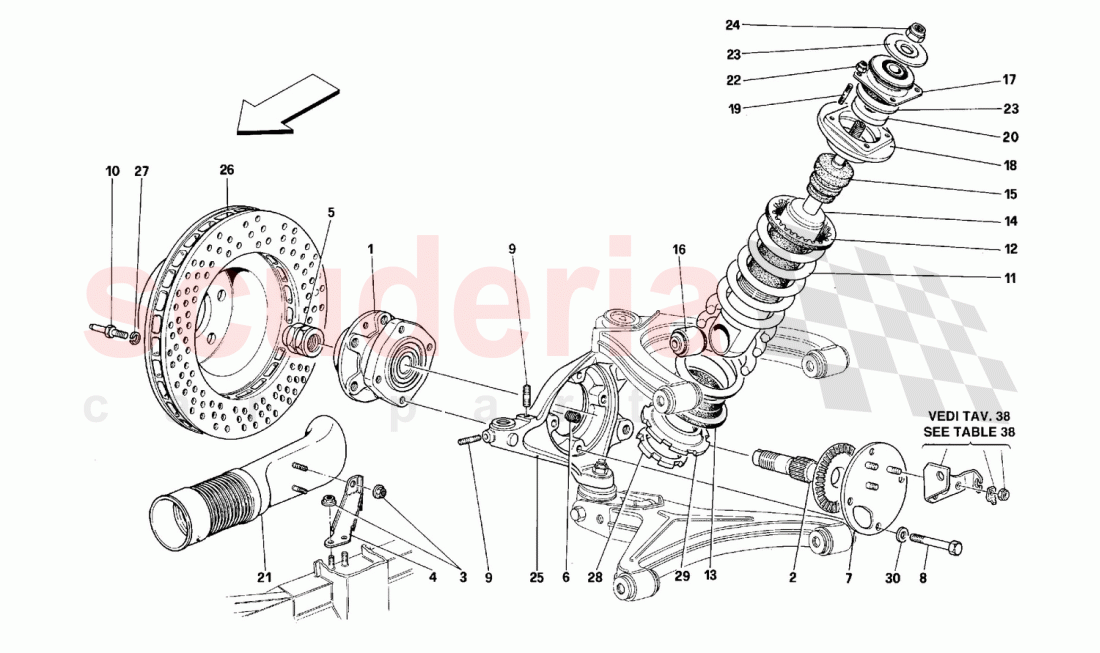

Ferrari 512 M - Front suspension - Shock absorber and brake disc

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142882	HUB COMPLETE BEARING	$1,997.71	To Order

Photo	Part No	Description	Price (each)	Stock
	151173	Pin	$236.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	149418	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209184	NUT	$11.52	To Order

Photo	Part No	Description	Price (each)	Stock
	133771	THREADED INSERT	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	151181	R.H. cover	$26.87	To Order

Photo	Part No	Description	Price (each)	Stock
	139973	SCREW	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11000924	Stud bolt	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	$10.11	To Order

Photo	Part No	Description	Price (each)	Stock
	151881	SPRING -Sold in pair-	$617.53	To Order

Photo	Part No	Description	Price (each)	Stock
	150928	Upper spacer	$10.99	To Order

Photo	Part No	Description	Price (each)	Stock
	113581	LOWER SPACER	$23.50	To Order

Photo	Part No	Description	Price (each)	Stock
	148529	Shock absorber	$1,348.07	To Order

Photo	Part No	Description	Price (each)	Stock
	149857	RUBBER SHOCK ABSORBER PAD	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	130516	SHOCK ABSORBER MOUNTING BUSH	$57.23	To Order

Photo	Part No	Description	Price (each)	Stock
	151548	Hyperblock with 3 -	$210.77	To Order

Photo	Part No	Description	Price (each)	Stock
	151547	SPRING RETAINING CUP	$46.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	149858	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149342	Air conveyor complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NUT	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	149718	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	149891	R.H. stub axle, complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153730	Brake disc	$426.50	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	141860	RING NUT	$197.80	To Order

Photo	Part No	Description	Price (each)	Stock
	155086	SPACER	$83.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	149892	L.H. stub axle, complete	149892 L.H. stub axle, complete	-	1	Enquire
-	14306924	SCREW	14306924 SCREW	$0.75	4
-	151182	L.H. cover	151182 L.H. cover	$24.47	1
1	142882	HUB COMPLETE BEARING	142882 HUB COMPLETE BEARING	$1,997.71 MSRP: ~~2,705.00~~ (26.1% off)	2
2	151173	Pin	151173 Pin	$236.22	2
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	8
4	149418	Bracket	149418 Bracket	-	2	Enquire
5	209184	NUT	209184 NUT	$11.52 MSRP: ~~81.96~~ (85.9% off)	2
6	133771	THREADED INSERT	133771 THREADED INSERT	$3.94 MSRP: ~~4.97~~ (20.7% off)	4
7	151181	R.H. cover	151181 R.H. cover	$26.87	1
8	139973	SCREW	139973 SCREW	$2.74	8
9	11000924	Stud bolt	11000924 Stud bolt	$1.56	4
10	104370	SCREW	104370 SCREW Not as spare parts now / Replaced by 16043424	$10.11	4
11	151881	SPRING -Sold in pair-	151881 SPRING -Sold in pair-	$617.53	2
12	150928	Upper spacer	150928 Upper spacer	$10.99	2
13	113581	LOWER SPACER	113581 LOWER SPACER	$23.50	2
14	148529	Shock absorber	148529 Shock absorber	$1,348.07	2
15	149857	RUBBER SHOCK ABSORBER PAD	149857 RUBBER SHOCK ABSORBER PAD	$133.17	2
16	130516	SHOCK ABSORBER MOUNTING BUSH	130516 SHOCK ABSORBER MOUNTING BUSH	$57.23 MSRP: ~~61.27~~ (6.6% off)	2
17	151548	Hyperblock with 3 -	151548 Hyperblock with 3 -	$210.77	2
18	151547	SPRING RETAINING CUP	151547 SPRING RETAINING CUP	$46.21 MSRP: ~~59.75~~ (22.7% off)	2
19	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	$5.96	6
20	149858	Spacer	149858 Spacer	-	2	Enquire
21	149342	Air conveyor complete	149342 Air conveyor complete	-	2	Enquire
22	104030	NUT	104030 NUT	$0.26 MSRP: ~~1.00~~ (74% off)	6
23	149718	Washer	149718 Washer	-	4	Enquire
24	148020	NUT	148020 NUT	$4.46	2
25	149891	R.H. stub axle, complete	149891 R.H. stub axle, complete	-	1	Enquire
26	153730	Brake disc	153730 Brake disc	$426.50 MSRP: ~~515.00~~ (17.2% off)	2
27	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
28	141860	RING NUT	141860 RING NUT	$197.80 MSRP: ~~282.35~~ (29.9% off)	2
29	155086	SPACER	155086 SPACER	$83.42 MSRP: ~~106.16~~ (21.4% off)	2
30	12601474	WASHER	12601474 WASHER	$0.03	8
