Gearbox Controls

Ferrari 512 M

Find Your Part

Ferrari 512 M - Gearbox controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
107451 1st speed and Reverse fork control rod Enquire To Order
Photo Part No Description Price (each) Stock
107452 2nd and 3rd speed fork control rod Enquire To Order
Photo Part No Description Price (each) Stock
132333 4th and 5th speed control rod $92.97 To Order
Photo Part No Description Price (each) Stock
107374 Control fork for engagement of 1st, 2nd, 3rd speed and Reverse Enquire To Order
Photo Part No Description Price (each) Stock
156719 Control fork for engagement of 4th and 5th speeds $760.63 To Order
Photo Part No Description Price (each) Stock
150881 Gearbox control rod $134.36 To Order
Photo Part No Description Price (each) Stock
107454 Roller $0.23 To Order
Photo Part No Description Price (each) Stock
103011 Stop roller $40.49 To Order
Photo Part No Description Price (each) Stock
100750 SPRING $1.73 To Order
Photo Part No Description Price (each) Stock
115376 BUSHING $21.80 To Order
Photo Part No Description Price (each) Stock
101612 BALL $1.30 IN STOCK
Photo Part No Description Price (each) Stock
16043534 SCREW M8 X 22 $0.36 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
106217 Small forks control lever Enquire To Order
Photo Part No Description Price (each) Stock
106221 Small fork controlling 1st speed and Reverse rod Enquire To Order
Photo Part No Description Price (each) Stock
106222 Ditto for 2nd and 3rd speeds Enquire To Order
Photo Part No Description Price (each) Stock
106223 Ditto for 4th and 5th speeds Enquire To Order
Photo Part No Description Price (each) Stock
146691 Gearshift lever Enquire To Order
Photo Part No Description Price (each) Stock
162614 KNOB -Valid for 348 COMP.- $259.12 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $25.59 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
146125 Front gearbox control rod Enquire To Order
Photo Part No Description Price (each) Stock
146130 Gearbox control pin Enquire To Order
Photo Part No Description Price (each) Stock
146133 Gearbox casing Enquire To Order
Photo Part No Description Price (each) Stock
146690 Speed selector Enquire To Order
Photo Part No Description Price (each) Stock
150223 Gearbox casing, complete Enquire To Order
Photo Part No Description Price (each) Stock
107830 Screw -Valid till car $4.64 To Order
Photo Part No Description Price (each) Stock
103321 Adjusting tie rod $5.66 To Order
Photo Part No Description Price (each) Stock
106168 Bellows for rod $47.62 To Order
Photo Part No Description Price (each) Stock
103317 Lever return pin Enquire To Order
Photo Part No Description Price (each) Stock
146124 Lever return spring Enquire To Order
Photo Part No Description Price (each) Stock
103319 SPRING RETAINING DISC $20.24 To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING $0.23 IN STOCK
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT $28.96 IN STOCK
Photo Part No Description Price (each) Stock
115340 Center spring $5.92 To Order
Photo Part No Description Price (each) Stock
139555 SILENTBLOCK $109.10 IN STOCK
Photo Part No Description Price (each) Stock
10291490 Clamp $1.30 To Order
Photo Part No Description Price (each) Stock
101619 SCREW $22.21 To Order
Photo Part No Description Price (each) Stock
106687 Rubber boot $5.48 To Order
Photo Part No Description Price (each) Stock
16136621 Screw $1.36 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
101309 NUT $0.28 To Order
Photo Part No Description Price (each) Stock
151746 Screw -Valid from car $6.42 To Order
Photo Part No Description Price (each) Stock
10791924 Lock nut L.H. thread $6.42 To Order
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.53 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10791221 Lock nut R.H. thread $3.45 To Order
Photo Part No Description Price (each) Stock
146127 Joint eye Enquire To Order
Photo Part No Description Price (each) Stock
121906 Dowel $2.24 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
255527 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
66535800 SCREW $5.64 To Order
Photo Part No Description Price (each) Stock
146912 Gasket Enquire To Order
Photo Part No Description Price (each) Stock
143341 BEARING BUSH $7.42 To Order
Photo Part No Description Price (each) Stock
151283 Rear gearbox control rod $123.07 To Order
Photo Part No Description Price (each) Stock
151284 Fork -Valid from car $113.83 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
10730114 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
164274 Plate $1.30 To Order
Photo Part No Description Price (each) Stock
151282 Complete rod $168.86 To Order
View All

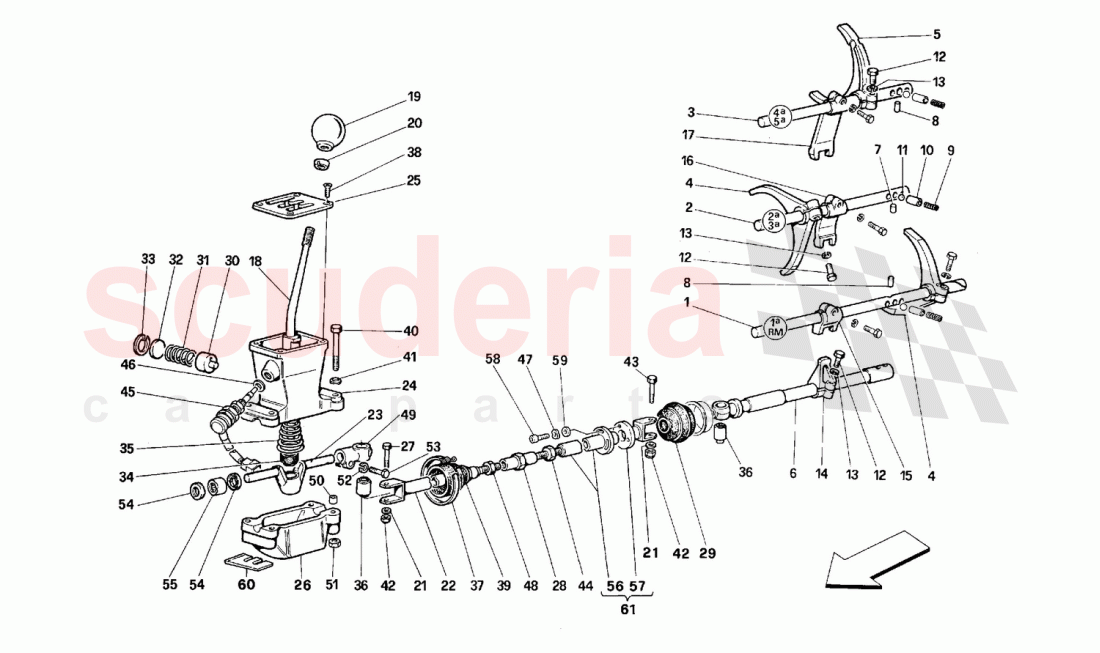

Gearbox controls of Ferrari Ferrari 512 M Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 150223
Gearbox casing, complete 		- 1 Enquire
- 150423
Gearshift lever
Valid for GD 		- 1 Enquire
1 107451
1st speed and Reverse fork control rod
control rod 		- 1 Enquire
2 107452
2nd and 3rd speed fork control rod
control rod 		- 1 Enquire
3 132333
4th and 5th speed control rod 		$92.97 1
4 107374
Control fork for engagement of 1st, 2nd, 3rd speed and Reverse
2nd, 3rd speed and Reverse 		- 2 Enquire
5 156719
Control fork for engagement of 4th and 5th speeds
4th and 5th speeds 		$760.63 1
6 150881
Gearbox control rod 		$134.36 (31% off) 1
7 107454
Roller 		$0.23 (95.4% off) 1
8 103011
Stop roller 		$40.49 (54.8% off) 2
9 100750
SPRING 		$1.73 3
10 115376
BUSHING 		$21.80 (60.9% off) 3
11 101612
BALL
IN STOCK 		$1.30 (21.2% off) 3
12 16043534
SCREW M8 X 22
IN STOCK 		$0.36 7
13 127496
WASHER 		$0.06 (80% off) 7
14 106217
Small forks control lever 		- 1 Enquire
15 106221
Small fork controlling 1st speed and Reverse rod
and Reverse rod 		- 1 Enquire
16 106222
Ditto for 2nd and 3rd speeds 		- 1 Enquire
17 106223
Ditto for 4th and 5th speeds 		- 1 Enquire
18 146691
Gearshift lever
Not for GD 		- 1 Enquire
19 162614
KNOB -Valid for 348 COMP.- 		$259.12 (57.1% off) 1
20 108010
CHECKNUT
IN STOCK 		$25.59 (12.7% off) 1
21 84653800
WASHER
IN STOCK 		$5.53 2
22 146125
Front gearbox control rod 		- 1 Enquire
23 146130
Gearbox control pin 		- 1 Enquire
24 146133
Gearbox casing
Not as spare parts / With assembly 150223 		- 1 Enquire
25 146690
Speed selector 		- 1 Enquire
26 150223
Gearbox casing, complete
Not as spare parts / With assembly 150223 		- 1 Enquire
27 107830
Screw -Valid till car 		$4.64 (11.6% off) 1
28 103321
Adjusting tie rod 		$5.66 1
29 106168
Bellows for rod 		$47.62 1
30 103317
Lever return pin 		- 1 Enquire
31 146124
Lever return spring 		- 1 Enquire
32 103319
SPRING RETAINING DISC 		$20.24 1
33 103326
SEEGER RING
IN STOCK 		$0.23 (71.3% off) 1
34 127446
BALL SEAT FOR JOINT
IN STOCK 		$28.96 (23.1% off) 1
35 115340
Center spring 		$5.92 1
36 139555
SILENTBLOCK
IN STOCK 		$109.10 2
37 10291490
Clamp 		$1.30 1
38 101619
SCREW 		$22.21 4
39 106687
Rubber boot 		$5.48 (70.9% off) 1
40 16136621
Screw 		$1.36 2
41 12601374
WASHER
IN STOCK 		$0.02 (92% off) 2
42 101309
NUT 		$0.28 (81% off) 2
43 151746
Screw -Valid from car 		$6.42 1
44 10791924
Lock nut L.H. thread 		$6.42 1
45 115980A
SWITCH 		- 1 Enquire
46 84653800
WASHER
IN STOCK 		$5.53 1
47 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
48 10791221
Lock nut R.H. thread 		$3.45 1
49 146127
Joint eye 		- 1 Enquire
50 121906
Dowel 		$2.24 2
51 14040711
NUT
IN STOCK 		$0.42 2
52 255527
WASHER
IN STOCK 		$0.06 1
53 66535800
SCREW 		$5.64 1
54 146912
Gasket 		- 4 Enquire
55 143341
BEARING BUSH 		$7.42 2
56 151283
Rear gearbox control rod
Not as spare part now / Replaced by part.61 		$123.07 1
57 151284
Fork -Valid from car
Not as spare part now / Replaced by part.61 		$113.83 1
58 231619
SCREW
IN STOCK 		$0.31 3
59 10730114
WASHER
IN STOCK 		$0.29 3
60 164274
Plate 		$1.30 1
61 151282
Complete rod 		$168.86 1
