Name: Clutch controls
Rating: 5.0 (1 reviews)

Clutch controls of Ferrari Ferrari 512 M

View All

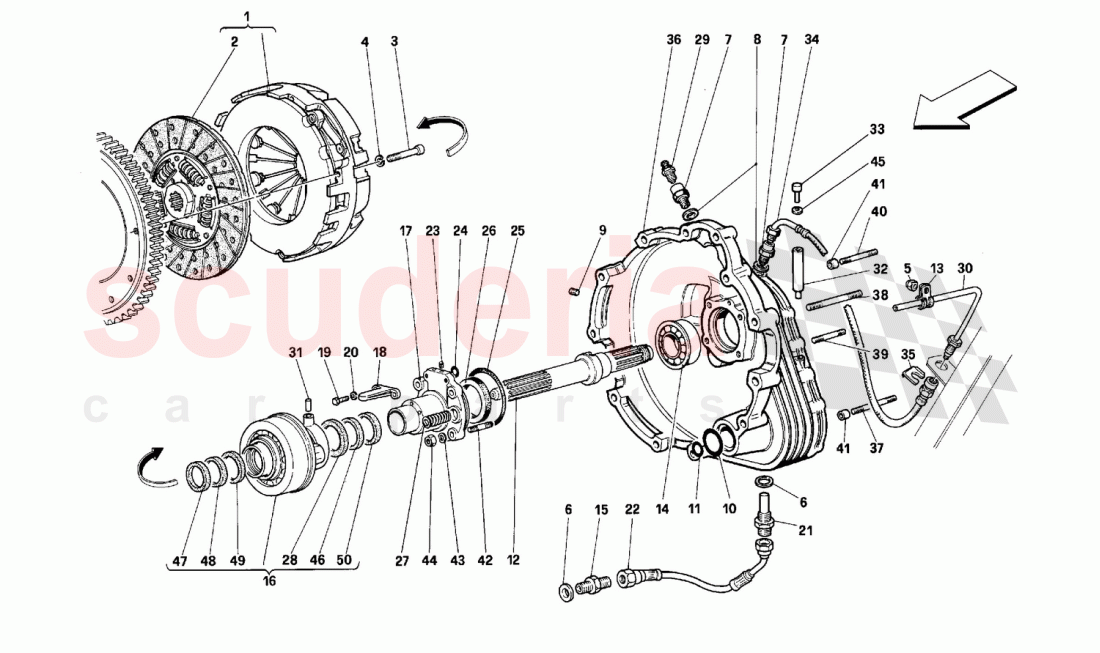

Ferrari 512 M - Clutch controls

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	194775	Complete Clutch	$3,167.69	To Order

Photo	Part No	Description	Price (each)	Stock
	194776	CLUTCH PLATE	$1,235.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14082210	SCREW	$2.90	To Order

Photo	Part No	Description	Price (each)	Stock
	238108	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	153722	GASKET	$7.99	To Order

Photo	Part No	Description	Price (each)	Stock
	148604	THREADED UNION	$109.57	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	CAP	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	104756	Sealing ring	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	104747	Sealing ring	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	151945	Clutch shaft	$592.73	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	155694	Front bearing	$138.69	To Order

Photo	Part No	Description	Price (each)	Stock
	153905	Union	$54.91	To Order

Photo	Part No	Description	Price (each)	Stock
	177202	Thrust bearing complete	$794.34	To Order

Photo	Part No	Description	Price (each)	Stock
	154511	Bush supporting flange	$890.75	To Order

Photo	Part No	Description	Price (each)	Stock
	151693	PLATE	$39.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10977521	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	153708	Union	$72.55	To Order

Photo	Part No	Description	Price (each)	Stock
	153759	Oil connection pipe	$166.02	To Order

Photo	Part No	Description	Price (each)	Stock
	65928500	THREADED PLUG	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	233118	O-RING D.6 X 2.2	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	121814	O-Ring	$17.89	To Order

Photo	Part No	Description	Price (each)	Stock
	138680	Sealing ring	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	155207	Pre-Tightening Springs	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	154508	Sealing Ring 44mm	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	152954	BLEED NIPPLE SCREW	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock
	147973	Pipe from 2 way union to flexible	$2.07	To Order

Photo	Part No	Description	Price (each)	Stock
	13904970	SPRING PIN	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	109789	Extension for breather	$28.48	To Order

Photo	Part No	Description	Price (each)	Stock
	13414691	OIL BREATHER	$12.72	To Order

Photo	Part No	Description	Price (each)	Stock
	124840	Flexible hose for clutch hydraulic control	$408.41	To Order

Photo	Part No	Description	Price (each)	Stock
	110810	Pipe securing plate	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	153232	Clutch housing complete	$2,362.33	To Order

Photo	Part No	Description	Price (each)	Stock
	13544324	STUD	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	13544524	Stud	$32.61	To Order

Photo	Part No	Description	Price (each)	Stock
	13544024	STUD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	13544224	Stud on dowel	$8.91	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	13516624	STUD BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13415400	OIL SEAL DISC FOR BREATHER	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	154507	Ring	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	154550	SCRAPER RING	$25.85	To Order

Photo	Part No	Description	Price (each)	Stock
	154504	SEAL RING 32MM	$7.42	To Order

Photo	Part No	Description	Price (each)	Stock
	154505	SEAL RING 32MM	$13.94	To Order

Photo	Part No	Description	Price (each)	Stock
	154551	Scrapper Ring	$28.87	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	153232	Clutch housing complete	153232 Clutch housing complete	$2,362.33	1
-	177202	Thrust bearing complete	177202 Thrust bearing complete Valid after stock exhaustion / of 160852	$794.34	1
-	194775	Complete Clutch	194775 Complete Clutch Not as spare parts - With / clutch complete	$3,167.69	1
1	194775	Complete Clutch	194775 Complete Clutch	$3,167.69	1
2	194776	CLUTCH PLATE	194776 CLUTCH PLATE	$1,235.15 MSRP: ~~1,304.67~~ (5.3% off)	1
3	14082210	SCREW	14082210 SCREW	$2.90	9
4	238108	WASHER	238108 WASHER	$0.47 MSRP: ~~0.65~~ (27.7% off)	9
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
6	153722	GASKET	153722 GASKET	$7.99 MSRP: ~~15.25~~ (47.6% off)	2
7	148604	THREADED UNION	148604 THREADED UNION	$109.57	2
8	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	2
9	14326150	CAP	14326150 CAP	$0.58 MSRP: ~~1.50~~ (61.3% off)	1
10	104756	Sealing ring	104756 Sealing ring	$10.76	1
11	104747	Sealing ring	104747 Sealing ring	$0.94 MSRP: ~~3.25~~ (71.1% off)	1
12	151945	Clutch shaft	151945 Clutch shaft	$592.73	1
13	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	$1.46	7
14	155694	Front bearing	155694 Front bearing	$138.69	1
15	153905	Union	153905 Union	$54.91	1
16	177202	Thrust bearing complete	177202 Thrust bearing complete	$794.34	1
17	154511	Bush supporting flange	154511 Bush supporting flange	$890.75	1
18	151693	PLATE	151693 PLATE	$39.37 MSRP: ~~95.38~~ (58.7% off)	1
19	10977521	SCREW	10977521 SCREW	$0.18	2
20	127493	WASHER	127493 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
21	153708	Union	153708 Union	$72.55	1
22	153759	Oil connection pipe	153759 Oil connection pipe	$166.02 MSRP: ~~325.35~~ (49% off)	1
23	65928500	THREADED PLUG	65928500 THREADED PLUG	$24.47	2
24	233118	O-RING D.6 X 2.2	233118 O-RING D.6 X 2.2	$9.00	2
25	121814	O-Ring	121814 O-Ring	$17.89	1
26	138680	Sealing ring	138680 Sealing ring	$46.52 MSRP: ~~53.82~~ (13.6% off)	1
27	155207	Pre-Tightening Springs	155207 Pre-Tightening Springs	$9.00	2
28	154508	Sealing Ring 44mm	154508 Sealing Ring 44mm	$43.31 MSRP: ~~54.22~~ (20.1% off)	1
29	152954	BLEED NIPPLE SCREW	152954 BLEED NIPPLE SCREW	$6.37	1
30	147973	Pipe from 2 way union to flexible	147973 Pipe from 2 way union to flexible to flexible	$2.07	1
31	13904970	SPRING PIN	13904970 SPRING PIN	$0.29 MSRP: ~~0.45~~ (35.6% off)	1
32	109789	Extension for breather	109789 Extension for breather	$28.48	1
33	13414691	OIL BREATHER	13414691 OIL BREATHER	$12.72	1
34	124840	Flexible hose for clutch hydraulic control	124840 Flexible hose for clutch hydraulic control control	$408.41	1
35	110810	Pipe securing plate	110810 Pipe securing plate	$1.15 MSRP: ~~1.75~~ (34.3% off)	1
36	153232	Clutch housing complete	153232 Clutch housing complete Not as spare parts / With assembly 153232	$2,362.33	1
37	13544324	STUD	13544324 STUD	$15.66	1
38	13544524	Stud	13544524 Stud	$32.61	3
39	13544024	STUD	13544024 STUD	$0.75 MSRP: ~~2.25~~ (66.7% off)	4
40	13544224	Stud on dowel	13544224 Stud on dowel	$8.91	2
41	102704	ALIGNMENT DOWEL	102704 ALIGNMENT DOWEL	$3.13	2
42	13516624	STUD BOLT	13516624 STUD BOLT	$0.32	4
43	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
44	133989	NUT	133989 NUT	$0.45 MSRP: ~~1.00~~ (55% off)	4
45	13415400	OIL SEAL DISC FOR BREATHER	13415400 OIL SEAL DISC FOR BREATHER	$0.65	1
46	154507	Ring	154507 Ring	$4.18 MSRP: ~~5.05~~ (17.2% off)	1
47	154550	SCRAPER RING	154550 SCRAPER RING	$25.85	1
48	154504	SEAL RING 32MM	154504 SEAL RING 32MM	$7.42	1
49	154505	SEAL RING 32MM	154505 SEAL RING 32MM	$13.94 MSRP: ~~16.86~~ (17.3% off)	1
50	154551	Scrapper Ring	154551 Scrapper Ring	$28.87 MSRP: ~~29.85~~ (3.3% off)	1
