Clutch release control -Not for GD- of Ferrari Ferrari 512 M

View All

Ferrari 512 M - Clutch release control -Not for GD-

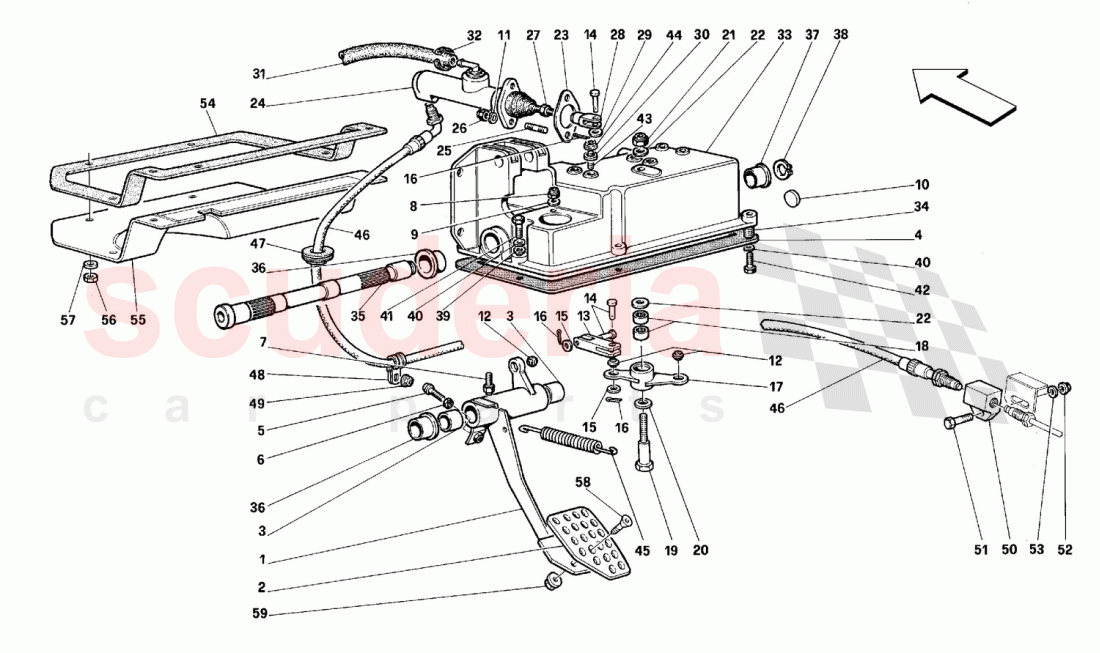

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	163883	Clutch pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163871	CLUTCH PEDAL DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156663	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114825	Stop push rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9162535	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112172	Double fixing fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148821	Relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115430	Roller bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114830	Pin for relay lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112126	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113500	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124469	Spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175211	Clutch master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10007871	FORK FOR BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642701	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155961	Feed pipe for clutch master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155180	Pedal support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124777	Threaded bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	112152	Pin on the pedal support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124687	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124686	Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066676	FLEXIBLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149628	Clutch control tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105369	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148869	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118422	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118421	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	163883	Clutch pedal	163883 Clutch pedal	-	1	Enquire
2	163871	CLUTCH PEDAL DRILLED PLATE	163871 CLUTCH PEDAL DRILLED PLATE	-	1	Enquire
3	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
4	156663	Gasket	156663 Gasket	-	1	Enquire
5	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW	-	1	Enquire
6	16102314	NUT	16102314 NUT	-	1	Enquire
7	114825	Stop push rod	114825 Stop push rod	-	1	Enquire
8	133989	NUT	133989 NUT	-	1	Enquire
9	12601374	WASHER	12601374 WASHER	-	1	Enquire
10	9162535	THREADED PLUG	9162535 THREADED PLUG	-	1	Enquire
11	12601374	WASHER	12601374 WASHER	-	2	Enquire
12	109407	BALL-JOINT	109407 BALL-JOINT	-	3	Enquire
13	112172	Double fixing fork	112172 Double fixing fork	-	1	Enquire
14	10050814	PIN	10050814 PIN	-	3	Enquire
15	84653800	WASHER	84653800 WASHER	-	2	Enquire
16	10734208	SPLIT PIN	10734208 SPLIT PIN	-	3	Enquire
17	148821	Relay lever	148821 Relay lever	-	1	Enquire
18	115430	Roller bearing	115430 Roller bearing	-	2	Enquire
19	114830	Pin for relay lever	114830 Pin for relay lever	-	1	Enquire
20	112126	Washer	112126 Washer	-	1	Enquire
21	148020	NUT	148020 NUT	-	1	Enquire
22	113500	Washer	113500 Washer	-	2	Enquire
23	124469	Spacer	124469 Spacer	-	1	Enquire
24	175211	Clutch master cylinder	175211 Clutch master cylinder	-	1	Enquire
25	13543524	STUD BOLT	13543524 STUD BOLT	-	2	Enquire
26	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
27	16102314	NUT	16102314 NUT	-	1	Enquire
28	10007871	FORK FOR BRAKE LEVER	10007871 FORK FOR BRAKE LEVER	-	1	Enquire
29	12642701	Washer	12642701 Washer	-	1	Enquire
30	12643724	WASHER	12643724 WASHER	-	4	Enquire
31	155961	Feed pipe for clutch master cylinder	155961 Feed pipe for clutch master cylinder cylinder	-	1	Enquire
32	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
33	155180	Pedal support	155180 Pedal support	-	1	Enquire
34	124777	Threaded bush	124777 Threaded bush	-	2	Enquire
35	112152	Pin on the pedal support	112152 Pin on the pedal support	-	1	Enquire
36	124687	Bush	124687 Bush	-	2	Enquire
37	124686	Bush	124686 Bush	-	1	Enquire
38	11066676	FLEXIBLE RING	11066676 FLEXIBLE RING	-	1	Enquire
39	84653800	WASHER	84653800 WASHER	-	3	Enquire
40	127496	WASHER	127496 WASHER	-	5	Enquire
41	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	3	Enquire
42	14306924	SCREW	14306924 SCREW	-	2	Enquire
43	11500124	STUD BOLT	11500124 STUD BOLT motor bracket	-	4	Enquire
44	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
45	104895	SPRING	104895 SPRING	-	1	Enquire
46	149628	Clutch control tube	149628 Clutch control tube	-	1	Enquire
47	105369	CABLE GROMMET	105369 CABLE GROMMET	-	1	Enquire
48	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	1	Enquire
49	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
50	148869	Union	148869 Union	-	1	Enquire
51	231620	SCREW	231620 SCREW	-	1	Enquire
52	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
53	12646604	WASHER	12646604 WASHER	-	1	Enquire
54	118422	Gasket	118422 Gasket	-	1	Enquire
55	118421	Cover	118421 Cover	-	1	Enquire
56	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
57	12643724	WASHER	12643724 WASHER	-	5	Enquire
58	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
59	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
