Rollbar

Ferrari 488 Pista Europe RH

Find Your Part

Ferrari 488 Pista Europe RH - ROLLBAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
750882 COMPLETE ROLL BAR FRAME $5,956.25 To Order
Photo Part No Description Price (each) Stock
783755 COMPL. RH BENCH COVER PANEL Enquire To Order
884816 COMPL. RH BENCH COVER PANEL $333.58 To Order
783782 COMPL. RH BENCH COVER PANEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
783740 COMPL. LH BENCH COVER PANEL Enquire To Order
884814 COMPL. LH BENCH COVER PANEL $333.58 To Order
783743 COMPL. LH BENCH COVER PANEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
803938 RH FLANK COVER PANEL Enquire To Order
884824 RH FLANK COVER PANEL $333.58 To Order
783814 RH FLANK COVER PANEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
803931 LH FLANK COVER PANEL Enquire To Order
884823 LH FLANK COVER PANEL $333.58 To Order
783804 LH FLANK COVER PANEL Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68700800 CLIP $1.00 To Order
14372574 BRACKET $1.28 To Order
Photo Part No Description Price (each) Stock
783877 RH UPPER OUTER PLATE COVER Enquire To Order
884822 RH UPPER OUTER PLATE COVER $224.63 To Order
911166 RH UPPER OUTER PLATE COVER $320.90 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
783863 LH UPPER OUTER PLATE COVER Enquire To Order
884883 LH UPPER OUTER PLATE COVER $224.63 To Order
911165 LH UPPER OUTER PLATE COVER $320.90 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
783870 RH UPPER INNER PLATE COVER Enquire To Order
884821 RH UPPER INNER PLATE COVER $224.63 To Order
911163 RH UPPER INNER PLATE COVER $290.06 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
783835 LH UPPER INNER PLATE COVER Enquire To Order
884820 LH UPPER INNER PLATE COVER $224.63 To Order
911161 LH UPPER INNER PLATE COVER $304.86 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
68700800 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.24 To Order
81591700 SCREW $2.24 To Order
15689801 SCREW $0.08 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
15689801 SCREW $0.08 IN STOCK
Photo Part No Description Price (each) Stock
16287524 SCREW $1.38 IN STOCK
16287524 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
16287524 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 IN STOCK
View All

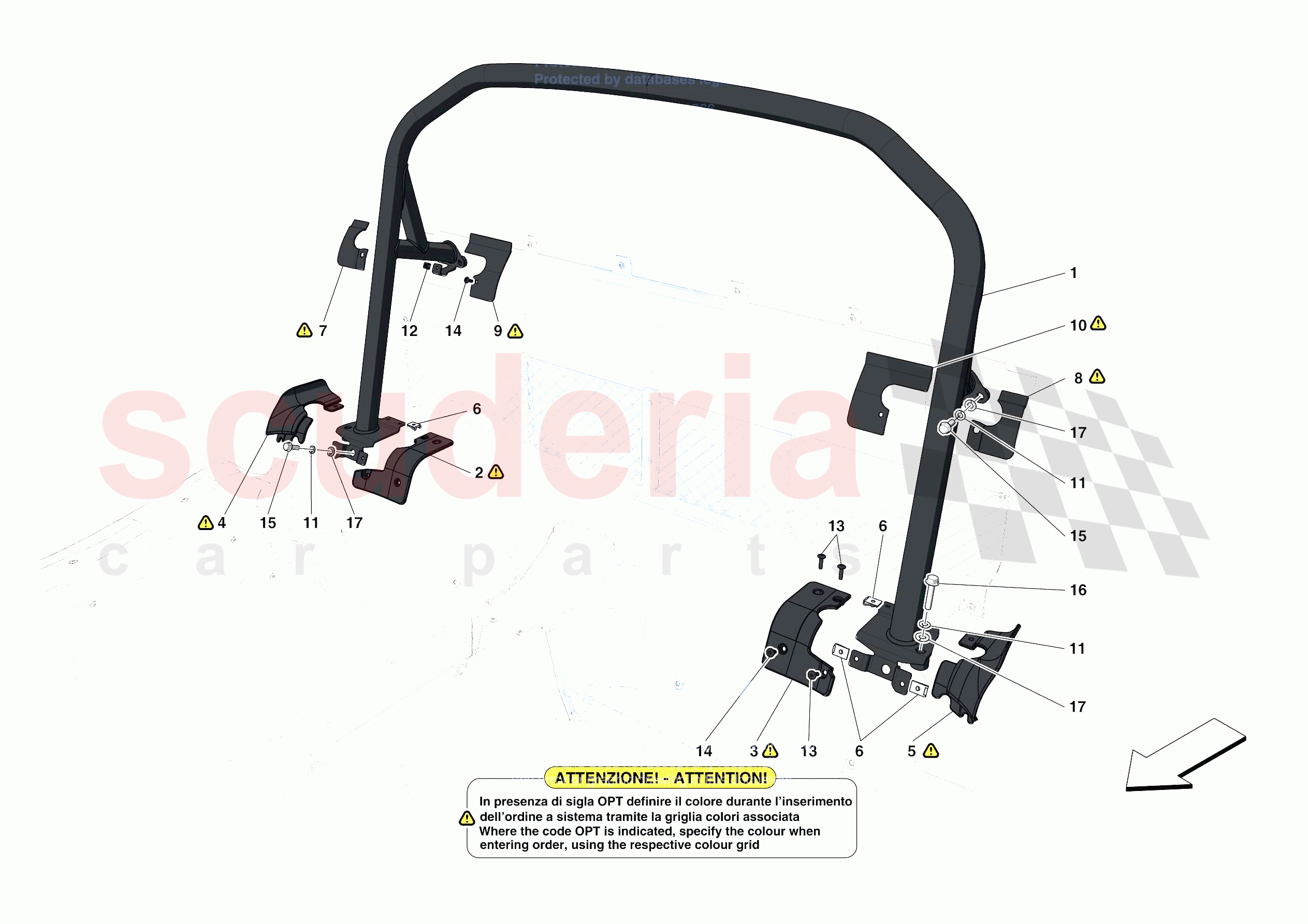

ROLLBAR of Ferrari Ferrari 488 Pista Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 750882
COMPLETE ROLL BAR FRAME
Optional Rollbar 		$5,956.25 1
0002 783755
COMPL. RH BENCH COVER PANEL
Apollo fabric - Optional Rollbar; No longer supplied - Replaced by 884816 		- 1 Enquire
0002 884816
COMPL. RH BENCH COVER PANEL
Apollo fabric - Optional Rollbar 		$333.58 1
0002 783782
COMPL. RH BENCH COVER PANEL
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884817; INTA 		- 1 Enquire
0002 884817
COMPL. RH BENCH COVER PANEL
Alcantara - Optional Rollbar; INTA 		$240.67 1
0002 87630600
COMPL. RH BENCH COVER PANEL
Leather - Optional Rollbar; INTP 		- 1 Enquire
0003 783740
COMPL. LH BENCH COVER PANEL
Apollo fabric - Optional Rollbar; No longer supplied - Replaced by 884814 		- 1 Enquire
0003 884814
COMPL. LH BENCH COVER PANEL
Apollo fabric - Optional Rollbar 		$333.58 1
0003 783743
COMPL. LH BENCH COVER PANEL
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884815; INTA 		- 1 Enquire
0003 884815
COMPL. LH BENCH COVER PANEL
Alcantara - Optional Rollbar; INTA 		$240.67 1
0003 87630900
COMPL. LH BENCH COVER PANEL
Leather - Optional Rollbar; INTP 		- 1 Enquire
0004 803938
RH FLANK COVER PANEL
Apollo fabric - Optional Rollbar; No longer supplied - Replaced by 884824 		- 1 Enquire
0004 884824
RH FLANK COVER PANEL
Apollo fabric - Optional Rollbar 		$333.58 1
0004 783814
RH FLANK COVER PANEL
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884819; INTA 		- 1 Enquire
0004 884819
RH FLANK COVER PANEL
Alcantara - Optional Rollbar; INTA 		$240.67 1
0004 87630000
RH FLANK COVER PANEL
Leather - Optional Rollbar; INTP 		- 1 Enquire
0005 803931
LH FLANK COVER PANEL
Apollo fabric - Optional Rollbar; No longer supplied - Replaced by 884823 		- 1 Enquire
0005 884823
LH FLANK COVER PANEL
Apollo fabric - Optional Rollbar 		$333.58 1
0005 783804
LH FLANK COVER PANEL
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884818; INTA 		- 1 Enquire
0005 884818
LH FLANK COVER PANEL
Alcantara - Optional Rollbar; INTA 		$240.67 1
0005 87630300
LH FLANK COVER PANEL
Leather - Optional Rollbar; INTP 		- 1 Enquire
0006 68700800
CLIP 		$1.00 8
0006 14372574
BRACKET
Optional Rollbar 		$1.28 8
0007 783877
RH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884822; INTA 		- 1 Enquire
0007 884822
RH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$224.63 1
0007 911166
RH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$320.90 1
0007 87632100
RH UPPER OUTER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0007 911174
RH UPPER OUTER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0008 783863
LH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884883; INTA 		- 1 Enquire
0008 884883
LH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$224.63 1
0008 911165
LH UPPER OUTER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$320.90 1
0008 87631800
LH UPPER OUTER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0008 911173
LH UPPER OUTER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0009 783870
RH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884821; INTA 		- 1 Enquire
0009 884821
RH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$224.63 1
0009 911163
RH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$290.06 1
0009 87631500
RH UPPER INNER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0009 911172
RH UPPER INNER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0010 783835
LH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; No longer supplied - Replaced by 884820; INTA 		- 1 Enquire
0010 884820
LH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$224.63 1
0010 911161
LH UPPER INNER PLATE COVER
Alcantara - Optional Rollbar; INTA 		$304.86 1
0010 87631200
LH UPPER INNER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0010 911171
LH UPPER INNER PLATE COVER
Leather - Optional Rollbar; INTP 		- 1 Enquire
0011 127496
WASHER
Optional Rollbar 		$0.06 (80% off) 8
0012 68700800
CLIP 		$1.00 2
0013 81591700
SCREW
M5 X 20 		$2.24 6
0013 81591700
SCREW
M5 X 20 		$2.24 6
0013 15689801
SCREW
D4.2 X 19
IN STOCK 		$0.08 6
0014 85833900
SCREW
Optional Rollbar; M5 X 14
IN STOCK 		$0.36 4
0014 15689801
SCREW
D4.2 X 19
IN STOCK 		$0.08 4
0015 16287524
SCREW
Optional Rollbar; M8 X 40
IN STOCK 		$1.38 2
0015 16287524
SCREW
M8 X 40
IN STOCK 		$1.38 6
0016 16287524
SCREW
M8 X 40
IN STOCK 		$1.38 2
0017 14496624
WASHER D.10.5-21 X 2
Optional Rollbar; D. 10.5-21 X 2
IN STOCK 		$0.06 8
