REAR SHIELDS of Ferrari Ferrari 488 Pista Europe RH

View All

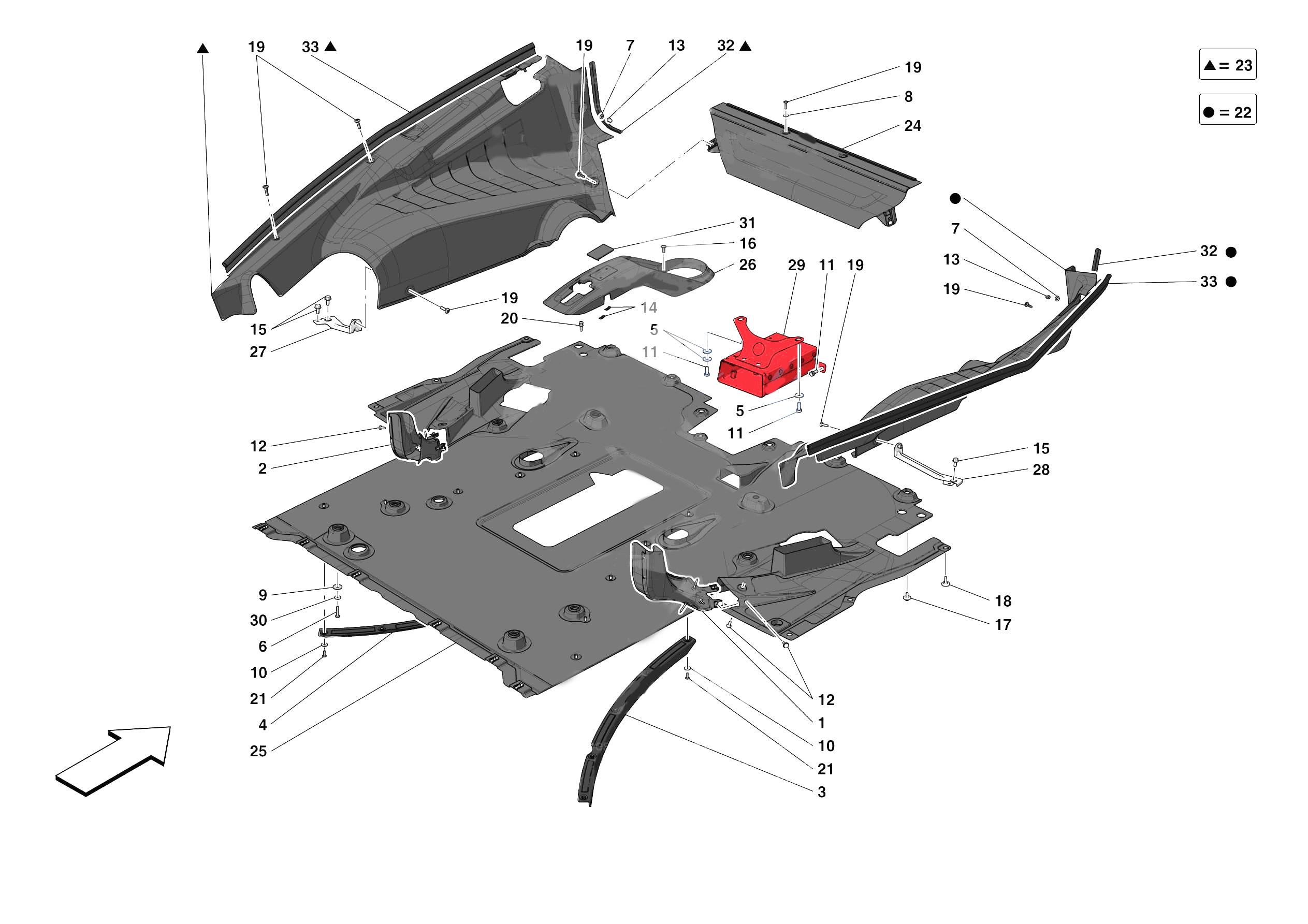

Ferrari 488 Pista Europe RH - REAR SHIELDS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	762216	COMPL. RH ENGINE AIR VENT DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	762226	COMPL. LH ENGINE AIR VENT DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768520	RH REAR LATERAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768518	LH REAR LATERAL DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523401	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13290024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14042177	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768645	TYPE A PLATE FOR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85797600	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782030	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	782010	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	813259	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	782040	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	782017	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order
	813260	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order
	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order
	826052	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	785180	COMPL. REAR UNDERBODY SHIELD	Enquire	To Order
	891487	COMPL. REAR UNDERBODY SHIELD	Enquire	To Order
	785180	COMPL. REAR UNDERBODY SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86921700	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order
	86935100	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order
	70006353	COMPL. CENTRAL COSMETIC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87347300	LOWER LH SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87347400	LOWER RH SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87546300	COMPL. ENGINE BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	844308	SERIAL NUMBER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	825854	FRONT SEAL FOR LATERAL SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86553700	LATERAL SEAL FOR LATERAL SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	762216	COMPL. RH ENGINE AIR VENT DUCT	762216 COMPL. RH ENGINE AIR VENT DUCT	-	1	Enquire
0002	762226	COMPL. LH ENGINE AIR VENT DUCT	762226 COMPL. LH ENGINE AIR VENT DUCT	-	1	Enquire
0003	768520	RH REAR LATERAL DAM	768520 RH REAR LATERAL DAM	-	1	Enquire
0004	768518	LH REAR LATERAL DAM	768518 LH REAR LATERAL DAM	-	1	Enquire
0005	10523401	WASHER	10523401 WASHER	-	4	Enquire
0006	231620	SCREW	231620 SCREW M6 X 20 X 22	-	4	Enquire
0008	62769800	WASHER	62769800 WASHER	-	2	Enquire
0009	12640624	WASHER	12640624 WASHER	-	4	Enquire
0010	12643724	WASHER	12643724 WASHER	-	10	Enquire
0011	13027024	SCREW M6 X 16MM	13027024 SCREW M6 X 16MM M6 X 14	-	4	Enquire
0012	13290024	SCREW	13290024 SCREW M6 X 14	-	6	Enquire
0013	14042177	NUT	14042177 NUT	-	2	Enquire
0014	768645	TYPE A PLATE FOR PIN	768645 TYPE A PLATE FOR PIN	-	2	Enquire
0015	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	4	Enquire
0016	915271	SCREW	915271 SCREW M6 X 15	-	2	Enquire
0017	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	11	Enquire
0018	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	6	Enquire
0019	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 14	-	12	Enquire
0020	85797600	SPECIAL SCREW	85797600 SPECIAL SCREW M5	-	2	Enquire
0021	85833700	SCREW	85833700 SCREW M5 X 16	-	10	Enquire
0022	782030	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	782030 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	-	1	Enquire
0022	782010	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	782010 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0022	813259	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	813259 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine subframe	-	1	Enquire
0022	70006279	COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD	70006279 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD Engine comp. shields in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0023	782040	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	782040 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	-	1	Enquire
0023	782017	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	782017 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0023	813260	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	813260 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Naked weave carbon engine subframe	-	1	Enquire
0023	70006280	COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD	70006280 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD Engine comp. shields in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0024	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	907054 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	-	1	Enquire
0024	907054	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	907054 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	-	1	Enquire
0024	826052	COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD	826052 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD Naked weave carbon engine comp. shields	-	1	Enquire
0024	70006352	COMPL. UNDERSCREEN COSMETIC SHIELD	70006352 COMPL. UNDERSCREEN COSMETIC SHIELD Engine comp. shields in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0025	785180	COMPL. REAR UNDERBODY SHIELD	785180 COMPL. REAR UNDERBODY SHIELD Applicable for Korea	-	1	Enquire
0025	891487	COMPL. REAR UNDERBODY SHIELD	891487 COMPL. REAR UNDERBODY SHIELD Applicable for Korea; No longer supplied - Replaced by 785180	-	1	Enquire
0025	785180	COMPL. REAR UNDERBODY SHIELD	785180 COMPL. REAR UNDERBODY SHIELD	-	1	Enquire
0026	86921700	COMPL. CENTRAL COSMETIC SHIELD	86921700 COMPL. CENTRAL COSMETIC SHIELD	-	1	Enquire
0026	86935100	COMPL. CENTRAL COSMETIC SHIELD	86935100 COMPL. CENTRAL COSMETIC SHIELD Naked weave carbon engine comp. shields; Carbon	-	1	Enquire
0026	70006353	COMPL. CENTRAL COSMETIC SHIELD	70006353 COMPL. CENTRAL COSMETIC SHIELD Engine comp. shields in coloured naked weave carbon - CECM - CECM for colour and finish selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0027	87347300	LOWER LH SHIELD BRACKET	87347300 LOWER LH SHIELD BRACKET	-	1	Enquire
0028	87347400	LOWER RH SHIELD BRACKET	87347400 LOWER RH SHIELD BRACKET	-	1	Enquire
0029	87546300	COMPL. ENGINE BUFFER	87546300 COMPL. ENGINE BUFFER	-	1	Enquire
0030	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
0031	844308	SERIAL NUMBER PLATE	844308 SERIAL NUMBER PLATE	-	1	Enquire
0032	825854	FRONT SEAL FOR LATERAL SHIELD	825854 FRONT SEAL FOR LATERAL SHIELD	-	2	Enquire
0033	86553700	LATERAL SEAL FOR LATERAL SHIELD	86553700 LATERAL SEAL FOR LATERAL SHIELD	-	2	Enquire
