Name: DOOR SEALS
Rating: 4.4 (1 reviews)

View All

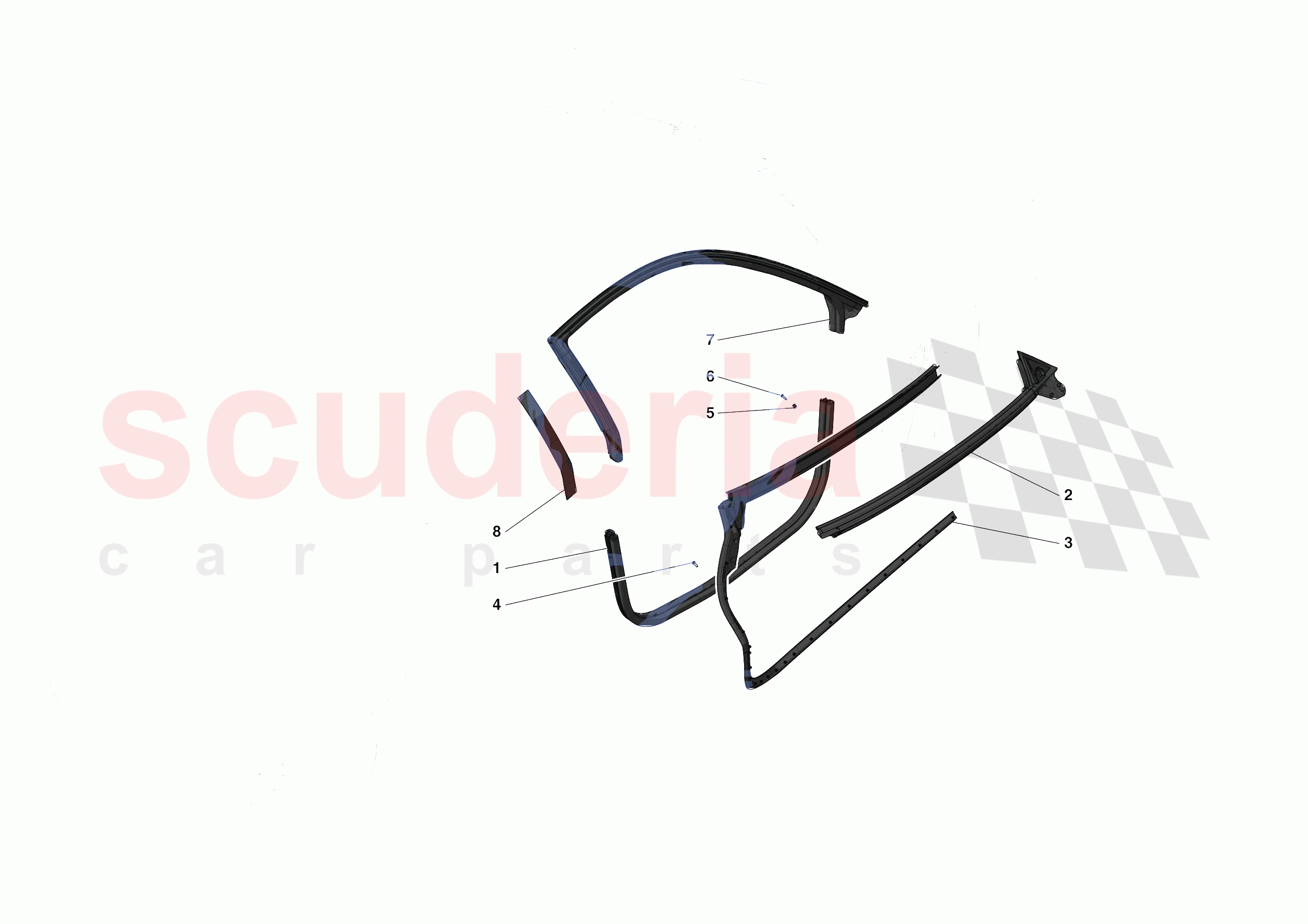

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83987400	LOWER DOOR PERIMETER SEAL	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.16	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	815292	ADHESIVE STRIP	$7.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	83987400	LOWER DOOR PERIMETER SEAL	83987400 LOWER DOOR PERIMETER SEAL	$158.84 MSRP: ~~225.00~~ (29.4% off)	2
0002	86742900	RH DOOR OUTER PERIMETER SEAL	86742900 RH DOOR OUTER PERIMETER SEAL	$357.61	1
0002	86742800	LH DOOR OUTER PERIMETER SEAL	86742800 LH DOOR OUTER PERIMETER SEAL	$357.61	1
0003	86743100	RH DOOR INNER PERIMETER SEAL	86743100 RH DOOR INNER PERIMETER SEAL	$410.60	1
0003	86743000	LH DOOR INNER PERIMETER SEAL	86743000 LH DOOR INNER PERIMETER SEAL	$410.60	1
0004	88822200	SCREW	88822200 SCREW M4 X 15	$0.70	2
0005	14115885	BLOCK	14115885 BLOCK	$0.16	16
0006	15689801	SCREW	15689801 SCREW	$0.08	16
0006	15689801	SCREW	15689801 SCREW D4.2 X 19	$0.08	16
0007	86743200	RH DOOR PERIMETER SEAL	86743200 RH DOOR PERIMETER SEAL Applies until depletion	$703.45	1
0007	770647	RH DOOR PERIMETER SEAL	770647 RH DOOR PERIMETER SEAL Applicable after depletion of 86743200	$913.94	1
0007	86743300	LH DOOR PERIMETER SEAL	86743300 LH DOOR PERIMETER SEAL Applies until depletion	$602.58	1
0007	770646	LH DOOR PERIMETER SEAL	770646 LH DOOR PERIMETER SEAL Applicable after depletion of 86743300	$913.94	1
0008	815292	ADHESIVE STRIP	815292 ADHESIVE STRIP	$7.07	2
