TIMING SYSTEM - TAPPETS of Ferrari Ferrari 488 GTB

View All

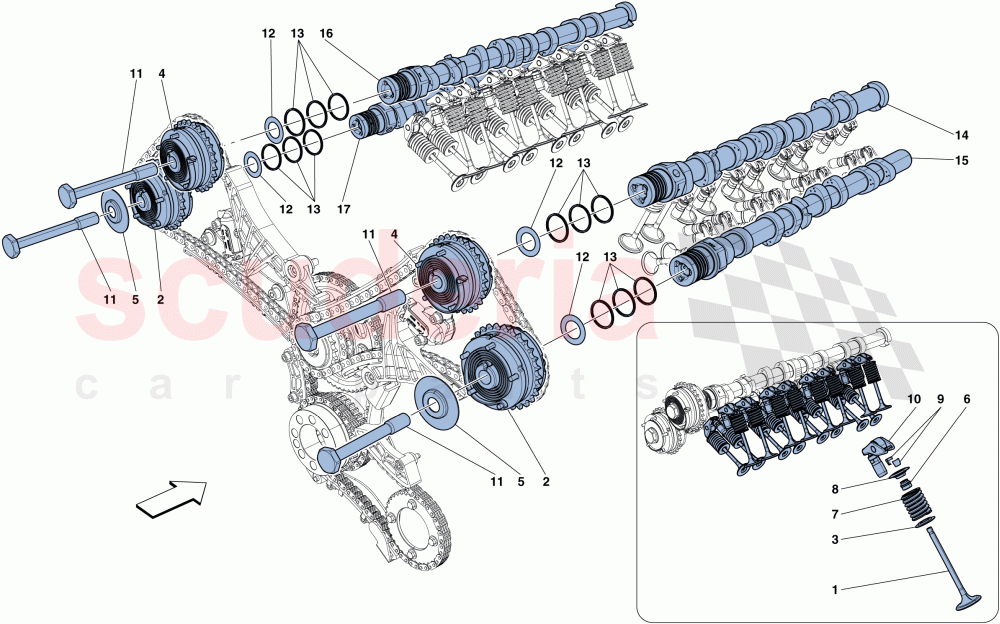

Ferrari 488 GTB - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314857	EXHAUST VALVE	Enquire	To Order
	301303	EXHAUST VALVE	Enquire	To Order
	314856	INTAKE VALVE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287551	LOWER EXHAUST VALVE SPRING CAP	Enquire	To Order
	287553	LOWER INTAKE VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287554	UPPER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287708	SCREW M14 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317840	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317842	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317841	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317843	LH EXHAUST CAMSHAFT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	314857	EXHAUST VALVE	314857 EXHAUST VALVE Applicable from engine No. 355490	-	16	Enquire
1	301303	EXHAUST VALVE	301303 EXHAUST VALVE Applicable up to engine No. 355489	-	16	Enquire
1	314856	INTAKE VALVE	314856 INTAKE VALVE Applicable from engine No. 355490	-	16	Enquire
1	314856	INTAKE VALVE	314856 INTAKE VALVE Applicable up to engine No. 355489	-	16	Enquire
2	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	-	2	Enquire
3	287551	LOWER EXHAUST VALVE SPRING CAP	287551 LOWER EXHAUST VALVE SPRING CAP	-	16	Enquire
3	287553	LOWER INTAKE VALVE SPRING CAP	287553 LOWER INTAKE VALVE SPRING CAP	-	16	Enquire
4	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	-	2	Enquire
5	296310	SPACER	296310 SPACER	-	2	Enquire
6	221473	OIL SEAL	221473 OIL SEAL	-	32	Enquire
8	287554	UPPER VALVE SPRING CAP	287554 UPPER VALVE SPRING CAP	-	32	Enquire
9	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	64	Enquire
11	287708	SCREW M14 X 1.5	287708 SCREW M14 X 1.5	-	4	Enquire
12	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	-	4	Enquire
13	246965	O-RING	246965 O-RING	-	12	Enquire
14	317840	RH INTAKE CAMSHAFT	317840 RH INTAKE CAMSHAFT	-	1	Enquire
15	317842	RH EXHAUST CAMSHAFT	317842 RH EXHAUST CAMSHAFT	-	1	Enquire
16	317841	LH INTAKE CAMSHAFT	317841 LH INTAKE CAMSHAFT	-	1	Enquire
17	317843	LH EXHAUST CAMSHAFT	317843 LH EXHAUST CAMSHAFT	-	1	Enquire
