CRANKSHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 488 GTB

View All

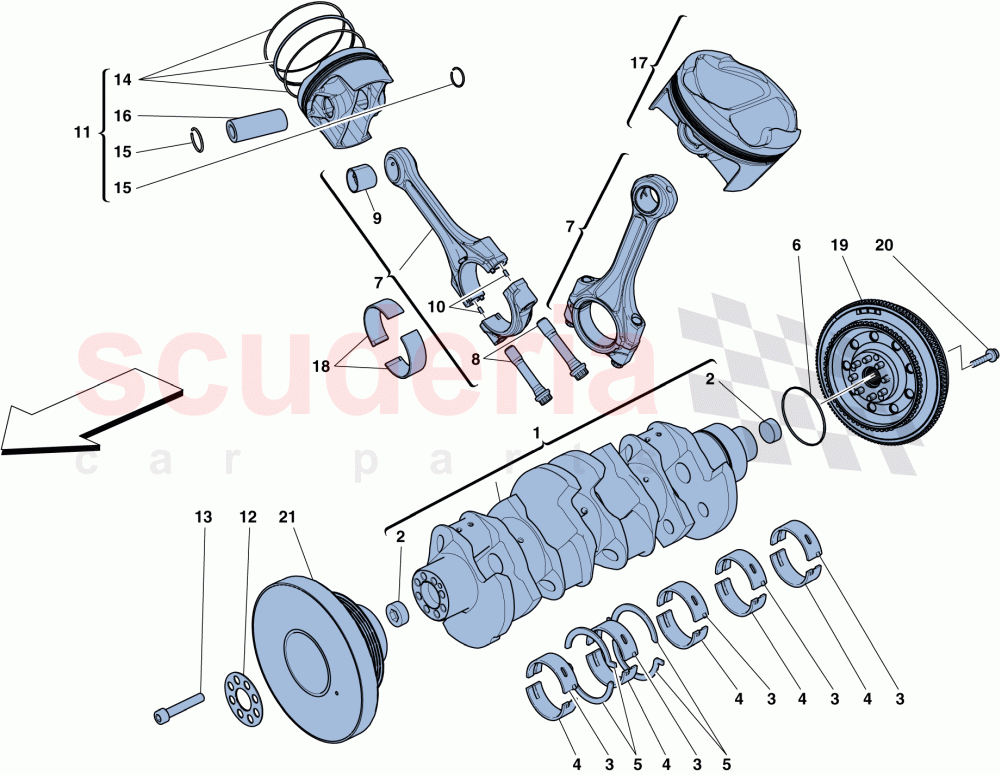

Ferrari 488 GTB - CRANKSHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314109	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309243	UPPER HALF MAIN BEARING	Enquire	To Order
	309242	UPPER HALF MAIN BEARING	Enquire	To Order
	271409	UPPER HALF MAIN BEARING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	309245	LOWER HALF MAIN BEARING	Enquire	To Order
	309244	LOWER HALF MAIN BEARING	Enquire	IN STOCK
	271414	LOWER HALF MAIN BEARING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	271589	CRANKSHAFT BEARING SHIM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259917	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304333	COMPL. CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270248	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301753	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296268	COMPL. RH PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271609	FLYWHEEL WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	322910	COMPL. PISTON RING SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270275	STOP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270274	PISTON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296269	COMPL. LH PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312694	CONNECTING ROD HALF-BEARING	Enquire	To Order
	312693	CONNECTING ROD HALF-BEARING	Enquire	To Order
	312692	CONNECTING ROD HALF-BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312949	ENGINE FLYWHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328629	SCREW M10 X 1.25	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	314109	CRANKSHAFT	314109 CRANKSHAFT	-	1	Enquire
2	176396	THREADED PLUG	176396 THREADED PLUG	-	2	Enquire
3	309243	UPPER HALF MAIN BEARING	309243 UPPER HALF MAIN BEARING Pink	-	5	Enquire
3	309242	UPPER HALF MAIN BEARING	309242 UPPER HALF MAIN BEARING Brown	-	5	Enquire
3	271409	UPPER HALF MAIN BEARING	271409 UPPER HALF MAIN BEARING Blue	-	5	Enquire
3	271408	UPPER HALF MAIN BEARING	271408 UPPER HALF MAIN BEARING Yellow	-	5	Enquire
3	271406	UPPER HALF MAIN BEARING	271406 UPPER HALF MAIN BEARING Green	-	5	Enquire
4	309245	LOWER HALF MAIN BEARING	309245 LOWER HALF MAIN BEARING Pink	-	5	Enquire
4	309244	LOWER HALF MAIN BEARING IN STOCK	309244 LOWER HALF MAIN BEARING Brown IN STOCK	-	5	Enquire
4	271414	LOWER HALF MAIN BEARING	271414 LOWER HALF MAIN BEARING Blue	-	5	Enquire
4	271413	LOWER HALF MAIN BEARING	271413 LOWER HALF MAIN BEARING Yellow	-	5	Enquire
4	271412	LOWER HALF MAIN BEARING	271412 LOWER HALF MAIN BEARING Green	-	5	Enquire
5	271589	CRANKSHAFT BEARING SHIM IN STOCK	271589 CRANKSHAFT BEARING SHIM IN STOCK	-	4	Enquire
6	259917	O-RING IN STOCK	259917 O-RING IN STOCK	-	1	Enquire
7	304333	COMPL. CONNECTING ROD	304333 COMPL. CONNECTING ROD	-	8	Enquire
8	270248	SCREW	270248 SCREW	-	16	Enquire
9	301753	BUSH	301753 BUSH	-	8	Enquire
10	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	-	16	Enquire
11	296268	COMPL. RH PISTON	296268 COMPL. RH PISTON	-	4	Enquire
12	271609	FLYWHEEL WASHER IN STOCK	271609 FLYWHEEL WASHER IN STOCK	-	1	Enquire
13	14308074	ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 IN STOCK	14308074 ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 IN STOCK	-	8	Enquire
14	322910	COMPL. PISTON RING SET	322910 COMPL. PISTON RING SET	-	8	Enquire
15	270275	STOP RING	270275 STOP RING Applicable until depletion	-	16	Enquire
16	270274	PISTON PIN	270274 PISTON PIN No longer supplied	-	8	Enquire
17	296269	COMPL. LH PISTON	296269 COMPL. LH PISTON	-	4	Enquire
18	312694	CONNECTING ROD HALF-BEARING	312694 CONNECTING ROD HALF-BEARING Pink	-	16	Enquire
18	312693	CONNECTING ROD HALF-BEARING	312693 CONNECTING ROD HALF-BEARING Red	-	16	Enquire
18	312692	CONNECTING ROD HALF-BEARING	312692 CONNECTING ROD HALF-BEARING Blue	-	16	Enquire
19	312949	ENGINE FLYWHEEL	312949 ENGINE FLYWHEEL	-	1	Enquire
20	328629	SCREW M10 X 1.25 IN STOCK	328629 SCREW M10 X 1.25 IN STOCK	-	8	Enquire
