RIGHT HAND CYLINDER HEAD of Ferrari Ferrari 488 GTB

View All

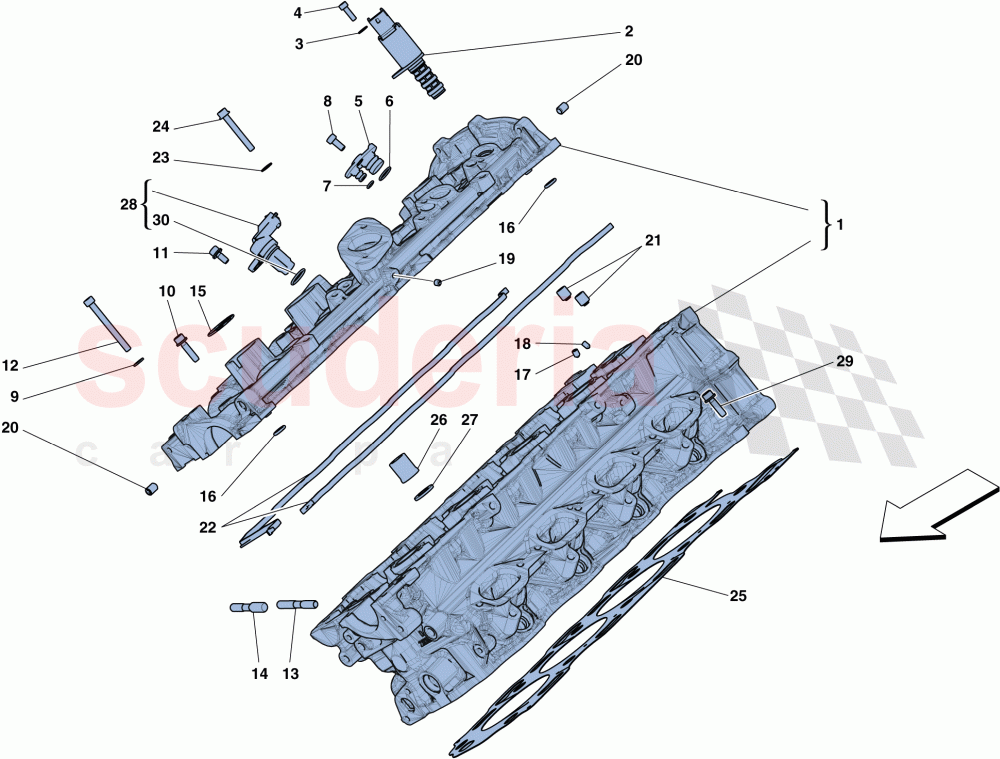

Ferrari 488 GTB - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322084	RH CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	806089	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14303821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306320	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166657	O-Ring D.29.87	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226414	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	277903	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342272	CHECK VALVE	Enquire	IN STOCK
	200458	NON RETURN VALVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	673009080	RH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296759	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	319511	RH HEAD-CRANKCASE GASKET	Enquire	IN STOCK
	278645	RH HEAD-CRANKCASE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	849672	TIMING SENSOR SEAL	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	322084	RH CYLINDER HEAD	322084 RH CYLINDER HEAD	-	1	Enquire
2	801187	OIL PRESSURE REGULATOR VALVE IN STOCK	801187 OIL PRESSURE REGULATOR VALVE IN STOCK	-	2	Enquire
3	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	-	2	Enquire
4	14304124	SCREW	14304124 SCREW	-	2	Enquire
5	806089	PLUG	806089 PLUG	-	2	Enquire
6	14453281	O-RING IN STOCK	14453281 O-RING Also comes with engine gasket set IN STOCK	-	4	Enquire
7	14452781	GASKET IN STOCK	14452781 GASKET Also comes with engine gasket set IN STOCK	-	4	Enquire
8	13026924	SCREW	13026924 SCREW	-	2	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
10	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	-	1	Enquire
11	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18 IN STOCK	-	2	Enquire
12	14303821	SCREW	14303821 SCREW	-	1	Enquire
13	307168	STUD BOLT	307168 STUD BOLT	-	6	Enquire
14	306320	STUD BOLT	306320 STUD BOLT	-	4	Enquire
15	166657	O-Ring D.29.87 IN STOCK	166657 O-Ring D.29.87 IN STOCK	-	4	Enquire
16	127816	O-RING IN STOCK	127816 O-RING IN STOCK	-	2	Enquire
17	256827	GRUB SCREW	256827 GRUB SCREW	-	1	Enquire
18	226414	GRUB SCREW	226414 GRUB SCREW	-	1	Enquire
19	199760	THREADED PLUG IN STOCK	199760 THREADED PLUG IN STOCK	-	1	Enquire
20	277903	PLUG	277903 PLUG	-	2	Enquire
21	342272	CHECK VALVE IN STOCK	342272 CHECK VALVE Applicable from engine No. 405809 IN STOCK	-	2	Enquire

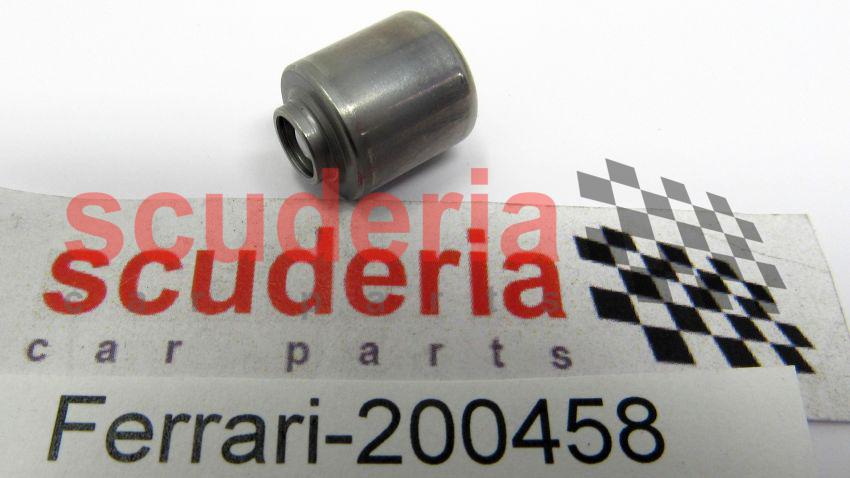

21	200458	NON RETURN VALVE IN STOCK	200458 NON RETURN VALVE Applicable up to engine No. 405808 IN STOCK	-	2	Enquire
22	673009080	RH HEAD COVER GASKET	673009080 RH HEAD COVER GASKET Also comes with engine gasket set; Replaced by Part Nos. 339986 and 339987; No longer supplied	-	1	Enquire
23	296075	WASHER 13 X 5.8 IN STOCK	296075 WASHER 13 X 5.8 IN STOCK	-	30	Enquire
24	296759	SCREW IN STOCK	296759 SCREW IN STOCK	-	29	Enquire
25	319511	RH HEAD-CRANKCASE GASKET IN STOCK	319511 RH HEAD-CRANKCASE GASKET Applicable from engine No. 297221 IN STOCK	-	1	Enquire
25	278645	RH HEAD-CRANKCASE GASKET	278645 RH HEAD-CRANKCASE GASKET Applicable up to engine No. 297220	-	1	Enquire
26	271125	NUT	271125 NUT	-	10	Enquire
27	271129	WASHER IN STOCK	271129 WASHER IN STOCK	-	10	Enquire
28	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
29	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22 IN STOCK	-	1	Enquire
30	849672	TIMING SENSOR SEAL IN STOCK	849672 TIMING SENSOR SEAL IN STOCK	-	2	Enquire
