Ferrari 458 Spider - BATTERY

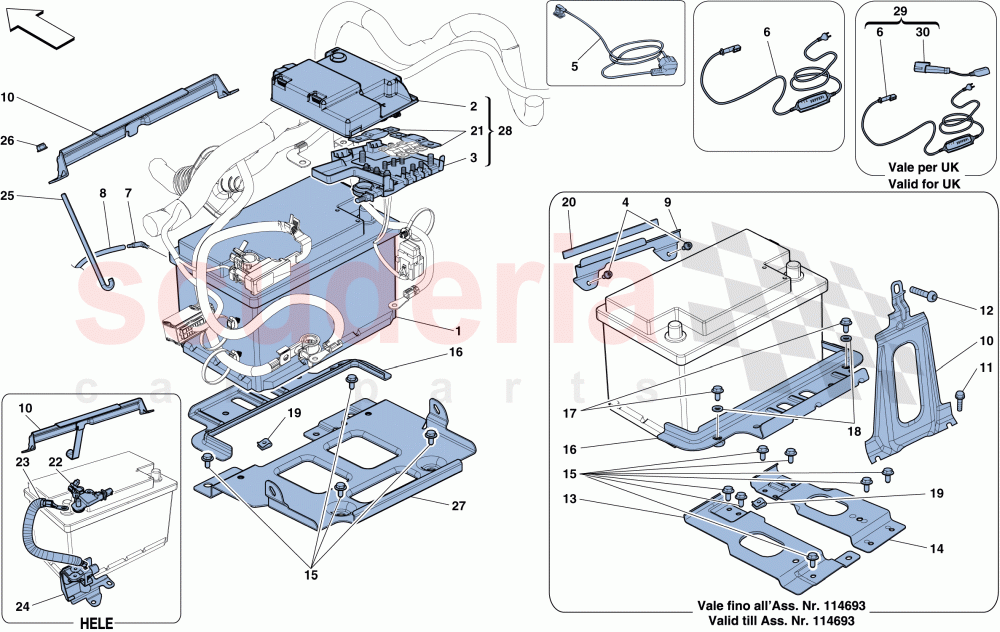

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	251161	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277404	BATTERY ECU	Enquire	To Order
	291683	COMPL. BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	263383	POWER CABLE	Enquire	To Order
	258698	POWER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803881	BATTERY CHARGER KIT	Enquire	To Order
	803880	BATTERY CHARGER KIT	Enquire	To Order
	803883	BATTERY CHARGER KIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	199631	UNION FOR BATTERY BLEEDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262706	BATTERY VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82958100	RETAINER LIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85225800	BRACKET	Enquire	To Order
	85280000	BATTERY RETAINER BRACKET	Enquire	To Order
	83834900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82500400	LH BATTERY BRACKET	Enquire	To Order
	84397900	LH BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83130400	RH BATTERY BRACKET	Enquire	To Order
	82500300	RH BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82514100	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67681200	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278366	FUSE VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308719	BATTERY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	273184	GROUND CABLES FROM SENSOR TO POLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275963	S&S NEGATIVE POLE ASSEMBLY	Enquire	To Order
	272083	S&S NEGATIVE POLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85235500	BATTERY FASTENER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85225200	COMPL. BATTERY BRACKET	Enquire	To Order
	85241800	COMPL. BATTERY BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263385	BATTERY ECU	Enquire	To Order
	301911	BATTERY ECU	Enquire	To Order
	277403	COMPL. BATTERY ECU	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	95998029	WALL ADAPTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	251161	COVER	251161 COVER After depletion order compl. ref. 28; Not for GD; Applicable until depletion	-	1	Enquire
3	277404	BATTERY ECU	277404 BATTERY ECU After depletion order compl. ref. 28; Not for GD; Applicable up to Ass. No. 117281; Applicable until depletion	-	1	Enquire
3	291683	COMPL. BATTERY ECU	291683 COMPL. BATTERY ECU After depletion order compl. ref. 28; Not for GD; Applicable from Ass. No. 117282; Applicable until depletion	-	1	Enquire
4	11566227	SCREW ARRIVING SOON	11566227 SCREW Applicable up to Ass. No. 114693 ARRIVING SOON	-	2	Enquire
5	263383	POWER CABLE	263383 POWER CABLE Applicable for GD	-	1	Enquire
5	258698	POWER CABLE	258698 POWER CABLE Not for GD	-	1	Enquire
6	803881	BATTERY CHARGER KIT	803881 BATTERY CHARGER KIT Applicable for AUS	-	1	Enquire
6	803880	BATTERY CHARGER KIT	803880 BATTERY CHARGER KIT Applicable for Taiwan; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
6	803883	BATTERY CHARGER KIT	803883 BATTERY CHARGER KIT Applicable for J	-	1	Enquire
6	70002820	BATTERY CHARGER KIT	70002820 BATTERY CHARGER KIT Not for Taiwan; Not for AUS, USA, CDN, J, USA LIGHT	-	1	Enquire
7	199631	UNION FOR BATTERY BLEEDER PIPE	199631 UNION FOR BATTERY BLEEDER PIPE	-	1	Enquire
8	262706	BATTERY VENT PIPE	262706 BATTERY VENT PIPE	-	1	Enquire
9	82958100	RETAINER LIP	82958100 RETAINER LIP Applicable up to Ass. No. 114693	-	1	Enquire
10	85225800	BRACKET	85225800 BRACKET Applicable from Ass. No. 114694	-	1	Enquire
10	85280000	BATTERY RETAINER BRACKET	85280000 BATTERY RETAINER BRACKET Applicable for HELE; Applicable from Ass. No. 114694	-	1	Enquire
10	83834900	BRACKET	83834900 BRACKET Applicable up to Ass. No. 114693	-	1	Enquire
11	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14; Applicable up to Ass. No. 114693	-	2	Enquire
12	85833700	SCREW	85833700 SCREW	-	1	Enquire
13	82500400	LH BATTERY BRACKET	82500400 LH BATTERY BRACKET Not for GD; Applicable up to Ass. No. 114693	-	1	Enquire
13	84397900	LH BATTERY BRACKET	84397900 LH BATTERY BRACKET Applicable for GD; Applicable up to Ass. No. 114693	-	1	Enquire
14	83130400	RH BATTERY BRACKET	83130400 RH BATTERY BRACKET Applicable for GD; Applicable up to Ass. No. 114693	-	1	Enquire
14	82500300	RH BATTERY BRACKET	82500300 RH BATTERY BRACKET Not for GD; Applicable up to Ass. No. 114693	-	1	Enquire
15	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14; Applicable up to Ass. No. 114693	-	7	Enquire
15	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14; Applicable from Ass. No. 114694	-	4	Enquire
16	82514100	RETAINER BRACKET	82514100 RETAINER BRACKET	-	1	Enquire
17	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14; Applicable up to Ass. No. 114693	-	2	Enquire
18	12643724	WASHER	12643724 WASHER No longer supplied	-	2	Enquire
19	62766300	CLIP	62766300 CLIP	-	1	Enquire
20	67681200	GASKET	67681200 GASKET Applicable up to Ass. No. 114693	-	1	Enquire
21	278366	FUSE VALVE	278366 FUSE VALVE	-	2	Enquire
22	308719	BATTERY SENSOR	308719 BATTERY SENSOR Applicable for HELE	-	1	Enquire
23	273184	GROUND CABLES FROM SENSOR TO POLE	273184 GROUND CABLES FROM SENSOR TO POLE Applicable for HELE	-	1	Enquire
24	275963	S&S NEGATIVE POLE ASSEMBLY	275963 S&S NEGATIVE POLE ASSEMBLY Applicable for HELE; Applicable for GD	-	1	Enquire
24	272083	S&S NEGATIVE POLE ASSEMBLY	272083 S&S NEGATIVE POLE ASSEMBLY Applicable for HELE; Not for GD	-	1	Enquire
25	85235500	BATTERY FASTENER TIE-ROD	85235500 BATTERY FASTENER TIE-ROD Applicable from Ass. No. 114694	-	2	Enquire
26	14059211	NUT	14059211 NUT Applicable from Ass. No. 114694	-	2	Enquire
27	85225200	COMPL. BATTERY BRACKET	85225200 COMPL. BATTERY BRACKET Not for GD; Applicable from Ass. No. 114694	-	1	Enquire
27	85241800	COMPL. BATTERY BRACKET	85241800 COMPL. BATTERY BRACKET Applicable for GD; Applicable from Ass. No. 114694	-	1	Enquire
28	263385	BATTERY ECU	263385 BATTERY ECU Applicable for GD; Applicable up to Ass. No. 117281	-	1	Enquire
28	301911	BATTERY ECU	301911 BATTERY ECU Applicable for GD; Applicable from Ass. No. 117282	-	1	Enquire
28	277403	COMPL. BATTERY ECU	277403 COMPL. BATTERY ECU Not for GD; Applicable up to Ass. No. 117281	-	1	Enquire
28	291683	COMPL. BATTERY ECU	291683 COMPL. BATTERY ECU Not for GD; Applicable from Ass. No. 117282	-	1	Enquire
30	95998029	WALL ADAPTER	95998029 WALL ADAPTER Applicable for UK	-	1	Enquire
