MAIN WIRING HARNESSES of Ferrari Ferrari 458 Spider

View All

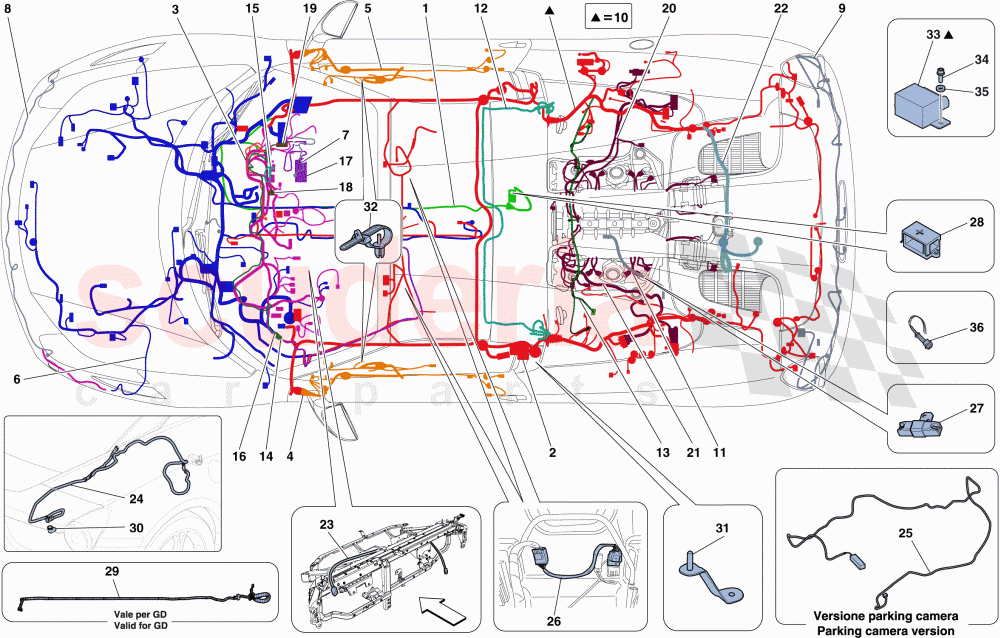

Ferrari 458 Spider - MAIN WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	277406	BATTERY POSITIVE WIRING HARNESS	Enquire	To Order
	261317	BATTERY POSITIVE WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282422	REAR CABLE	Enquire	To Order
	273967	REAR CABLE	Enquire	To Order
	285687	REAR CABLE	Enquire	To Order

...and 24 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	271238	DASHBOARD CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285081	FRONT CABLE	Enquire	To Order
	288068	FRONT CABLE	Enquire	To Order
	285073	FRONT CABLE	Enquire	To Order

...and 24 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	258550	PASSENGER AIRBAG CABLES	Enquire	To Order
	262875	PASSENGER AIRBAG CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261306	REAR BUMPER CABLE	Enquire	To Order
	261308	REAR BUMPER CABLE	Enquire	To Order
	261305	REAR BUMPER CABLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	304061	VEHICLE LIFT CABLE	Enquire	To Order
	282666	VEHICLE LIFT CABLE	Enquire	To Order
	304060	VEHICLE LIFT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255982	CHASSIS GROUND CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253015	RADIO ANTENNA CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245789	PHANTOM POWER MICROPHONE WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277202	PHANTOM BOX RADIO AM/FM CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254757	USB CABLE FOR NIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

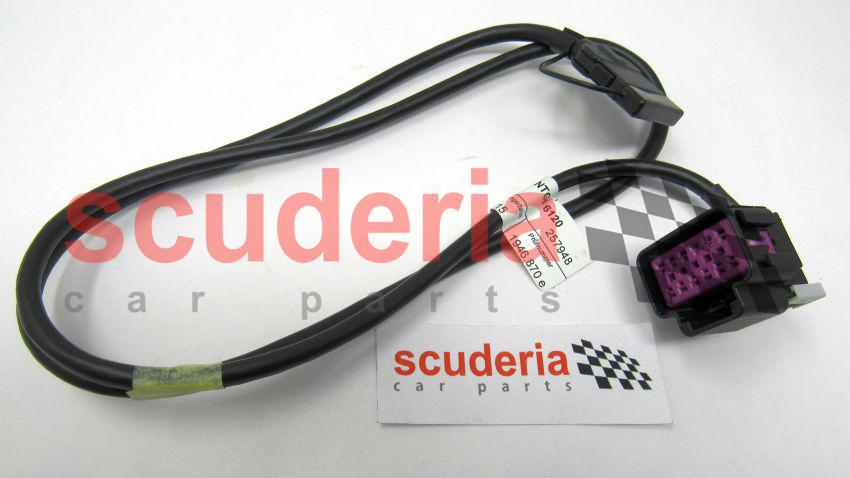

	257948	I-Pod Adapter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252992	BECKER NIT CANBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286319	RH INJECTION WIRING HARNESS	Enquire	To Order
	286318	RH INJECTION WIRING HARNESS	Enquire	To Order
	278892	RH INJECTION WIRING HARNESS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	272674	LH INJECTION WIRING HARNESS	Enquire	To Order
	284665	LH INJECTION WIRING HARNESS	Enquire	To Order
	284665	LH INJECTION WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265156	DCT GEARBOX WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257860	VIDEO CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262817	CABLE FROM ALTERNATOR TO STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266805	WIRING HARNESS FOR MECHANICAL SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275887	RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265717	CABLE FROM FUSE TO TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154803	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282796	LH BRACKET	Enquire	To Order
	282795	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279762	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251997	RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497704	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312774	CHARGING WIRING HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	277406	BATTERY POSITIVE WIRING HARNESS	277406 BATTERY POSITIVE WIRING HARNESS Applicable for GD	-	1	Enquire
1	261317	BATTERY POSITIVE WIRING HARNESS	261317 BATTERY POSITIVE WIRING HARNESS Not for GD	-	1	Enquire
2	282422	REAR CABLE	282422 REAR CABLE Full house; High power HI-FI; Applicable for HELE; Applicable for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273967	REAR CABLE	273967 REAR CABLE Full house; High power HI-FI; Applicable for HELE; Applicable for GD; Applicable up to Ass. No. 102818; No longer supplied	-	1	Enquire
2	285687	REAR CABLE	285687 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282415	REAR CABLE	282415 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273684	REAR CABLE	273684 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
2	282424	REAR CABLE	282424 REAR CABLE Full house; High power HI-FI; Not for HELE; Applicable for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273969	REAR CABLE	273969 REAR CABLE Full house; High power HI-FI; Not for HELE; Applicable for GD; Applicable up to Ass. No. 102818; No longer supplied	-	1	Enquire
2	285690	REAR CABLE	285690 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Not for HELE; Not for GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282418	REAR CABLE	282418 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Not for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273687	REAR CABLE	273687 REAR CABLE Full opt; For front and rear parking sensors; High power Hi-Fi; Applicable for parking camera; TPMS + FLAT; electrochromic mirrors; lift system; Not for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
2	282421	REAR CABLE	282421 REAR CABLE Full house; Applicable for base radio; Applicable for HELE; Applicable for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273965	REAR CABLE	273965 REAR CABLE Full house; Applicable for base radio; Applicable for HELE; Applicable for GD; Applicable up to Ass. No. 102818; No longer supplied	-	1	Enquire
2	285686	REAR CABLE	285686 REAR CABLE Full opt; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282414	REAR CABLE	282414 REAR CABLE Full opt; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273683	REAR CABLE	273683 REAR CABLE Full opt; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Applicable for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
2	282423	REAR CABLE	282423 REAR CABLE Full house; Applicable for base radio; Not for HELE; Applicable for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273968	REAR CABLE	273968 REAR CABLE Full house; Applicable for base radio; Not for HELE; Applicable for GD; Applicable up to Ass. No. 102818; No longer supplied	-	1	Enquire
2	285697	REAR CABLE	285697 REAR CABLE Base; Not for front and rear parking sensors; Standard radio; Not for parking camera; Not for TPMS + FLAT; Applicable for manual seats, mechanical steering column and electrochromic mirrors; Not for lift system and HELE; Not for USA, CDN, J, GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	285689	REAR CABLE	285689 REAR CABLE Full opt; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Not for HELE; Not for GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282417	REAR CABLE	282417 REAR CABLE Full opt.; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Not for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273686	REAR CABLE	273686 REAR CABLE Full opt; For front and rear parking sensors; Applicable for standard radio; Applicable for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Applicable for lift system; Not for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
2	285685	REAR CABLE	285685 REAR CABLE Base; Not for front and rear parking sensors; Applicable for standard radio; Not for parking camera; Applicable for TPMS + FLAT; Not for electrochromic mirrors; Not for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282413	REAR CABLE	282413 REAR CABLE Base; Not for front and rear parking sensors; Applicable for standard radio; Not for parking camera; Applicable for TPMS + FLAT; Not for electrochromic mirrors; Not for lift system; Applicable for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273682	REAR CABLE	273682 REAR CABLE Base; Not for front and rear parking sensors; Applicable for base radio; Not for parking camera; Applicable for TPMS + FLAT; Not for electrochromic mirrors; Not for lift system; Applicable for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
2	285688	REAR CABLE	285688 REAR CABLE Base; Not for front and rear parking sensors; Applicable for standard radio; Not for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Not for lift system; Not for HELE; Applicable for USA, CDN; Applicable from Ass. No. 104676 up to Ass. No. 106533	-	1	Enquire
2	282416	REAR CABLE	282416 REAR CABLE Base; Not for front and rear parking sensors; Applicable for standard radio; Not for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Not for lift system; Not for HELE; Applicable for USA, CDN; Applicable from Ass. No. 102819 up to Ass. No. 104675	-	1	Enquire
2	273685	REAR CABLE	273685 REAR CABLE Base; Not for front and rear parking sensors; Applicable for standard radio; Not for parking camera; Applicable for TPMS + FLAT; Applicable for electrochromic mirrors; Not for lift system; Not for HELE; Applicable for USA, CDN; Applicable up to Ass. No. 102818	-	1	Enquire
3	271238	DASHBOARD CABLE	271238 DASHBOARD CABLE Not for front parking sensors; Applicable for base radio; Not for CINA, J, GD; Applicable up to Ass. No. 104675	-	1	Enquire
6	285081	FRONT CABLE	285081 FRONT CABLE Full house; Applicable for AFS headlights; Applicable for HELE; Applicable for GD; Applicable up to Ass. No. 106533	-	1	Enquire
6	288068	FRONT CABLE	288068 FRONT CABLE Full house; Applicable for AFS headlights; Applicable for HELE; Applicable for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	285073	FRONT CABLE	285073 FRONT CABLE Full house; Applicable for AFS headlights; Applicable for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 106533	-	1	Enquire
6	288052	FRONT CABLE	288052 FRONT CABLE Full house; Applicable for AFS headlights; Applicable for HELE; Not for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	279548	FRONT CABLE	279548 FRONT CABLE Full house; Applicable for AFS headlights; Applicable for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
6	285080	FRONT CABLE	285080 FRONT CABLE Full house; No AFS headlights; Applicable for HELE; Applicable for GD; Applicable up to Ass. No. 106533	-	1	Enquire
6	288067	FRONT CABLE	288067 FRONT CABLE Full house; No AFS headlights; Applicable for HELE; Applicable for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	288051	FRONT CABLE	288051 FRONT CABLE Full house; No AFS headlights; Applicable for HELE; Not for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	279547	FRONT CABLE	279547 FRONT CABLE Full house; No AFS headlights; Applicable for HELE; Not for GD; Applicable up to Ass. No. 102818	-	1	Enquire
6	285072	FRONT CABLE	285072 FRONT CABLE Full house; No AFS headlights; Applicable for HELE; Not for GD; Applicable from Ass. No. 102819 up to Ass. No. 106533	-	1	Enquire
6	288069	FRONT CABLE	288069 FRONT CABLE Full house; No AFS headlights; Not for HELE; Applicable for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	285077	FRONT CABLE	285077 FRONT CABLE Full house; No AFS headlights; Not for HELE; Applicable for USA, CDN; Applicable up to Ass. No. 106533	-	1	Enquire
6	288056	FRONT CABLE	288056 FRONT CABLE Full house; No AFS headlights; Not for HELE; Applicable for USA, CDN; Applicable from Ass. No. 106534	-	1	Enquire
6	285082	FRONT CABLE	285082 FRONT CABLE Full house; No AFS headlights; Not for HELE; Applicable for GD; Applicable up to Ass. No. 106533	-	1	Enquire
6	288054	FRONT CABLE	288054 FRONT CABLE Full house; No AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 106534	-	1	Enquire
6	285075	FRONT CABLE	285075 FRONT CABLE Full house; No AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 102819 up to Ass. No. 106533	-	1	Enquire
6	288070	FRONT CABLE	288070 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Applicable for GD; Applicable from Ass. No. 106534	-	1	Enquire
6	279541	FRONT CABLE	279541 FRONT CABLE Full house; No AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable up to Ass. No. 102818	-	1	Enquire
6	285083	FRONT CABLE	285083 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Applicable for GD; Applicable up to Ass. No. 106533	-	1	Enquire
6	288057	FRONT CABLE	288057 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Applicable for USA, CDN; Applicable from Ass. No. 106534	-	1	Enquire
6	285078	FRONT CABLE	285078 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Applicable for USA, CDN; Applicable up to Ass. No. 106533	-	1	Enquire
6	285076	FRONT CABLE	285076 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 102819 up to Ass. No. 106533	-	1	Enquire
6	288055	FRONT CABLE	288055 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 106534	-	1	Enquire
6	279542	FRONT CABLE	279542 FRONT CABLE Full house; Applicable for AFS headlights; Not for HELE; Not for USA, CDN, GD; Applicable up to Ass. No. 102818	-	1	Enquire
6	279543	FRONT CABLE	279543 FRONT CABLE Standard; Not for HELE; Not for USA, CDN, GD; Applicable up to Ass. No. 102818	-	1	Enquire
6	285074	FRONT CABLE	285074 FRONT CABLE Standard; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 102819 up to Ass. No. 106533	-	1	Enquire
6	288053	FRONT CABLE	288053 FRONT CABLE Standard; Not for HELE; Not for USA, CDN, GD; Applicable from Ass. No. 106534	-	1	Enquire
7	258550	PASSENGER AIRBAG CABLES	258550 PASSENGER AIRBAG CABLES Not for GD	-	1	Enquire
7	262875	PASSENGER AIRBAG CABLES	262875 PASSENGER AIRBAG CABLES Applicable for GD	-	1	Enquire
9	261306	REAR BUMPER CABLE	261306 REAR BUMPER CABLE Parking sensors; Not for USA, CDN	-	1	Enquire
9	261308	REAR BUMPER CABLE	261308 REAR BUMPER CABLE Parking sensors; Applicable for USA, CDN	-	1	Enquire
9	261305	REAR BUMPER CABLE	261305 REAR BUMPER CABLE Standard; Not for USA, CDN	-	1	Enquire
9	261307	REAR BUMPER CABLE	261307 REAR BUMPER CABLE Standard; Applicable for USA, CDN	-	1	Enquire
10	304061	VEHICLE LIFT CABLE	304061 VEHICLE LIFT CABLE Vehicle lift system; Applicable for GD; Applicable from Ass. No. 117282	-	1	Enquire
10	282666	VEHICLE LIFT CABLE	282666 VEHICLE LIFT CABLE Vehicle lift system; Applicable for GD; Applicable until depletion	-	1	Enquire
10	304060	VEHICLE LIFT CABLE	304060 VEHICLE LIFT CABLE Vehicle lift system; Not for GD; Applicable from Ass. No. 117282	-	1	Enquire
11	255982	CHASSIS GROUND CABLE	255982 CHASSIS GROUND CABLE	-	1	Enquire
14	253015	RADIO ANTENNA CABLE	253015 RADIO ANTENNA CABLE	-	1	Enquire
15	245789	PHANTOM POWER MICROPHONE WIRING HARNESS	245789 PHANTOM POWER MICROPHONE WIRING HARNESS	-	1	Enquire
16	277202	PHANTOM BOX RADIO AM/FM CABLE	277202 PHANTOM BOX RADIO AM/FM CABLE	-	1	Enquire
17	254757	USB CABLE FOR NIT	254757 USB CABLE FOR NIT	-	1	Enquire
18	257948	I-Pod Adapter	257948 I-Pod Adapter	-	1	Enquire
19	252992	BECKER NIT CANBOX	252992 BECKER NIT CANBOX	-	1	Enquire
20	286319	RH INJECTION WIRING HARNESS	286319 RH INJECTION WIRING HARNESS Applicable for USA, CDN; Applicable from Ass. No. 105486	-	1	Enquire
20	286318	RH INJECTION WIRING HARNESS	286318 RH INJECTION WIRING HARNESS Not for USA, CDN; Applicable from Ass. No. 105486	-	1	Enquire
20	278892	RH INJECTION WIRING HARNESS	278892 RH INJECTION WIRING HARNESS Applicable for USA, CDN; Applicable up to Ass. No. 105485	-	1	Enquire
20	278891	RH INJECTION WIRING HARNESS	278891 RH INJECTION WIRING HARNESS Not for USA, CDN; Applicable up to Ass. No. 105485	-	1	Enquire
21	272674	LH INJECTION WIRING HARNESS	272674 LH INJECTION WIRING HARNESS Not for USA, CDN	-	1	Enquire
21	284665	LH INJECTION WIRING HARNESS	284665 LH INJECTION WIRING HARNESS Applicable for USA, CDN; Applicable up to Ass. No. 118577	-	1	Enquire
21	284665	LH INJECTION WIRING HARNESS	284665 LH INJECTION WIRING HARNESS Applicable for USA, CDN; Applicable from Ass. No. 118578	-	1	Enquire
22	265156	DCT GEARBOX WIRING HARNESS	265156 DCT GEARBOX WIRING HARNESS Applicable up to Ass. No. 104675	-	1	Enquire
23	257860	VIDEO CABLE	257860 VIDEO CABLE	-	1	Enquire
24	262817	CABLE FROM ALTERNATOR TO STARTER MOTOR	262817 CABLE FROM ALTERNATOR TO STARTER MOTOR	-	1	Enquire
25	261178	PARKING CAMERA DASHBOARD WIRING HARNESS	261178 PARKING CAMERA DASHBOARD WIRING HARNESS Version with parking camera	-	1	Enquire
26	266805	WIRING HARNESS FOR MECHANICAL SEAT	266805 WIRING HARNESS FOR MECHANICAL SEAT	-	2	Enquire
27	275887	RESISTOR	275887 RESISTOR	-	1	Enquire
28	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK	-	1	Enquire
29	265717	CABLE FROM FUSE TO TERMINAL BLOCK	265717 CABLE FROM FUSE TO TERMINAL BLOCK Applicable for GD	-	1	Enquire
30	154803	PROTECTIVE CAP	154803 PROTECTIVE CAP	-	1	Enquire
31	282796	LH BRACKET	282796 LH BRACKET	-	1	Enquire
31	282795	RH BRACKET	282795 RH BRACKET	-	1	Enquire
32	279762	CLAMP	279762 CLAMP	-	2	Enquire
33	251997	RELAY	251997 RELAY	-	1	Enquire
34	14302921	SCREW	14302921 SCREW	-	2	Enquire
35	14497704	WASHER	14497704 WASHER	-	2	Enquire
36	312774	CHARGING WIRING HARNESS	312774 CHARGING WIRING HARNESS	-	1	Enquire
