WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari 458 Spider

View All

Ferrari 458 Spider - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

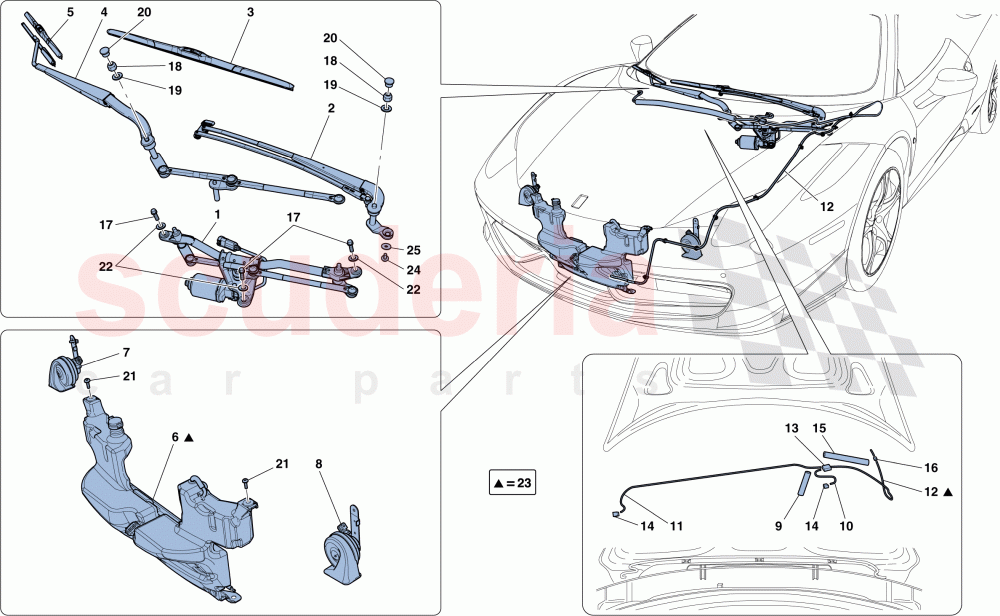

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	81511500	COMPL. WINDSCREEN WIPER ASSEMBLY	Enquire	To Order
	82963900	COMPL. WINDSCREEN WIPER ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511900	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	82964300	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	Enquire	To Order
	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511800	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	82964200	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81511600	WINDSCREEN WIPER BLADE PASSENGER SIDE LHD	Enquire	To Order
	82964000	Windscreen Wiper Blade Passenger Side RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85267200	WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256356	RH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256357	LH HORN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83982500	ANTI-VIBRATION RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83087800	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84075600	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83088000	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83982600	ANTI-VIBRATION RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396280	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order
	12640604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85267200	WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81511500	COMPL. WINDSCREEN WIPER ASSEMBLY	81511500 COMPL. WINDSCREEN WIPER ASSEMBLY Not for GD	-	1	Enquire
1	82963900	COMPL. WINDSCREEN WIPER ASSEMBLY	82963900 COMPL. WINDSCREEN WIPER ASSEMBLY Applicable for GD	-	1	Enquire
2	81511900	DRIVER SIDE WINDSCREEN WIPER ARM	81511900 DRIVER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
2	82964300	DRIVER SIDE WINDSCREEN WIPER ARM	82964300 DRIVER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
3	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	80534900 WINDSCREEN WIPER BLADE DRIVER SIDE LHD Not for GD	-	1	Enquire
3	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	80539000 WINDSCREEN WIPER BLADE DRIVER SIDE RHD Applicable for GD	-	1	Enquire
4	81511800	PASSENGER SIDE WINDSCREEN WIPER ARM	81511800 PASSENGER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
4	82964200	PASSENGER SIDE WINDSCREEN WIPER ARM	82964200 PASSENGER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
5	81511600	WINDSCREEN WIPER BLADE PASSENGER SIDE LHD	81511600 WINDSCREEN WIPER BLADE PASSENGER SIDE LHD Not for GD	-	1	Enquire
5	82964000	Windscreen Wiper Blade Passenger Side RHD	82964000 Windscreen Wiper Blade Passenger Side RHD Applicable for GD	-	1	Enquire
6	85267200	WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	85267200 WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR Does not include pipe from valve to tank; Applicable up to Ass. No. 120670; Applicable until depletion	-	1	Enquire
7	256356	RH HORN	256356 RH HORN	-	1	Enquire
8	256357	LH HORN	256357 LH HORN	-	1	Enquire
9	83982500	ANTI-VIBRATION RUBBER PIPE	83982500 ANTI-VIBRATION RUBBER PIPE L. 100 mm	-	1	Enquire
10	83087800	PIPE	83087800 PIPE From valve to spray nozzle	-	1	Enquire
11	84075600	PIPE	84075600 PIPE From valve to spray nozzle	-	1	Enquire
12	83088000	PIPE	83088000 PIPE From valve to reservoir; From Ass.ly No. 120671 or after depletion, supplied together with windscreen/headlight washer fluid reservoir 85267200; Applicable up to Ass. No. 120670; Applicable until depletion	-	1	Enquire
13	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
14	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
15	83982600	ANTI-VIBRATION RUBBER PIPE	83982600 ANTI-VIBRATION RUBBER PIPE L. 500 mm	-	1	Enquire
16	10396280	CABLE GROMMET	10396280 CABLE GROMMET	-	1	Enquire
17	231620	SCREW	231620 SCREW	-	3	Enquire
18	10791011	NUT	10791011 NUT	-	2	Enquire
19	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
20	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
21	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	2	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
22	12640604	WASHER	12640604 WASHER	-	3	Enquire
23	85267200	WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR	85267200 WINDSCREEN/HEADLIGHT WASHER FLUID RESERVOIR Includes pipe from valve to tank; Applicable from Ass. No. 120671; Applicable after depletion of 81758100	-	1	Enquire
24	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	1	Enquire
25	12643724	WASHER	12643724 WASHER	-	1	Enquire
