AC SYSTEM - WATER of Ferrari Ferrari 458 Spider

View All

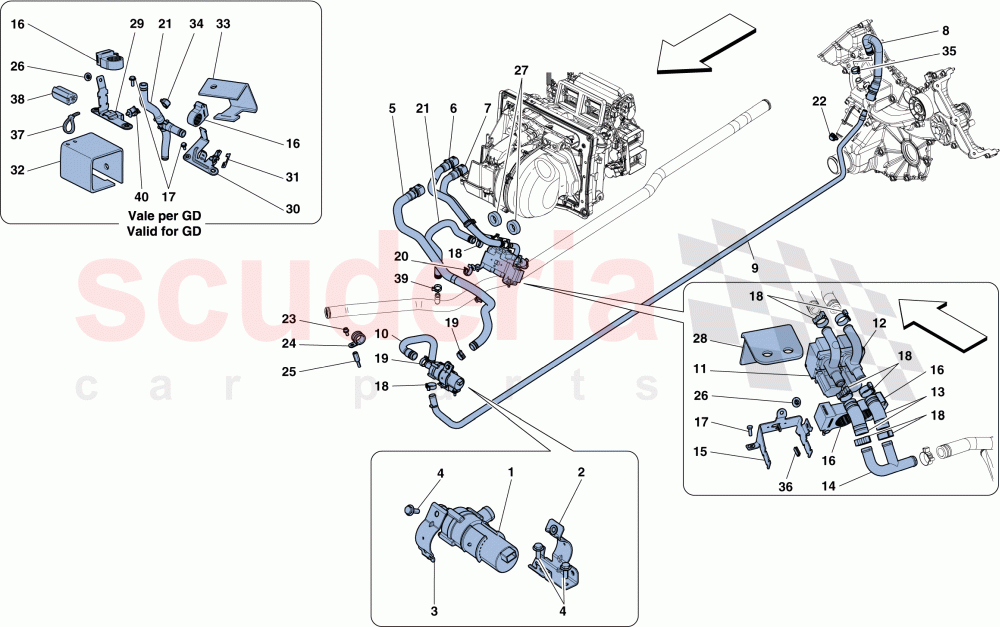

Ferrari 458 Spider - AC SYSTEM - WATER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65460300	COMPLETE WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82328900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82329400	CURVED BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82302800	CONNECTOR PIPE	Enquire	To Order
	82887100	CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82761900	RH TGK VALVE CONNECTOR PIPE	Enquire	To Order
	82887200	RH TGK VALVE CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82302700	LH TGK VALVE CONNECTOR PIPE	Enquire	To Order
	82887300	LH TGK VALVE CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82890600	AC UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82887000	CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67444900	LH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67635900	RH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82302900	CONNECTOR PIPE	Enquire	To Order
	291116	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247947	RIGID TGK VALVE OUTLET PIPE	Enquire	To Order
	290953	RIGID TGK VALVE OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82328500	TGK VALVE BLOCK MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	Enquire	To Order
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82944600	CONNECTOR PIPE	Enquire	To Order
	291115	HOSE	Enquire	To Order
	82887400	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263232	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178772	SPACER STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83444200	DRIP BAFFLE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83560800	GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83413300	RH TGK VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84058400	LH TGK VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83689500	WATER PIPE RUBBER GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83689600	WATER PIPE RUBBER GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231214	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292980	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241708	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65460300	COMPLETE WATER PUMP	65460300 COMPLETE WATER PUMP	-	1	Enquire
2	82328900	BRACKET	82328900 BRACKET	-	1	Enquire
3	82329400	CURVED BRACKET	82329400 CURVED BRACKET	-	1	Enquire
4	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 14	-	3	Enquire
5	82302800	CONNECTOR PIPE	82302800 CONNECTOR PIPE Not for GD	-	1	Enquire
5	82887100	CONNECTOR PIPE	82887100 CONNECTOR PIPE Applicable for GD	-	1	Enquire
6	82761900	RH TGK VALVE CONNECTOR PIPE	82761900 RH TGK VALVE CONNECTOR PIPE Not for GD	-	1	Enquire
6	82887200	RH TGK VALVE CONNECTOR PIPE	82887200 RH TGK VALVE CONNECTOR PIPE Applicable for GD	-	1	Enquire
7	82302700	LH TGK VALVE CONNECTOR PIPE	82302700 LH TGK VALVE CONNECTOR PIPE Not for GD	-	1	Enquire
7	82887300	LH TGK VALVE CONNECTOR PIPE	82887300 LH TGK VALVE CONNECTOR PIPE Applicable for GD	-	1	Enquire
9	82890600	AC UNDERBODY PIPE	82890600 AC UNDERBODY PIPE	-	1	Enquire
10	82887000	CONNECTOR PIPE	82887000 CONNECTOR PIPE	-	1	Enquire
11	67444900	LH TGK VALVE	67444900 LH TGK VALVE	-	1	Enquire
12	67635900	RH TGK VALVE	67635900 RH TGK VALVE	-	1	Enquire
13	82302900	CONNECTOR PIPE	82302900 CONNECTOR PIPE Applicable up to Ass. No. 119184	-	2	Enquire
13	291116	HOSE	291116 HOSE Applicable from Ass. No. 119185	-	2	Enquire
14	247947	RIGID TGK VALVE OUTLET PIPE	247947 RIGID TGK VALVE OUTLET PIPE Applicable up to Ass. No. 119184	-	1	Enquire
14	290953	RIGID TGK VALVE OUTLET PIPE	290953 RIGID TGK VALVE OUTLET PIPE Applicable from Ass. No. 119185	-	1	Enquire
15	82328500	TGK VALVE BLOCK MOUNTING BRACKET	82328500 TGK VALVE BLOCK MOUNTING BRACKET Not for GD	-	1	Enquire
16	174623	BUSH	174623 BUSH	-	2	Enquire
17	11625824	SCREW	11625824 SCREW M6 X 18; Applicable for GD	-	2	Enquire
17	11625824	SCREW	11625824 SCREW M6 X 18; Not for GD	-	2	Enquire
20	270085	CLIP	270085 CLIP	-	1	Enquire
21	82944600	CONNECTOR PIPE	82944600 CONNECTOR PIPE Not for GD; Applicable up to Ass. No. 119184	-	1	Enquire
21	291115	HOSE	291115 HOSE Not for GD; Applicable from Ass. No. 119185	-	1	Enquire
21	82887400	HOSE	82887400 HOSE Applicable for GD	-	1	Enquire
22	263232	CLIP	263232 CLIP	-	1	Enquire
23	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	1	Enquire
24	320600	CLIP	320600 CLIP	-	1	Enquire
25	178772	SPACER STUD	178772 SPACER STUD	-	1	Enquire
26	303385	CLIP	303385 CLIP	-	1	Enquire
27	83444200	DRIP BAFFLE RING	83444200 DRIP BAFFLE RING	-	2	Enquire
28	83560800	GUARD	83560800 GUARD	-	1	Enquire
29	83413300	RH TGK VALVE MOUNTING BRACKET	83413300 RH TGK VALVE MOUNTING BRACKET Applicable for GD	-	1	Enquire
30	84058400	LH TGK VALVE MOUNTING BRACKET	84058400 LH TGK VALVE MOUNTING BRACKET Applicable for GD	-	1	Enquire
31	162606	CLIP	162606 CLIP Applicable for GD	-	1	Enquire
32	83689500	WATER PIPE RUBBER GUARD	83689500 WATER PIPE RUBBER GUARD Applicable for GD	-	1	Enquire
33	83689600	WATER PIPE RUBBER GUARD	83689600 WATER PIPE RUBBER GUARD Applicable for GD	-	1	Enquire
34	231214	CLIP	231214 CLIP Applicable for GD	-	1	Enquire
35	320600	CLIP	320600 CLIP	-	1	Enquire
36	255515	BUSH	255515 BUSH	-	1	Enquire
37	206739	CLAMP	206739 CLAMP Applicable for GD	-	1	Enquire
38	262737	RUBBER RETAINER	262737 RUBBER RETAINER Applicable for GD	-	1	Enquire
39	292980	COLLAR	292980 COLLAR Applicable for GD	-	1	Enquire
40	241708	CLIP	241708 CLIP Applicable for GD	-	1	Enquire
