Tunnel - Substructure And Accessories

Ferrari 458 Spider

Find Your Part

Ferrari 458 Spider - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
81286700 CENTRE TUNNEL CONSOLE UNIT $3,945.69 To Order
83613500 CENTRE TUNNEL CONSOLE UNIT $7,764.64 To Order
Photo Part No Description Price (each) Stock
84023000 CENTRAL COMPARTMENT $353.00 To Order
81467400 CENTRAL COMPARTMENT $1,235.52 To Order
Photo Part No Description Price (each) Stock
84723500 SWITCH MOUNTING PANEL $1,604.58 To Order
82986500 SWITCH MOUNTING PANEL $513.46 To Order
Photo Part No Description Price (each) Stock

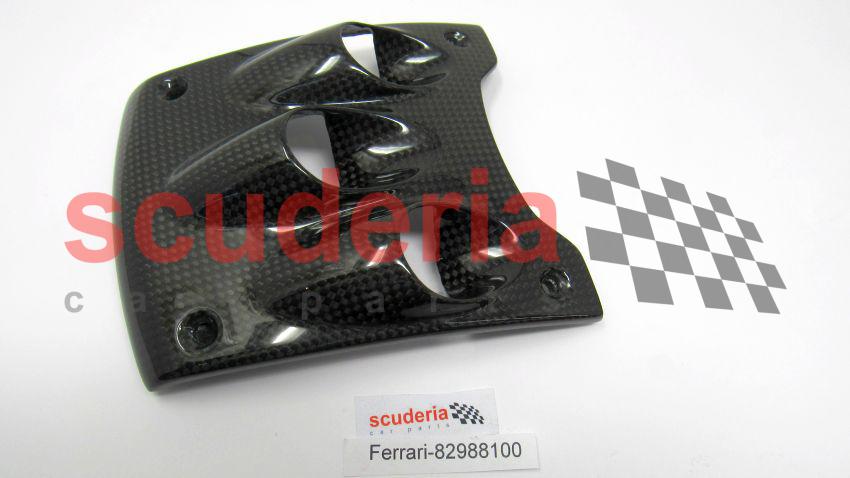

82987300 F1 GEARBOX CONTROL PANEL $320.90 To Order
82988100 F1 GEARBOX CONTROL PANEL $1,476.21 To Order
84479600 F1 GEARBOX CONTROL PANEL $2,196.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

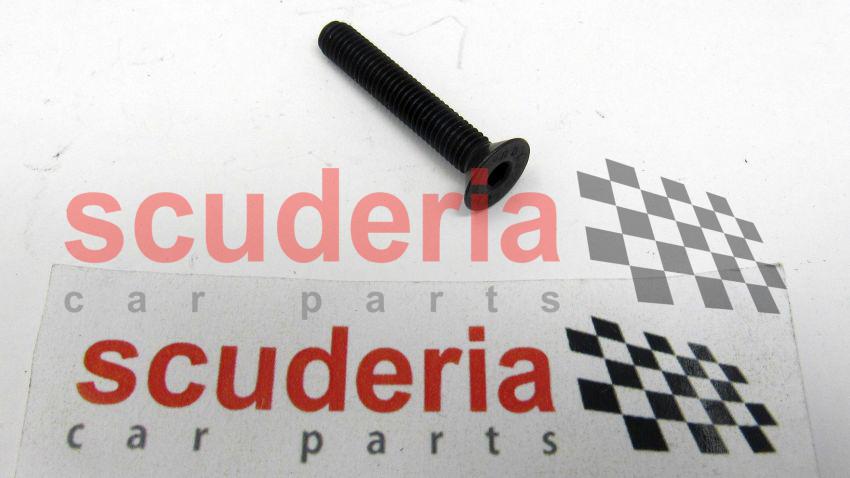

68927700 SCREW $0.18 IN STOCK
Photo Part No Description Price (each) Stock
84022900 FRONT COMPARTMENT $33.68 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
215406 12 V SOCKET $43.31 To Order
Photo Part No Description Price (each) Stock
183271 CIGARETTE LIGHTER SOCKET $35.28 IN STOCK
Photo Part No Description Price (each) Stock
66704500 CIGARETTE LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
83003500 ASHTRAY $288.81 To Order
Photo Part No Description Price (each) Stock
82229300 BUSHING $22.79 To Order
Photo Part No Description Price (each) Stock
68700200 CLIP $3.99 IN STOCK
Photo Part No Description Price (each) Stock
88005600 PRESS FASTENER PIN $1.88 To Order
Photo Part No Description Price (each) Stock
13274472 SCREW -M5 X 20- -For carbon fibre surround- $0.49 IN STOCK
14302921 SCREW $0.08 To Order
Photo Part No Description Price (each) Stock
83118800 12V SOCKET BRACKET $27.26 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
88822200 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
68176500 SCREW $0.50 IN STOCK
81591700 SCREW $2.24 To Order
View All

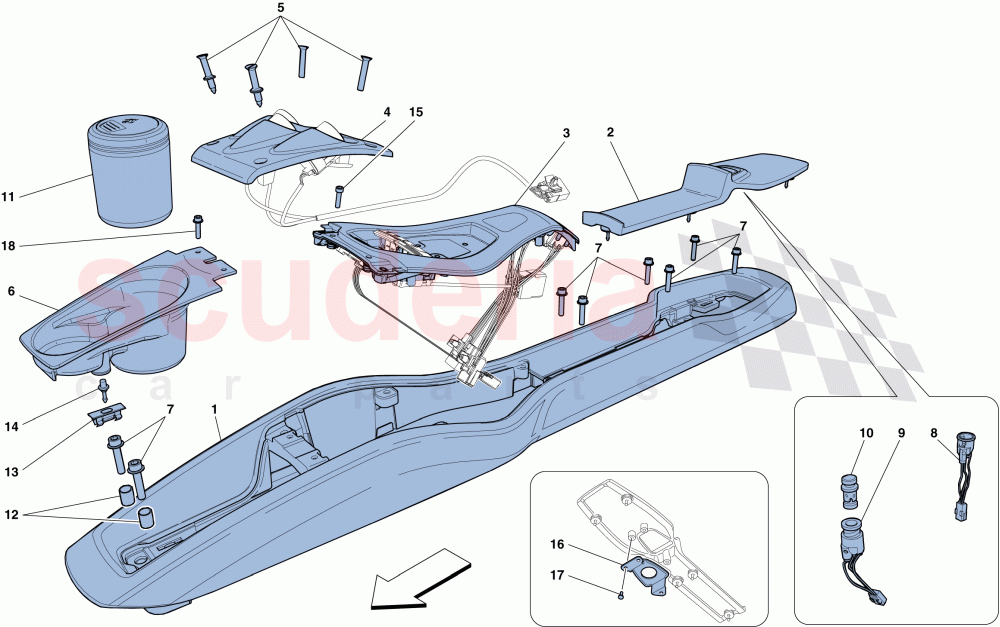

TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 81286700
CENTRE TUNNEL CONSOLE UNIT
Leather; STC1; STC2 		$3,945.69 1
1 83613500
CENTRE TUNNEL CONSOLE UNIT
Carbon 		$7,764.64 1
2 84023000
CENTRAL COMPARTMENT
Black felt 		$353.00 1
2 81467400
CENTRAL COMPARTMENT
Alcantara 		$1,235.52 1
3 84723500
SWITCH MOUNTING PANEL
Alutex 		$1,604.58 1
3 82986500
SWITCH MOUNTING PANEL
Burnished grey 		$513.46 1
4 82987300
F1 GEARBOX CONTROL PANEL
Burnished grey 		$320.90 1
4 82988100
F1 GEARBOX CONTROL PANEL
Carbon 		$1,476.21 1
4 84479600
F1 GEARBOX CONTROL PANEL
Alutex; Not for USA, CDN 		$2,196.68 1
4 84479700
F1 GEARBOX CONTROL PANEL
Alutex; Applicable for USA, CDN 		$2,640.39 1
5 68927700
SCREW
Burnished grey
IN STOCK 		$0.18 (87.6% off) 4
6 84022900
FRONT COMPARTMENT 		$33.68 1
7 231622
SCREW
M6 X 35
IN STOCK 		$0.36 (28% off) 8
8 215406
12 V SOCKET 		$43.31 (23.7% off) 1
9 183271
CIGARETTE LIGHTER SOCKET
Applicable for smoker's kit
IN STOCK 		$35.28 1
10 66704500
CIGARETTE LIGHTER
Applicable for smoker's kit 		- 1 Enquire
11 83003500
ASHTRAY 		$288.81 (21.9% off) 1
12 82229300
BUSHING 		$22.79 2
13 68700200
CLIP
IN STOCK 		$3.99 (27.5% off) 7
14 88005600
PRESS FASTENER PIN 		$1.88 9
15 13274472
SCREW -M5 X 20- -For carbon fibre surround-
M5 X 20; For carbon fibre surround
IN STOCK 		$0.49 (45.6% off) 4
15 14302921
SCREW
M4 X 20; Not for carbon fibre surround 		$0.08 4
16 83118800
12V SOCKET BRACKET 		$27.26 1
17 85833900
SCREW
Black felt version
IN STOCK 		$0.36 3
17 88822200
SCREW
Alcantara version
IN STOCK 		$0.70 3
18 68176500
SCREW
M5 X 12; No longer supplied; Replaced by 85692300
IN STOCK 		$0.50 (33.3% off) 2
18 81591700
SCREW
M5 X 20 		$2.24 2
