Name: ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS
Rating: 4.5 (1 reviews)

ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS of Ferrari Ferrari 458 Speciale Aperta

View All

Ferrari 458 Speciale Aperta - ENGINE COMPARTMENT LID AND FUEL FILLER FLAP OPENING MECHANISMS

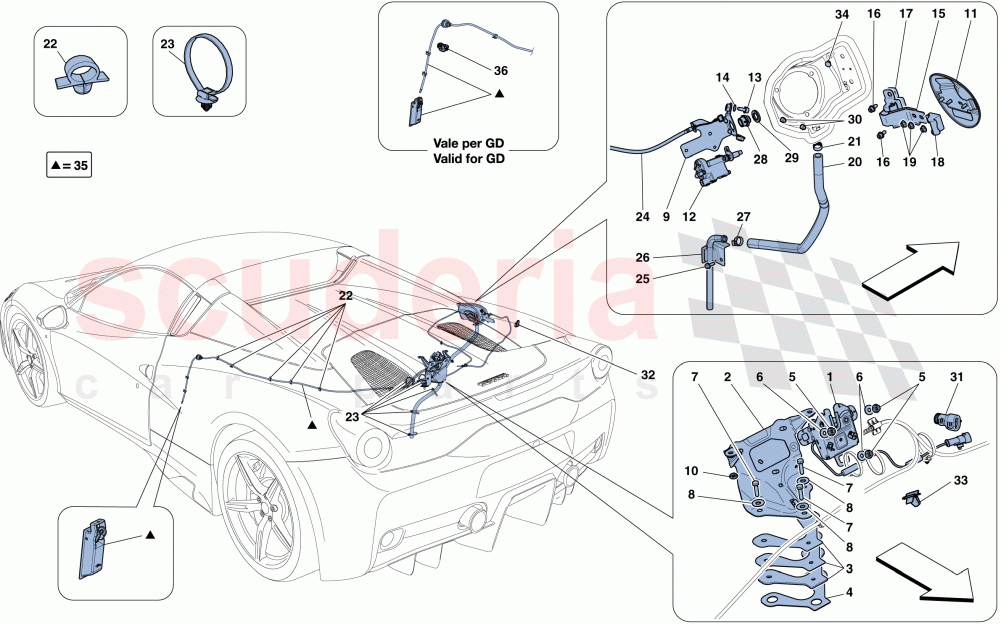

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84076100	ENGINE COMPARTMENT LID LOCK	$141.90	To Order

Photo	Part No	Description	Price (each)	Stock
	84676300	LOCK FASTENER BRACKET	$116.10	To Order

Photo	Part No	Description	Price (each)	Stock
	82112100	SHIM KIT	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	81657600	SHIM	$5.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	1264660112647624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	82898400	ACTUATOR FASTENER BRACKET	$129.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14098010	NUT	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	85899200	FUEL FILLER FLAP	$886.86	To Order
	85518311	FUEL FILLER FLAP	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	69918500	Actuator	$232.25	To Order

Photo	Part No	Description	Price (each)	Stock
	294780	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82249000	FUEL FILLER FLAP HINGE	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	294780	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	81619400	SPACER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	82249400	STRIKER	$8.49	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	85430400	RUBBER PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	82575800	CABLE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11625824	SCREW	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	84201900	COMPL. RIGID FUEL DRAIN PIPE	$71.92	To Order

Photo	Part No	Description	Price (each)	Stock
	13433570	HOSE COLLAR	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	67485800	BUSH	$8.44	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	81802300	RUBBER PAD	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	84076200	3-WAY CONNECTOR COVER	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84077300	PLUG	$10.10	To Order

Photo	Part No	Description	Price (each)	Stock
	86618800	HANDLE COMPLETE WITH CABLE	$229.33	To Order
	86445800	HANDLE COMPLETE WITH CABLE	$229.33	To Order

Photo	Part No	Description	Price (each)	Stock
	81097300	CLIP	$3.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84076100	ENGINE COMPARTMENT LID LOCK	84076100 ENGINE COMPARTMENT LID LOCK	$141.90	1
2	84676300	LOCK FASTENER BRACKET	84676300 LOCK FASTENER BRACKET	$116.10	1
3	82112100	SHIM KIT	82112100 SHIM KIT	$24.05	1
4	81657600	SHIM	81657600 SHIM	$5.30	1
5	14059211	NUT	14059211 NUT	$0.06	3
6	1264660112647624	WASHER	1264660112647624 WASHER	-	3	Enquire
7	231625	SCREW	231625 SCREW	$0.65	3
8	12647724	WASHER	12647724 WASHER	$0.15	3
9	82898400	ACTUATOR FASTENER BRACKET	82898400 ACTUATOR FASTENER BRACKET	$129.96	1
10	14098010	NUT	14098010 NUT	$0.16	2
11	85899200	FUEL FILLER FLAP	85899200 FUEL FILLER FLAP Carbon	$886.86	1
11	85518311	FUEL FILLER FLAP	85518311 FUEL FILLER FLAP	$545.55	1
12	69918500	Actuator	69918500 Actuator	$232.25	1
13	294780	SCREW	294780 SCREW	$0.47	2
14	12604178	Washer	12604178 Washer	-	2	Enquire
15	82249000	FUEL FILLER FLAP HINGE	82249000 FUEL FILLER FLAP HINGE	$545.55	1
16	294780	SCREW	294780 SCREW	$0.47	2
17	81619400	SPACER	81619400 SPACER	$5.58	1
18	82249400	STRIKER	82249400 STRIKER	$8.49	1
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
20	85430400	RUBBER PIPE	85430400 RUBBER PIPE	$240.67	1
21	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
22	248061	CLIP	248061 CLIP	$2.22	11
23	303385	CLIP	303385 CLIP	$0.31	5
24	82575800	CABLE	82575800 CABLE	$72.19	1
25	11625824	SCREW	11625824 SCREW M6 X 18	$0.39 MSRP: ~~1.00~~ (61% off)	1
26	84201900	COMPL. RIGID FUEL DRAIN PIPE	84201900 COMPL. RIGID FUEL DRAIN PIPE	$71.92	1
27	13433570	HOSE COLLAR	13433570 HOSE COLLAR	$0.75	1
28	67485800	BUSH	67485800 BUSH	$8.44	1
29	67067600	GASKET	67067600 GASKET	$3.95	1
30	81802300	RUBBER PAD	81802300 RUBBER PAD	$1.15	2
31	84076200	3-WAY CONNECTOR COVER	84076200 3-WAY CONNECTOR COVER	$0.75	1
32	10815787	CLAMP	10815787 CLAMP	$0.15	1
33	303385	CLIP	303385 CLIP	$0.31	1
34	84077300	PLUG	84077300 PLUG	$10.10	1
35	86618800	HANDLE COMPLETE WITH CABLE	86618800 HANDLE COMPLETE WITH CABLE Applicable for GD	$229.33	1
35	86445800	HANDLE COMPLETE WITH CABLE	86445800 HANDLE COMPLETE WITH CABLE Not for GD	$229.33	1
36	81097300	CLIP	81097300 CLIP Applicable for GD	$3.23	1
