Doors - Power Window And Rear View Mirror

Ferrari 458 Speciale Aperta

Find Your Part

Ferrari 458 Speciale Aperta - DOORS - POWER WINDOW AND REAR VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
81487200 Front LH Window Lift Mechanism Enquire To Order
81487400 Front RH Window Lift Mechanism Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
82910010 LH EXTERNAL REAR VIEW MIRROR Enquire To Order
81364310 LH EXTERNAL REAR VIEW MIRROR Enquire To Order
82909910 RH External Rear View Mirror Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68304200 FOAM Enquire To Order
Photo Part No Description Price (each) Stock
83983100 EXTERNAL DOOR WINDOW RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10396080 RING Enquire To Order
Photo Part No Description Price (each) Stock
86775500 LH WINDOW LIFT MOTOR Enquire To Order
86775600 RH WINDOW LIFTER MOTOR Enquire To Order
View All

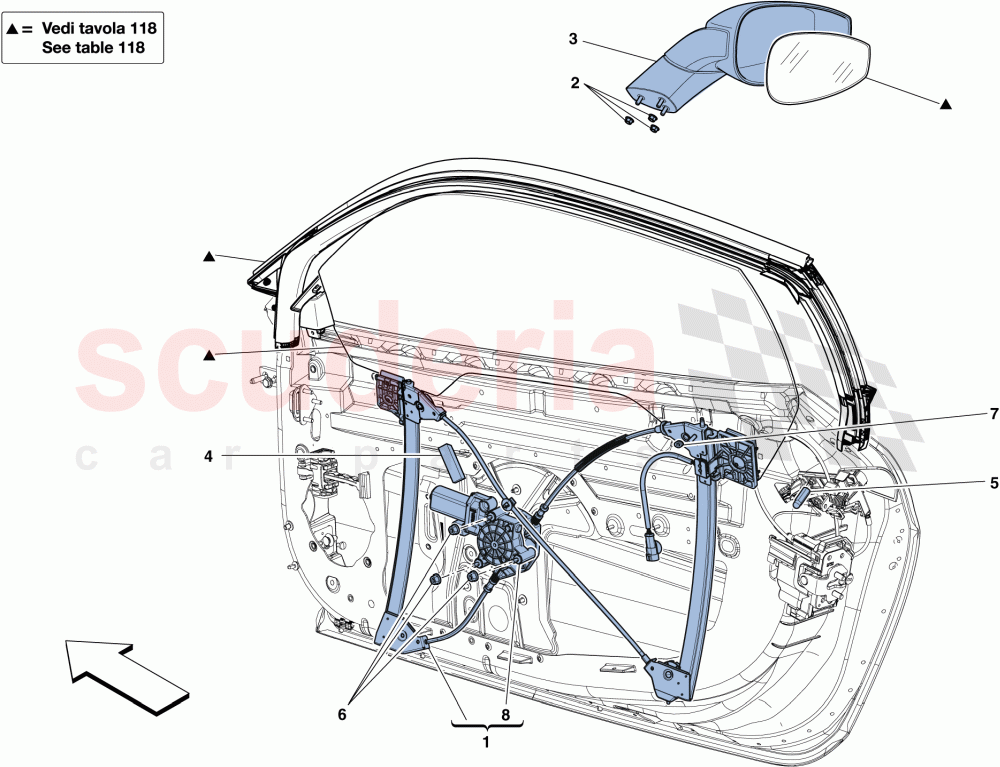

DOORS - POWER WINDOW AND REAR VIEW MIRROR of Ferrari Ferrari 458 Speciale Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 81487200
Front LH Window Lift Mechanism 		- 1 Enquire
1 81487400
Front RH Window Lift Mechanism 		- 1 Enquire
2 14059290
FLANGED NUT M6 		- 6 Enquire
3 82910010
LH EXTERNAL REAR VIEW MIRROR
With electric tipping system, with no position memory 		- 1 Enquire
3 81364310
LH EXTERNAL REAR VIEW MIRROR
With mechanical tipping system 		- 1 Enquire
3 82909910
RH External Rear View Mirror
With electric tipping system, with no position memory 		- 1 Enquire
3 81364010
RH EXTERNAL REAR VIEW MIRROR
With mechanical tipping system 		- 1 Enquire
4 68304200
FOAM 		- 2 Enquire
5 83983100
EXTERNAL DOOR WINDOW RETAINER 		- 2 Enquire
6 14059290
FLANGED NUT M6 		- 6 Enquire
7 10396080
RING 		- 2 Enquire
8 86775500
LH WINDOW LIFT MOTOR 		- 1 Enquire
8 86775600
RH WINDOW LIFTER MOTOR 		- 1 Enquire
