ROOF of Ferrari Ferrari 458 Speciale Aperta

View All

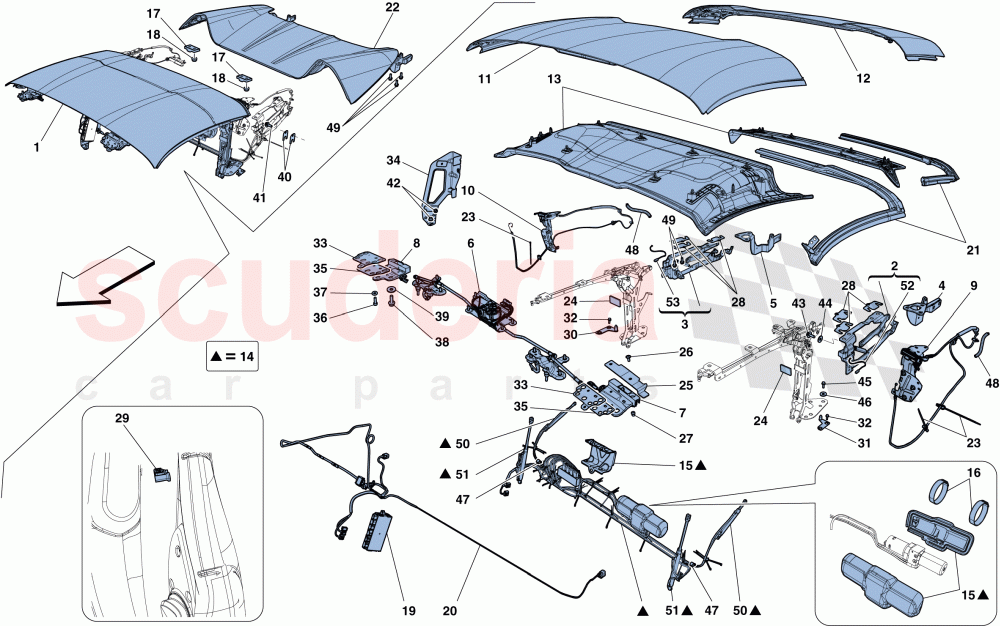

Ferrari 458 Speciale Aperta - ROOF

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83979600	ROOF ASSEMBLY	Enquire	To Order
	83979500	ROOF ASSEMBLY	Enquire	To Order
	83977100	ROOF ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977600	COMPL. LH COVER LIFTER MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977700	COMPL. RH COVER LIFTER MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83979300	COMPL. LH HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83979200	COMPL. RH HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977800	COMPL. LOCK SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977900	LH STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749652	RH STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83978300	LH FLAP MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83978400	RH FLAP MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977000	FRONT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83977300	REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84726300	FRONT AND REAR HEADLINER KIT	Enquire	To Order
	84726200	FRONT AND REAR HEADLINER KIT	Enquire	To Order
	84726100	FRONT AND REAR HEADLINER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84603300	COMPLETE HYDRAULIC SYSTEM KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84697900	HYDRAULIC SYSTEM SOUNDPROOFING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84603200	VELCRO FOR HYDRAULIC SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83978100	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86719000	ROOF ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	805141	ROOF WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84726500	FRONT AND REAR GASKET KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83979411	TONNEAU COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84706800	ADHESIVE FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84643500	RH STRIKER FASTENER BRACKET	Enquire	To Order
	84643400	LH STRIKER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054048	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84842000	SHIM	Enquire	To Order
	84807100	SHIM	Enquire	To Order
	84807000	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215411	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84256000	RH REAR CENTRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84256100	LH REAR CENTRING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86496000	RH WINDSCREEN STRIKER PLATE	Enquire	To Order
	86495900	LH WINDSCREEN STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86496100	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84503800	SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85422400	TUB LIFTING MECHANISM FASTENER SHIM	Enquire	To Order
	84508700	TUB LIFTING MECHANISM FASTENER SHIM	Enquire	To Order
	84508600	TUB LIFTING MECHANISM FASTENER SHIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219344	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84975900	PROTECTIVE COIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003528	COVER PISTON KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003529	ROOF PISTON KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88035900	LH TONNEAU COVER WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88036000	RH TONNEAU COVER WIRING HARNESS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83979600	ROOF ASSEMBLY	83979600 ROOF ASSEMBLY Painted; Optional; With Alcantara headliner	-	1	Enquire
1	83979500	ROOF ASSEMBLY	83979500 ROOF ASSEMBLY Painted; Optional; With leather headliner	-	1	Enquire
1	83977100	ROOF ASSEMBLY	83977100 ROOF ASSEMBLY Painted; Standard; With fabric headliner	-	1	Enquire
2	83977600	COMPL. LH COVER LIFTER MECHANISM	83977600 COMPL. LH COVER LIFTER MECHANISM	-	1	Enquire
3	83977700	COMPL. RH COVER LIFTER MECHANISM	83977700 COMPL. RH COVER LIFTER MECHANISM	-	1	Enquire
4	83979300	COMPL. LH HINGE	83979300 COMPL. LH HINGE	-	1	Enquire
5	83979200	COMPL. RH HINGE	83979200 COMPL. RH HINGE	-	1	Enquire
6	83977800	COMPL. LOCK SYSTEM	83977800 COMPL. LOCK SYSTEM	-	1	Enquire
7	83977900	LH STRIKER	83977900 LH STRIKER	-	1	Enquire
8	749652	RH STRIKER	749652 RH STRIKER	-	1	Enquire
9	83978300	LH FLAP MECHANISM	83978300 LH FLAP MECHANISM	-	1	Enquire
10	83978400	RH FLAP MECHANISM	83978400 RH FLAP MECHANISM	-	1	Enquire
11	83977000	FRONT PANEL	83977000 FRONT PANEL Unpainted	-	1	Enquire
12	83977300	REAR PANEL	83977300 REAR PANEL Unpainted	-	1	Enquire
13	84726300	FRONT AND REAR HEADLINER KIT	84726300 FRONT AND REAR HEADLINER KIT Optional; Alcantara	-	1	Enquire
13	84726200	FRONT AND REAR HEADLINER KIT	84726200 FRONT AND REAR HEADLINER KIT Optional; Leather	-	1	Enquire
13	84726100	FRONT AND REAR HEADLINER KIT	84726100 FRONT AND REAR HEADLINER KIT Standard; Fabric	-	1	Enquire
14	84603300	COMPLETE HYDRAULIC SYSTEM KIT	84603300 COMPLETE HYDRAULIC SYSTEM KIT	-	1	Enquire
15	84697900	HYDRAULIC SYSTEM SOUNDPROOFING KIT	84697900 HYDRAULIC SYSTEM SOUNDPROOFING KIT	-	1	Enquire
16	84603200	VELCRO FOR HYDRAULIC SYSTEM	84603200 VELCRO FOR HYDRAULIC SYSTEM	-	1	Enquire
17	83978100	STOP BUFFER	83978100 STOP BUFFER	-	2	Enquire
18	13046112	NUT	13046112 NUT	-	4	Enquire
19	86719000	ROOF ECU	86719000 ROOF ECU	-	1	Enquire
20	805141	ROOF WIRING HARNESS	805141 ROOF WIRING HARNESS	-	1	Enquire
21	84726500	FRONT AND REAR GASKET KIT	84726500 FRONT AND REAR GASKET KIT	-	1	Enquire
22	83979411	TONNEAU COVER	83979411 TONNEAU COVER	-	1	Enquire
23	MC43254	CLAMP	MC43254 CLAMP	-	4	Enquire
24	84706800	ADHESIVE FOAM	84706800 ADHESIVE FOAM	-	2	Enquire
25	84643500	RH STRIKER FASTENER BRACKET	84643500 RH STRIKER FASTENER BRACKET	-	1	Enquire
25	84643400	LH STRIKER FASTENER BRACKET	84643400 LH STRIKER FASTENER BRACKET	-	1	Enquire
26	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
27	14054048	NUT	14054048 NUT	-	4	Enquire
28	84842000	SHIM	84842000 SHIM Th. 3 mm	-	7	Enquire
28	84807100	SHIM	84807100 SHIM Th. 1 mm	-	4	Enquire
28	84807000	SHIM	84807000 SHIM Th. 0.5 mm	-	2	Enquire
29	215411	CLIP	215411 CLIP	-	2	Enquire
30	84256000	RH REAR CENTRING PLATE	84256000 RH REAR CENTRING PLATE	-	1	Enquire
31	84256100	LH REAR CENTRING PLATE	84256100 LH REAR CENTRING PLATE	-	1	Enquire
32	11568124	SCREW	11568124 SCREW	-	4	Enquire
33	86496000	RH WINDSCREEN STRIKER PLATE	86496000 RH WINDSCREEN STRIKER PLATE	-	1	Enquire
33	86495900	LH WINDSCREEN STRIKER PLATE	86495900 LH WINDSCREEN STRIKER PLATE	-	1	Enquire
34	86496100	ECU MOUNTING BRACKET	86496100 ECU MOUNTING BRACKET	-	1	Enquire
35	84503800	SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN	84503800 SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN	-	2	Enquire
36	14305334	SCREW	14305334 SCREW M6 X 20	-	4	Enquire
37	12646624	WASHER	12646624 WASHER	-	4	Enquire
38	13839224	SCREW	13839224 SCREW M8 X 25	-	6	Enquire
39	219344	WASHER	219344 WASHER	-	6	Enquire
40	85422400	TUB LIFTING MECHANISM FASTENER SHIM	85422400 TUB LIFTING MECHANISM FASTENER SHIM	-	2	Enquire
40	84508700	TUB LIFTING MECHANISM FASTENER SHIM	84508700 TUB LIFTING MECHANISM FASTENER SHIM	-	2	Enquire
40	84508600	TUB LIFTING MECHANISM FASTENER SHIM	84508600 TUB LIFTING MECHANISM FASTENER SHIM	-	2	Enquire
40	84508500	TUB LIFTING MECHANISM FASTENER SHIM	84508500 TUB LIFTING MECHANISM FASTENER SHIM	-	2	Enquire
41	82271400	SCREW	82271400 SCREW M8 X 25	-	6	Enquire
42	13046011	NUT	13046011 NUT	-	5	Enquire
43	82271400	SCREW	82271400 SCREW M8 X 25	-	6	Enquire
44	219344	WASHER	219344 WASHER	-	4	Enquire
45	81591700	SCREW	81591700 SCREW	-	4	Enquire
46	12647724	WASHER	12647724 WASHER	-	4	Enquire
47	320599	CLIP	320599 CLIP	-	2	Enquire
48	84975900	PROTECTIVE COIL	84975900 PROTECTIVE COIL	-	2	Enquire
49	82271400	SCREW	82271400 SCREW M8 X 25	-	10	Enquire
50	70003528	COVER PISTON KIT	70003528 COVER PISTON KIT	-	1	Enquire
51	70003529	ROOF PISTON KIT	70003529 ROOF PISTON KIT	-	1	Enquire
52	88035900	LH TONNEAU COVER WIRING HARNESS	88035900 LH TONNEAU COVER WIRING HARNESS	-	1	Enquire
53	88036000	RH TONNEAU COVER WIRING HARNESS	88036000 RH TONNEAU COVER WIRING HARNESS	-	1	Enquire
