Name: Doors - Skeleton And Coating
Rating: 5.0 (1 reviews)

View All

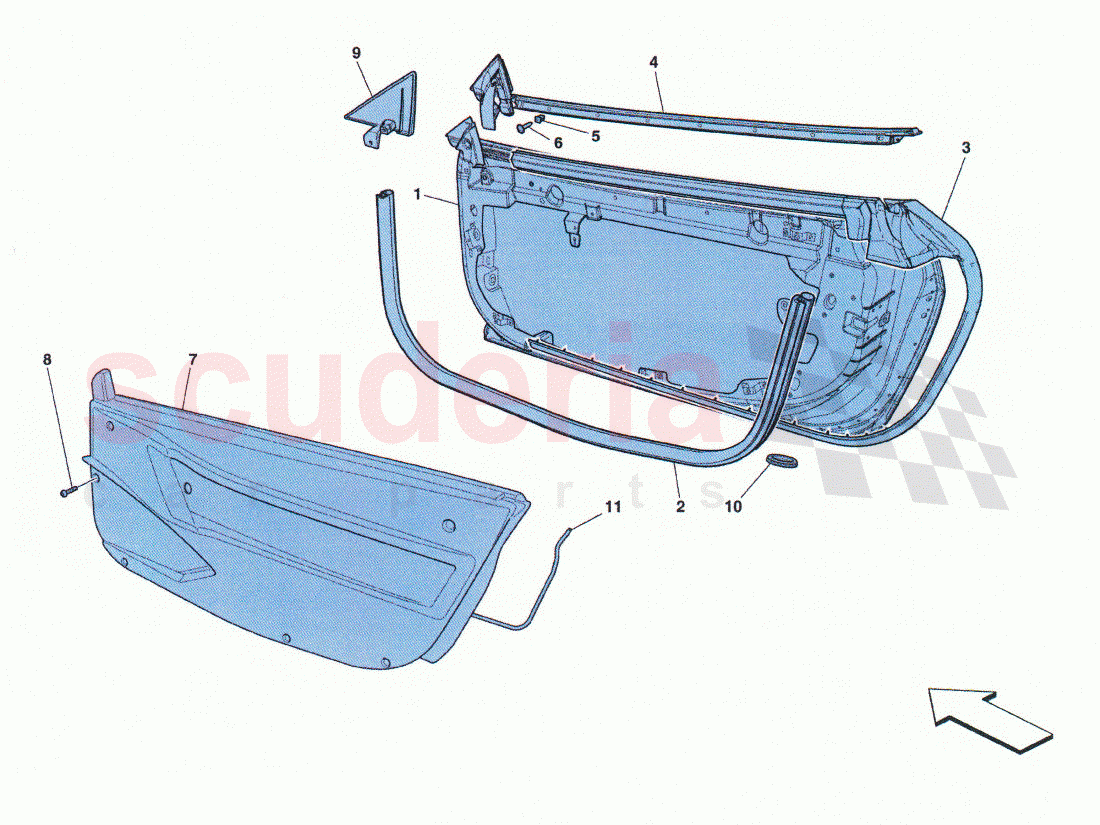

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83381800	LOWER SEAL	$423.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	15689801	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14506587	PLUG	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	82461400	RUBBER MOULDING	$81.82	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	83438511	COMPL. RH DOOR STRUCTURE	83438511 COMPL. RH DOOR STRUCTURE	$4,682.40	1
1	83438611	COMPL. LH DOOR STRUCTURE	83438611 COMPL. LH DOOR STRUCTURE	$4,682.40	1
2	83381800	LOWER SEAL	83381800 LOWER SEAL	$423.86	2
3	84685200	RH DOOR INNER PERIMETER SEAL	84685200 RH DOOR INNER PERIMETER SEAL	$913.94	1
3	84685100	LH DOOR INNER PERIMETER SEAL	84685100 LH DOOR INNER PERIMETER SEAL	$913.94	1
4	81361200	RH DOOR OUTER PERIMETER SEAL	81361200 RH DOOR OUTER PERIMETER SEAL	$479.05	1
4	81361400	LH DOOR OUTER PERIMETER SEAL	81361400 LH DOOR OUTER PERIMETER SEAL	$451.67	1
5	14115885	BLOCK	14115885 BLOCK	$0.16	14
6	15689801	SCREW	15689801 SCREW	$0.08	14
7	83053900	COMPL. RH DOOR PANEL	83053900 COMPL. RH DOOR PANEL	$3,621.56	1
7	83054100	COMPL. LH DOOR PANEL	83054100 COMPL. LH DOOR PANEL	$3,621.56	1
8	915271	SCREW	915271 SCREW	$1.31	12
9	81486300	RH DOOR TRIANGLE TRIM	81486300 RH DOOR TRIANGLE TRIM	$131.56	1
9	81486500	LH DOOR TRIANGLE TRIM	81486500 LH DOOR TRIANGLE TRIM	$131.56 MSRP: ~~174.51~~ (24.6% off)	1
10	14506587	PLUG	14506587 PLUG	$0.21 MSRP: ~~0.60~~ (65% off)	2
11	82461400	RUBBER MOULDING	82461400 RUBBER MOULDING	$81.82	2
