Fund Dish And Wheel Arch

Ferrari 458 Challenge

Find Your Part

Ferrari 458 Challenge - Fund Dish And Wheel arch

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
84154500 FRONT UNDERBODY SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
83857100 UNDERBODY SHIELD TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 Enquire To Order
Photo Part No Description Price (each) Stock
62766300 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
82884900 CENTRAL UNDERBODY SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
82955800 CENTRAL UNDERBODY SHIELD, FRONT SECTION Enquire To Order
Photo Part No Description Price (each) Stock
85199200 FIXING BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14189071 BRACKET FOR SCREW Enquire To Order
Photo Part No Description Price (each) Stock
83800100 REAR UNDERBODY SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 Enquire To Order
880041 Allen Head Bolt M6 X 26 Enquire To Order
Photo Part No Description Price (each) Stock
83378800 RH FRONT WHEELHOUSE Enquire To Order
83378900 LH FRONT WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
83379000 RH FRONT GRAVEL GUARD Enquire To Order
83379100 LH FRONT GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
16285224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14189071 BRACKET FOR SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16285224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84027600 COMPLETE RH REAR WHEELHOUSE Enquire To Order
84027700 COMPLETE LH REAR WHEELHOUSE Enquire To Order
Photo Part No Description Price (each) Stock
84028000 RH WHEELHOUSE CAP Enquire To Order
84028700 LH WHEELHOUSE CAP Enquire To Order
Photo Part No Description Price (each) Stock
82441600 LH REAR GRAVEL GUARD GRILLE Enquire To Order
82441500 RH REAR GRAVEL GUARD GRILLE Enquire To Order
Photo Part No Description Price (each) Stock
81535200 GROMMET WITH MEMBRANE Enquire To Order
Photo Part No Description Price (each) Stock
13287724 SCREW Enquire To Order
16285224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
83413500 COMPL. LH GRAVEL GUARD Enquire To Order
83413600 COMPL. LH GRAVEL GUARD Enquire To Order
Photo Part No Description Price (each) Stock
84045000 RH DUCT Enquire To Order
Photo Part No Description Price (each) Stock
84045100 LH DUCT Enquire To Order
Photo Part No Description Price (each) Stock
84027800 UPPER RH HEAT SHIELD Enquire To Order
84027900 UPPER LH HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
83868200 LOWER RH HEAT SHIELD Enquire To Order
83868500 LOWER LH HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14296196 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
14643291 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
269851 EXTERNAL AIR TEMPERATURE SEN Enquire To Order
View All

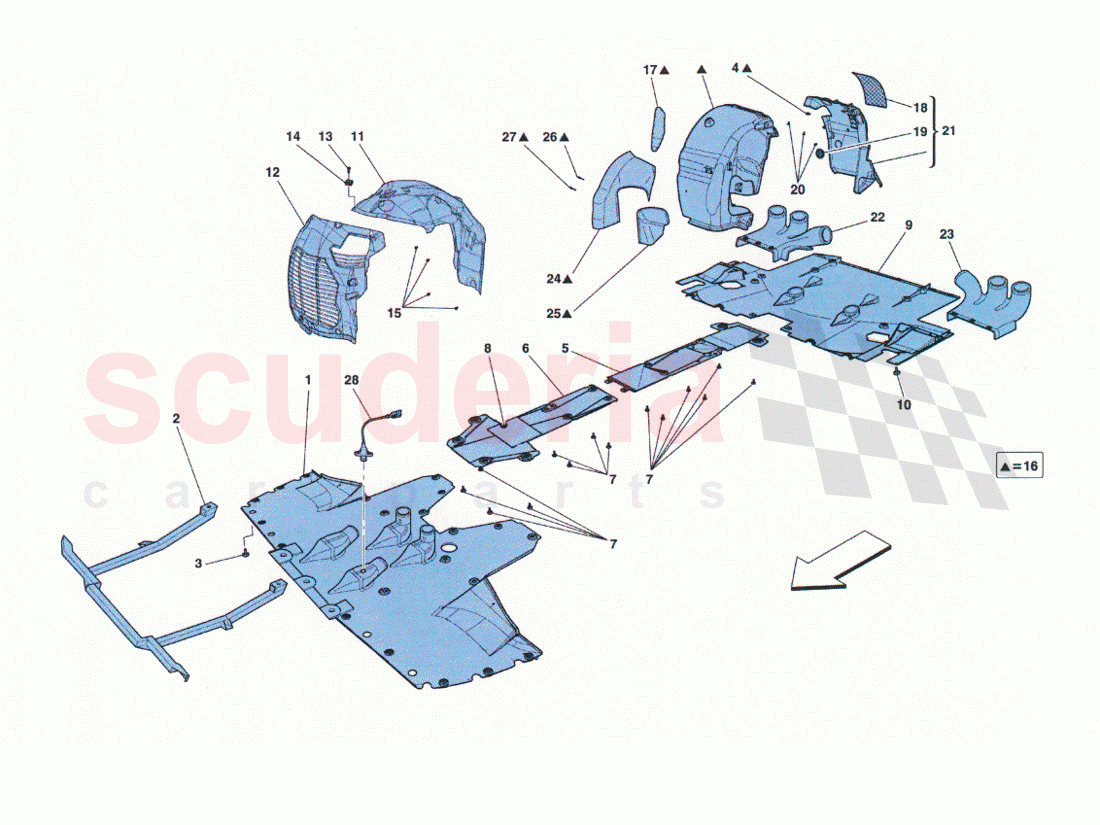

Fund Dish And Wheel arch of Ferrari Ferrari 458 Challenge Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 84154500
FRONT UNDERBODY SHIELD 		- 1 Enquire
2 83857100
UNDERBODY SHIELD TRELLIS 		- 1 Enquire
3 880041
Allen Head Bolt M6 X 26 		- 22 Enquire
4 62766300
CLIP 		- 6 Enquire
5 82884900
CENTRAL UNDERBODY SHIELD 		- 1 Enquire
6 82955800
CENTRAL UNDERBODY SHIELD, FRONT SECTION 		- 1 Enquire
7 85199200
FIXING BUTTON 		- 14 Enquire
8 14189071
BRACKET FOR SCREW 		- 2 Enquire
9 83800100
REAR UNDERBODY SHIELD 		- 1 Enquire
10 880041
Allen Head Bolt M6 X 26 		- 21 Enquire
10 880041
Allen Head Bolt M6 X 26 		- 4 Enquire
11 83378800
RH FRONT WHEELHOUSE 		- 1 Enquire
11 83378900
LH FRONT WHEELHOUSE 		- 1 Enquire
12 83379000
RH FRONT GRAVEL GUARD 		- 1 Enquire
12 83379100
LH FRONT GRAVEL GUARD 		- 1 Enquire
13 16285224
SCREW 		- 6 Enquire
14 14189071
BRACKET FOR SCREW 		- 6 Enquire
15 16285224
SCREW 		- 32 Enquire
16 84027600
COMPLETE RH REAR WHEELHOUSE 		- 1 Enquire
16 84027700
COMPLETE LH REAR WHEELHOUSE 		- 1 Enquire
17 84028000
RH WHEELHOUSE CAP 		- 1 Enquire
17 84028700
LH WHEELHOUSE CAP 		- 1 Enquire
18 82441600
LH REAR GRAVEL GUARD GRILLE 		- 1 Enquire
18 82441500
RH REAR GRAVEL GUARD GRILLE 		- 1 Enquire
19 81535200
GROMMET WITH MEMBRANE 		- 1 Enquire
20 13287724
SCREW 		- 12 Enquire
20 16285224
SCREW 		- 30 Enquire
21 83413500
COMPL. LH GRAVEL GUARD 		- 1 Enquire
21 83413600
COMPL. LH GRAVEL GUARD 		- 1 Enquire
22 84045000
RH DUCT 		- 1 Enquire
23 84045100
LH DUCT 		- 1 Enquire
24 84027800
UPPER RH HEAT SHIELD 		- 1 Enquire
24 84027900
UPPER LH HEAT SHIELD 		- 1 Enquire
25 83868200
LOWER RH HEAT SHIELD 		- 1 Enquire
25 83868500
LOWER LH HEAT SHIELD 		- 1 Enquire
26 14296196
RIVET 		- 24 Enquire
27 14643291
RIVET 		- 12 Enquire
28 269851
EXTERNAL AIR TEMPERATURE SEN 		- 1 Enquire
