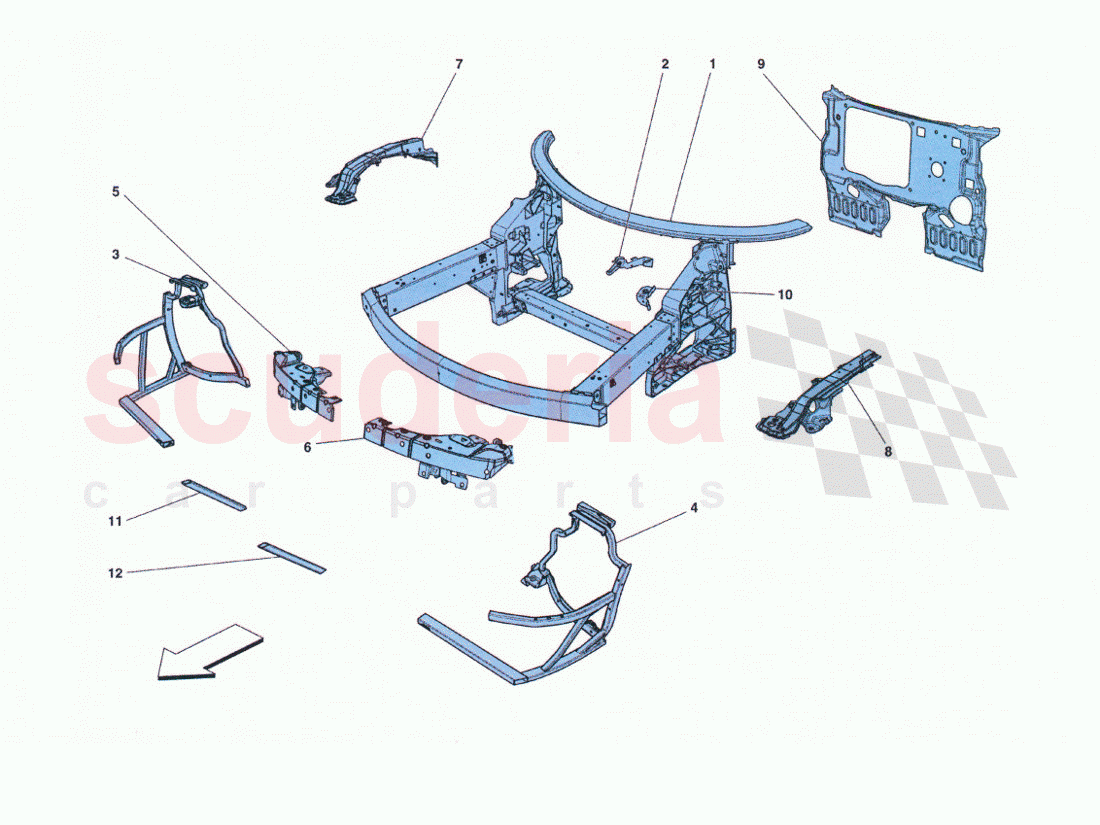

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985277054	FRONT MODULE	$16,142.18	To Order

Photo	Part No	Description	Price (each)	Stock
	272196	WINDSCREEN WIPER SPINDLE BRACKET	$41.23	To Order

Photo	Part No	Description	Price (each)	Stock
	82520600	RH Front Lateral Trellis	$658.83	To Order

Photo	Part No	Description	Price (each)	Stock
	82520800	LH Front Lateral Trellis	$658.83	To Order

Photo	Part No	Description	Price (each)	Stock
	84030100	RH BUMPER FASTENER BRACKET	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	84030200	LH BUMPER FASTENER BRACKET	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	83821400	RH FENDER MOUNTING	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	83824300	LH FENDER MOUNTING	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	271966	COMPL. FRONT FIREWALL BULKHE	$1,580.24	To Order

Photo	Part No	Description	Price (each)	Stock
	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$32.95	To Order

Photo	Part No	Description	Price (each)	Stock
	83283100	RH TRELLIS CONNECTION	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	83283200	LH TRELLIS CONNECTION	$72.19	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	985277054	FRONT MODULE	985277054 FRONT MODULE	$16,142.18	1
2	272196	WINDSCREEN WIPER SPINDLE BRACKET	272196 WINDSCREEN WIPER SPINDLE BRACKET	$41.23	1
3	82520600	RH Front Lateral Trellis	82520600 RH Front Lateral Trellis	$658.83	1
4	82520800	LH Front Lateral Trellis	82520800 LH Front Lateral Trellis	$658.83 MSRP: ~~947.82~~ (30.5% off)	1
5	84030100	RH BUMPER FASTENER BRACKET	84030100 RH BUMPER FASTENER BRACKET	$593.69	1
6	84030200	LH BUMPER FASTENER BRACKET	84030200 LH BUMPER FASTENER BRACKET	$593.69	1
7	83821400	RH FENDER MOUNTING	83821400 RH FENDER MOUNTING	$593.69	1
8	83824300	LH FENDER MOUNTING	83824300 LH FENDER MOUNTING	$593.69	1
9	271966	COMPL. FRONT FIREWALL BULKHE	271966 COMPL. FRONT FIREWALL BULKHE	$1,580.24	1
10	256207	WINDSCREEN WIPER MOTOR MOUNTING BRACKET	256207 WINDSCREEN WIPER MOTOR MOUNTING BRACKET	$32.95	1
11	83283100	RH TRELLIS CONNECTION	83283100 RH TRELLIS CONNECTION	$72.19	1
12	83283200	LH TRELLIS CONNECTION	83283200 LH TRELLIS CONNECTION	$72.19	1
