GLASSES AND GASKET of Ferrari Ferrari 456 M GT/GTA

View All

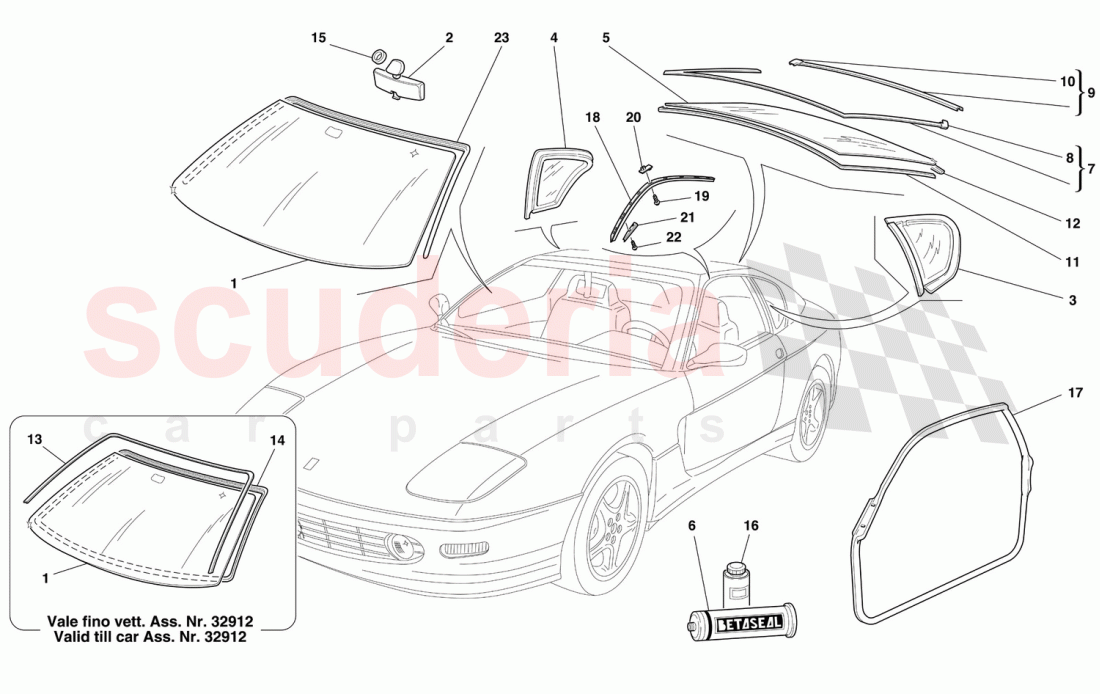

Ferrari 456 M GT/GTA - GLASSES AND GASKET

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65815600	WINDSCREEN GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62876100	INNER REAR VIEW MIRROR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65645300	L.H. REAR SIDE GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65645200	R.H. REAR SIDE GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65568300	REAR-WINDOW GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66091400	SEALANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212400	UPPER REAR MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212400	UPPER REAR MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212300	LOWER REAR UNDER WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212300	LOWER REAR UNDER WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63893400	REAR UPPER GASKET -Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63879300	REAR LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

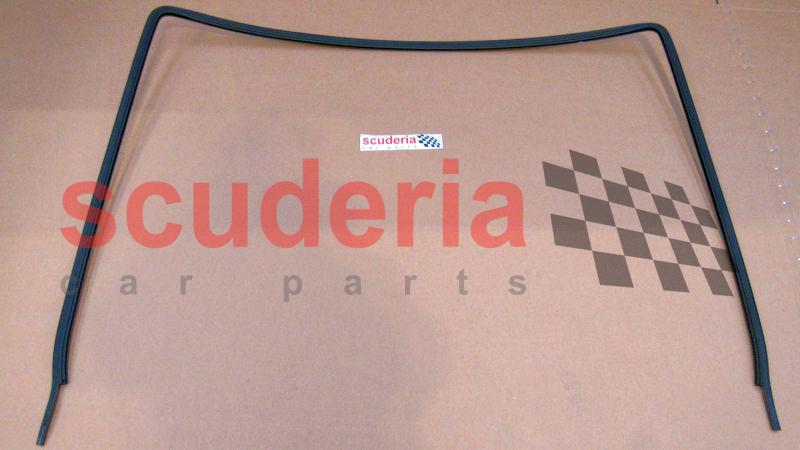

	65665000	WINDSCREEN GLASS GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

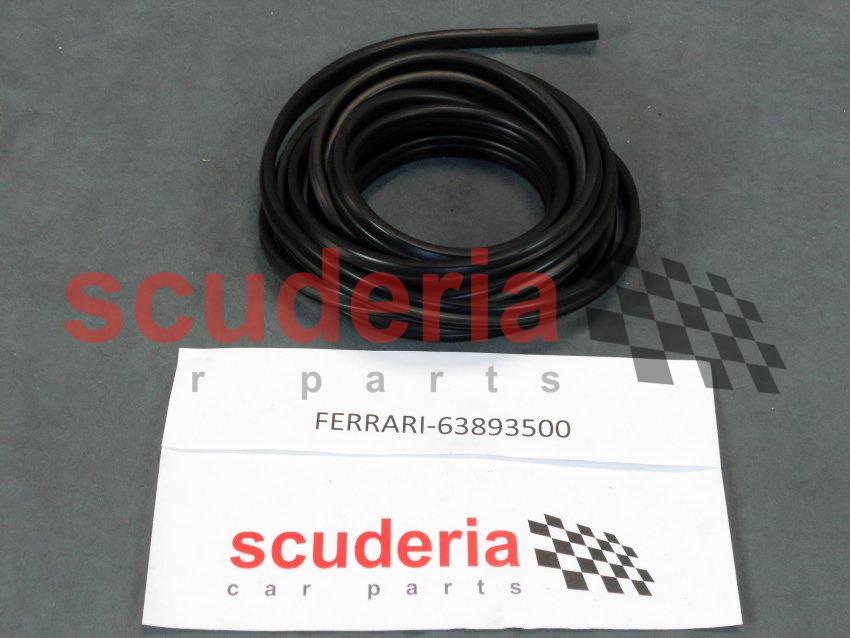

	63893500	Front Gasket -Guarnizione	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63012600	INNER REAR VIEW MIRROR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797300	SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65435600	GASKET FOR LH DOOR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65689500	L.H. MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16083501	TRIM SCREW 4 X 12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64569500	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65456400	L.H. GASKET RETAINING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16083501	TRIM SCREW 4 X 12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65665000	WINDSCREEN GLASS GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65689400	R.H. MOULDING	65689400 R.H. MOULDING	-	1	Enquire
-	65456300	R.H. GASKET RETAINING PLATE	65456300 R.H. GASKET RETAINING PLATE	-	1	Enquire
-	65435500	GASKET FOR RH DOOR OPENING	65435500 GASKET FOR RH DOOR OPENING OPENING	-	1	Enquire
-	65815600	WINDSCREEN GLASS	65815600 WINDSCREEN GLASS Valid after stock exhaustion of 63878300	-	1	Enquire
1	65815600	WINDSCREEN GLASS	65815600 WINDSCREEN GLASS	-	1	Enquire
2	62876100	INNER REAR VIEW MIRROR	62876100 INNER REAR VIEW MIRROR	-	1	Enquire
3	65645300	L.H. REAR SIDE GLASS	65645300 L.H. REAR SIDE GLASS With gaskets /	-	1	Enquire
4	65645200	R.H. REAR SIDE GLASS	65645200 R.H. REAR SIDE GLASS With gaskets /	-	1	Enquire
5	65568300	REAR-WINDOW GLASS	65568300 REAR-WINDOW GLASS	-	1	Enquire
6	66091400	SEALANT	66091400 SEALANT	-	1	Enquire
7	63212400	UPPER REAR MOULDING	63212400 UPPER REAR MOULDING	-	1	Enquire
8	63212400	UPPER REAR MOULDING	63212400 UPPER REAR MOULDING	-	1	Enquire
9	63212300	LOWER REAR UNDER WINDOW	63212300 LOWER REAR UNDER WINDOW MOULDING	-	1	Enquire
10	63212300	LOWER REAR UNDER WINDOW	63212300 LOWER REAR UNDER WINDOW	-	1	Enquire
11	63893400	REAR UPPER GASKET -Gasket	63893400 REAR UPPER GASKET -Gasket with FLAT BAND /	-	1	Enquire
12	63879300	REAR LOWER GASKET	63879300 REAR LOWER GASKET	-	1	Enquire
13	65665000	WINDSCREEN GLASS GASKET	65665000 WINDSCREEN GLASS GASKET Valid till car Ass. Nr. 32912	-	1	Enquire
14	63893500	Front Gasket -Guarnizione	63893500 Front Gasket -Guarnizione with FLAT BAND / Valid till car Ass. Nr. 32912	-	1	Enquire
15	63012600	INNER REAR VIEW MIRROR TRIM	63012600 INNER REAR VIEW MIRROR TRIM	-	1	Enquire
16	62797300	SEALING	62797300 SEALING	-	1	Enquire
17	65435600	GASKET FOR LH DOOR OPENING	65435600 GASKET FOR LH DOOR OPENING OPENING	-	1	Enquire
18	65689500	L.H. MOULDING	65689500 L.H. MOULDING	-	1	Enquire
19	16083501	TRIM SCREW 4 X 12MM	16083501 TRIM SCREW 4 X 12MM	-	18	Enquire
20	64569500	CLIP	64569500 CLIP	-	18	Enquire
21	65456400	L.H. GASKET RETAINING PLATE	65456400 L.H. GASKET RETAINING PLATE	-	1	Enquire
22	16083501	TRIM SCREW 4 X 12MM	16083501 TRIM SCREW 4 X 12MM	-	2	Enquire
23	65665000	WINDSCREEN GLASS GASKET	65665000 WINDSCREEN GLASS GASKET Valid from car Ass. Nr. 32913	-	1	Enquire
