Ferrari 456 M GT/GTA - DOORS - FRAMEWORK AND COVERINGS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
65439811 R.H. DOOR FRAME Enquire To Order
Photo Part No Description Price (each) Stock
60842000 UNDER DOOR BOX LAMP Enquire To Order
Photo Part No Description Price (each) Stock
65088400 UNDER DOOR LAMP Enquire To Order
Photo Part No Description Price (each) Stock
15901575 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12639477 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62767500 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
63723800 FRAME Enquire To Order
Photo Part No Description Price (each) Stock
65449200 R.H. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
63758200 R.H. OUTER LOWER GASKET Enquire To Order
Photo Part No Description Price (each) Stock
184786 Open-Door Light Enquire To Order
Photo Part No Description Price (each) Stock
140576 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
63850400 R.H. AIR DIFFUSOR OPENING Enquire To Order
Photo Part No Description Price (each) Stock
65286400 R.H. BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
65286700 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
174806 LOUD SPEAKER WOOFER Enquire To Order
Photo Part No Description Price (each) Stock
65449100 R.H. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
65297600 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13833171 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14647490 NUT Enquire To Order
Photo Part No Description Price (each) Stock
62764200 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
65432200 R.H. GLASS SCRAPER Enquire To Order
Photo Part No Description Price (each) Stock
15901475 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12639901 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
654702 RH COVERED CENTRAL PANEL MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
654706 R.H. DOOR ARM-REST Enquire To Order
Photo Part No Description Price (each) Stock
654710 R.H. HANDLE MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
178949 Trim Screw Enquire To Order
Photo Part No Description Price (each) Stock
65432400 R.H. OUTER GLASS SCRAPER Enquire To Order
Photo Part No Description Price (each) Stock
65655000 THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
65431500 PANEL FIXING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13273872 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65286500 R.H. FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13273872 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65286900 REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13273872 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65286000 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
15901475 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
64580400 BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
65285900 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
62764200 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
13273872 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
65557600 R.H. WATER PROTECTION CLOTH Enquire To Order
Photo Part No Description Price (each) Stock
65448500 R.H. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
65449300 R.H. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
62764000 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643778 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
64758500 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
15914877 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
64712800 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
14188181 PLASTIC TRIM CLIP Enquire To Order
Photo Part No Description Price (each) Stock
60101201 BOOT Enquire To Order
View All

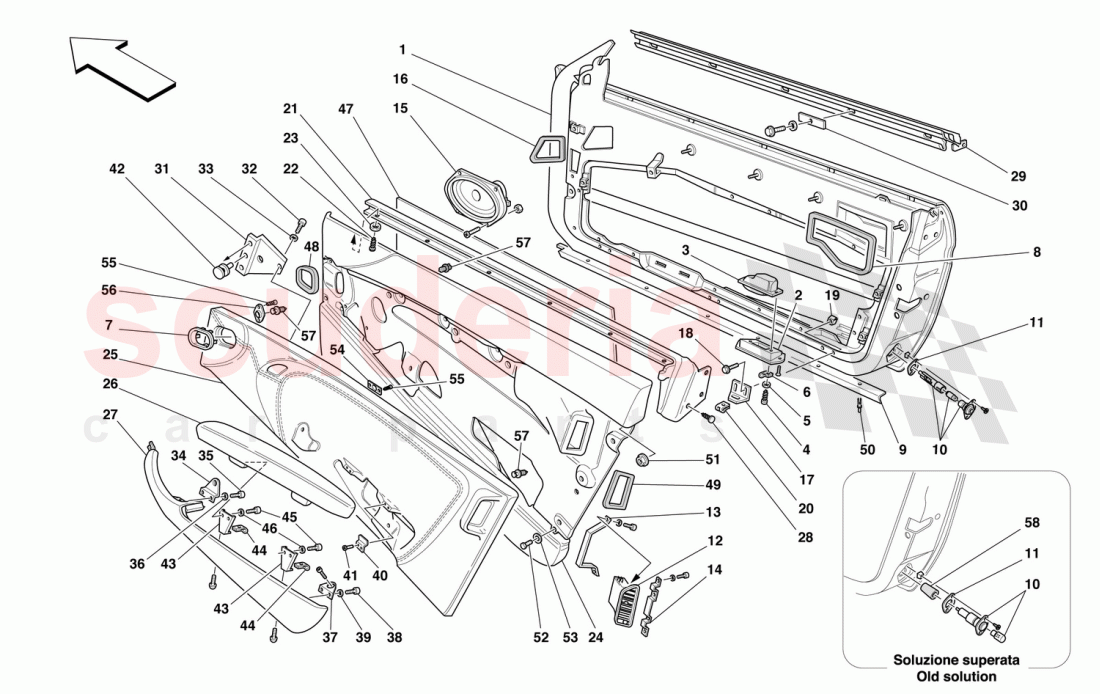

DOORS - FRAMEWORK AND COVERINGS of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 65557700
L.H. WATER PROTECTION CLOTH 		- 1 Enquire
- 65059500
WATER PROTECTION CLOTH FOR MICRO-SWITCH
FOR MICRO-SWITCH 		- 2 Enquire
- 65690000
L.H. GASKET 		- 1 Enquire
- 65689900
L.H. GASKET 		- 1 Enquire
- 12637824
WASHER 		- 2 Enquire
- 654620
LINING 		- 1 Enquire
- 654711
L.H. HANDLE MOULDING 		- 1 Enquire
- 654621
LINING 		- 1 Enquire
- 65432500
L.H. OUTER GLASS SCRAPER 		- 1 Enquire
- 65286600
L.H. FRONT BRACKET 		- 1 Enquire
- 65432300
L.H. GLASS SCRAPER 		- 1 Enquire
- 654474
LINING 		- 1 Enquire
- 654703
LH COVERED CENTRAL PANEL MOULDING
MOULDING 		- 1 Enquire
- 654475
LINING 		- 1 Enquire
- 654498
LINING 		- 1 Enquire
- 654707
L.H. DOOR ARM-REST 		- 1 Enquire
- 654499
LINING 		- 1 Enquire
- 63850500
L.H. AIR DIFFUSOR OPENING 		- 1 Enquire
- 65430400
L.H. BRACKET 		- 1 Enquire
- 65689700
L.H. GASKET 		- 1 Enquire
- 65689800
L.H. GASKET 		- 1 Enquire
- 63488300
L.H. OUTER LOWER GASKET 		- 1 Enquire
- 184786
Open-Door Light 		- 2 Enquire
- 65563711
R.H. DOOR FRAME
Valid for USA, CDN and AUS 		- 1 Enquire
- 65439911
L.H. DOOR FRAME
Not for USA, CDN and AUS 		- 1 Enquire
- 65563811
L.H. DOOR FRAME
Valid for USA, CDN and AUS 		- 1 Enquire
1 65439811
R.H. DOOR FRAME
Not for USA, CDN and AUS 		- 1 Enquire
2 60842000
UNDER DOOR BOX LAMP 		- 2 Enquire
3 65088400
UNDER DOOR LAMP 		- 2 Enquire
4 15901575
SCREW 		- 4 Enquire
5 12639477
WASHER 		- 4 Enquire
6 62767500
CLIP 		- 4 Enquire
7 63723800
FRAME 		- 2 Enquire
8 65449200
R.H. GASKET 		- 1 Enquire
9 63758200
R.H. OUTER LOWER GASKET 		- 1 Enquire
10 184786
Open-Door Light
Not as spare part now / Replaced by 184786 		- 2 Enquire
11 140576
GASKET 		- 2 Enquire
12 63850400
R.H. AIR DIFFUSOR OPENING 		- 1 Enquire
13 65286400
R.H. BRACKET 		- 1 Enquire
14 65286700
BRACKET 		- 2 Enquire
15 174806
LOUD SPEAKER WOOFER 		- 2 Enquire
16 65449100
R.H. GASKET 		- 1 Enquire
17 65297600
BRACKET 		- 6 Enquire
18 13833171
SCREW 		- 12 Enquire
19 14647490
NUT 		- 12 Enquire
20 62764200
CLIP 		- 6 Enquire
21 65432200
R.H. GLASS SCRAPER 		- 1 Enquire
22 15901475
SCREW 		- 12 Enquire
23 12639901
WASHER 		- 12 Enquire
25 654702
RH COVERED CENTRAL PANEL MOULDING
MOULDING 		- 1 Enquire
26 654706
R.H. DOOR ARM-REST 		- 1 Enquire
27 654710
R.H. HANDLE MOULDING 		- 1 Enquire
28 178949
Trim Screw 		- 6 Enquire
29 65432400
R.H. OUTER GLASS SCRAPER 		- 1 Enquire
30 65655000
THICKNESS 		- 10 Enquire
31 65431500
PANEL FIXING BRACKET 		- 2 Enquire
32 13273872
SCREW 		- 6 Enquire
33 12637824
WASHER 		- 6 Enquire
34 65286500
R.H. FRONT BRACKET 		- 1 Enquire
35 13273872
SCREW 		- 4 Enquire
36 12637824
WASHER 		- 4 Enquire
37 65286900
REAR BRACKET 		- 2 Enquire
38 13273872
SCREW 		- 4 Enquire
39 12637824
WASHER 		- 4 Enquire
40 65286000
BRACKET 		- 4 Enquire
41 15901475
SCREW 		- 8 Enquire
42 64580400
BLOCK 		- 2 Enquire
43 65285900
BRACKET 		- 4 Enquire
44 62764200
CLIP 		- 4 Enquire
45 13273872
SCREW 		- 8 Enquire
46 12637824
WASHER 		- 8 Enquire
47 65557600
R.H. WATER PROTECTION CLOTH 		- 1 Enquire
48 65448500
R.H. GASKET 		- 1 Enquire
49 65449300
R.H. GASKET 		- 1 Enquire
50 62764000
RIVET 		- 16 Enquire
51 14059290
FLANGED NUT M6 		- 8 Enquire
52 10977524
SCREW 		- 8 Enquire
53 12643778
WASHER 		- 6 Enquire
54 64758500
PLATE 		- 6 Enquire
55 15914877
SCREW 		- 28 Enquire
56 64712800
PLATE 		- 14 Enquire
57 14188181
PLASTIC TRIM CLIP 		- 16 Enquire
58 60101201
BOOT 		- 2 Enquire
