CENTRAL STRUCTURES AND COMPONENTS of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - CENTRAL STRUCTURES AND COMPONENTS

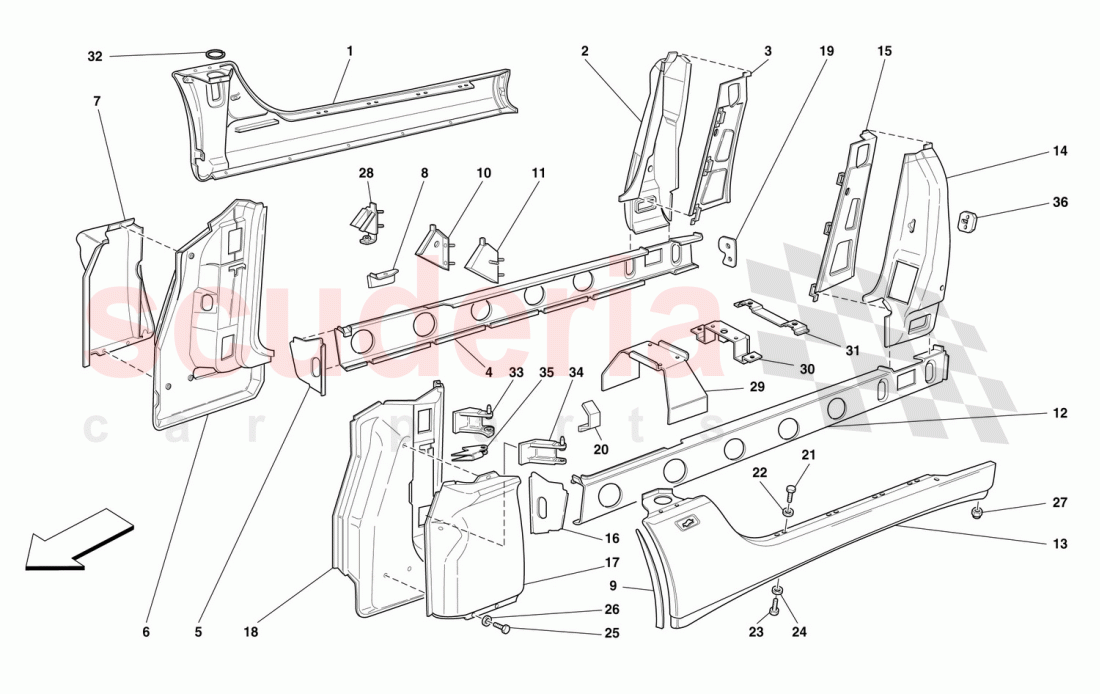

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65558800	COVERING FOR R.H. SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65575500	R.H. EXTERNAL REAR COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66092000	R.H. INTERNAL REAR COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63211611	R.H. SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212000	R.H. FRONT DIAPHRAGM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63199800	RH EXTERNAL COLUMN COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63201500	RH FRONT EXTERNAL SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63785300	R.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65833400	L.H. PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63761400	BRACKET FOR INSTRUMENT PANEL FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63761600	BRACKET FOR INSTRUMENT PANEL FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63211711	L.H. SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65558900	EXTERNAL COVERING FOR LH SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65575600	L.H. EXTERNAL REAR COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66092100	L.H. INTERNAL REAR COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63212100	L.H. FRONT DIAPHRAGM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63201600	LH FRONT EXTERNAL SIDE PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63199900	LH EXTERNAL COLUMN COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63213600	RH REAR LOWER CARPET SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63785600	L.H. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175556	BRACKET FOR DASHBOARD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174878	REAR BRACKET FOR FRONT CONSOLE FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175624	BRACKET FOR REAR TUNNEL FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175625	BRACKET FOR REAR TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64387000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63189200	L.H. UPPER FIXED HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63188600	L.H. LOWER FIXED HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180173	TIE ROD L.H. SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63128100	PLATE FOR STRIKER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63189100	R.H. UPPER FIXED HINGE	63189100 R.H. UPPER FIXED HINGE	-	1	Enquire
-	63188500	R.H. LOWER FIXED HINGE	63188500 R.H. LOWER FIXED HINGE	-	1	Enquire
-	179961	TIE ROD R.H. SUPPORT	179961 TIE ROD R.H. SUPPORT	-	1	Enquire
-	63213700	LH REAR LOWER CARPET SHIELD	63213700 LH REAR LOWER CARPET SHIELD SHIELD	-	1	Enquire
-	63785500	R.H. FRONT BRACKET	63785500 R.H. FRONT BRACKET	-	1	Enquire
-	65833500	R.H. PROTECTION	65833500 R.H. PROTECTION	-	1	Enquire
-	64041100	BRACKET FOR INSTRUMENT PANEL FIXING	64041100 BRACKET FOR INSTRUMENT PANEL FIXING PANEL FIXING -Valid for GD	-	1	Enquire
-	64041000	BRACKET FOR INSTRUMENT PANEL FIXING	64041000 BRACKET FOR INSTRUMENT PANEL FIXING PANEL FIXING -Valid for GD	-	1	Enquire
-	65655200	LH EXTERNAL REAR COLUMN	65655200 LH EXTERNAL REAR COLUMN L.H. SIDE MEMBER / Valid for USA and CDN	-	1	Enquire
-	65655100	COVERING FOR R.H. SIDE MEMBER	65655100 COVERING FOR R.H. SIDE MEMBER Valid for USA and CDN	-	1	Enquire
1	65558800	COVERING FOR R.H. SIDE MEMBER	65558800 COVERING FOR R.H. SIDE MEMBER Not for USA and CDN	-	1	Enquire
2	65575500	R.H. EXTERNAL REAR COLUMN	65575500 R.H. EXTERNAL REAR COLUMN	-	1	Enquire
3	66092000	R.H. INTERNAL REAR COLUMN	66092000 R.H. INTERNAL REAR COLUMN	-	1	Enquire
4	63211611	R.H. SIDE MEMBER	63211611 R.H. SIDE MEMBER	-	1	Enquire
5	63212000	R.H. FRONT DIAPHRAGM	63212000 R.H. FRONT DIAPHRAGM	-	1	Enquire
6	63199800	RH EXTERNAL COLUMN COMPLETE	63199800 RH EXTERNAL COLUMN COMPLETE COMPLETE	-	1	Enquire
7	63201500	RH FRONT EXTERNAL SIDE PANEL	63201500 RH FRONT EXTERNAL SIDE PANEL SIDE PANEL	-	1	Enquire
8	63785300	R.H. FRONT BRACKET	63785300 R.H. FRONT BRACKET	-	2	Enquire
9	65833400	L.H. PROTECTION	65833400 L.H. PROTECTION	-	1	Enquire
10	63761400	BRACKET FOR INSTRUMENT PANEL FIXING	63761400 BRACKET FOR INSTRUMENT PANEL FIXING PANEL FIXING -Not for GD	-	1	Enquire
11	63761600	BRACKET FOR INSTRUMENT PANEL FIXING	63761600 BRACKET FOR INSTRUMENT PANEL FIXING PANEL FIXING -Not for GD	-	1	Enquire
12	63211711	L.H. SIDE MEMBER	63211711 L.H. SIDE MEMBER	-	1	Enquire
13	65558900	EXTERNAL COVERING FOR LH SIDE MEMBER	65558900 EXTERNAL COVERING FOR LH SIDE MEMBER L.H. SIDE MEMBER / Not for USA and CDN	-	1	Enquire
14	65575600	L.H. EXTERNAL REAR COLUMN	65575600 L.H. EXTERNAL REAR COLUMN	-	1	Enquire
15	66092100	L.H. INTERNAL REAR COLUMN	66092100 L.H. INTERNAL REAR COLUMN	-	1	Enquire
16	63212100	L.H. FRONT DIAPHRAGM	63212100 L.H. FRONT DIAPHRAGM	-	1	Enquire
17	63201600	LH FRONT EXTERNAL SIDE PANEL	63201600 LH FRONT EXTERNAL SIDE PANEL SIDE PANEL	-	1	Enquire
18	63199900	LH EXTERNAL COLUMN COMPLETE	63199900 LH EXTERNAL COLUMN COMPLETE COMPLETE	-	1	Enquire
19	63213600	RH REAR LOWER CARPET SHIELD	63213600 RH REAR LOWER CARPET SHIELD SHIELD	-	1	Enquire
20	63785600	L.H. FRONT BRACKET	63785600 L.H. FRONT BRACKET	-	1	Enquire
21	13833224	SCREW	13833224 SCREW	-	14	Enquire
22	12638124	WASHER	12638124 WASHER	-	16	Enquire
23	10902380	SCREW	10902380 SCREW	-	12	Enquire
24	12648978	WASHER	12648978 WASHER	-	12	Enquire
25	13833224	SCREW	13833224 SCREW	-	6	Enquire
26	12638124	WASHER	12638124 WASHER	-	6	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
28	175556	BRACKET FOR DASHBOARD FIXING	175556 BRACKET FOR DASHBOARD FIXING	-	2	Enquire
29	174878	REAR BRACKET FOR FRONT CONSOLE FIXING	174878 REAR BRACKET FOR FRONT CONSOLE FIXING	-	1	Enquire
30	175624	BRACKET FOR REAR TUNNEL FIXING	175624 BRACKET FOR REAR TUNNEL FIXING CONSOLE FIXING	-	1	Enquire
31	175625	BRACKET FOR REAR TUNNEL	175625 BRACKET FOR REAR TUNNEL FIXING	-	1	Enquire
32	64387000	GASKET	64387000 GASKET	-	2	Enquire
33	63189200	L.H. UPPER FIXED HINGE	63189200 L.H. UPPER FIXED HINGE	-	1	Enquire
34	63188600	L.H. LOWER FIXED HINGE	63188600 L.H. LOWER FIXED HINGE	-	1	Enquire
35	180173	TIE ROD L.H. SUPPORT	180173 TIE ROD L.H. SUPPORT	-	1	Enquire
36	63128100	PLATE FOR STRIKER	63128100 PLATE FOR STRIKER	-	2	Enquire
