HAND-BRAKE CONTROL -Valid for 456M GTA- of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - HAND-BRAKE CONTROL -Valid for 456M GTA-

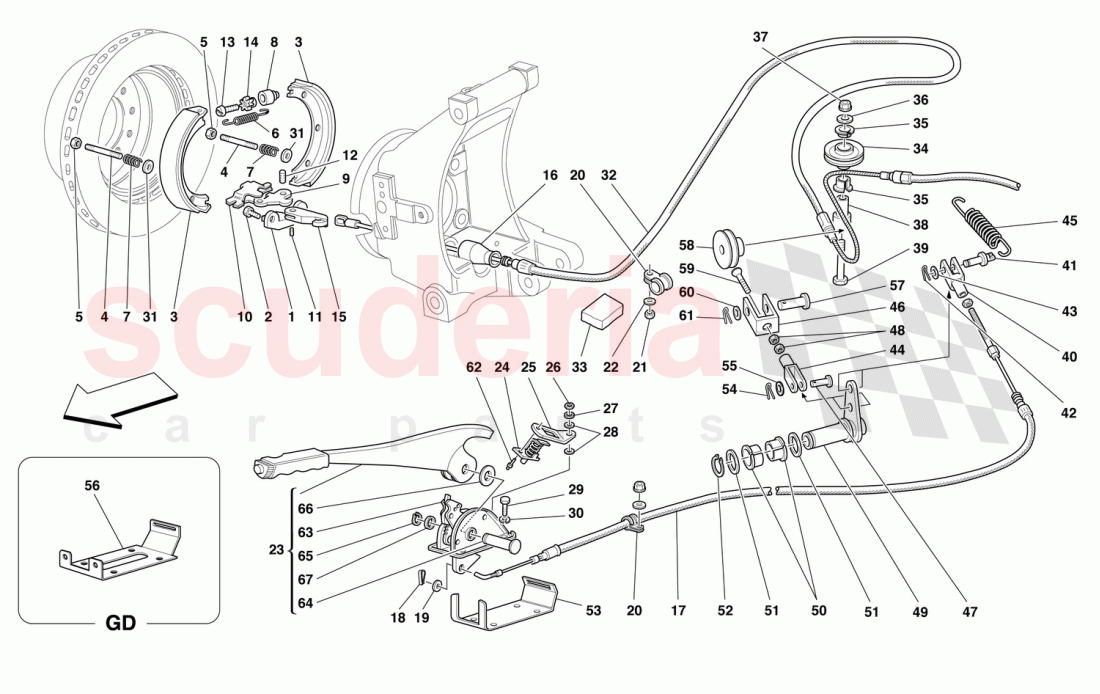

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142861	HUB HOLDER SMALL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178382	Complete Brake Shoe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13539224	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058319	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	RETURN SPRING FOR BRAKE SHOES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177625	BRAKE SHOE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101279	SEAT FOR ADJUSTMENT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101280	Inner Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101281	Outer Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101282	FIXING FORK TO INNER LEVER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101283	Pin for joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101285	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101286	Nut for adjusting screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105270	Inner lever control fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143938	STOP LIMIT FOR HAND BRAKE SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172908	HAND-BRAKE CONTROL FRONT CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154095	HAND BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169292	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169291	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63622400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172909	HAND-BRAKE CONTROL REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158346	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175781	PULLEY FOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163501	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163182	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903421	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10007871	FORK FOR BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168954	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734301	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	107618	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10248271	FORK FOR CLUTCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172906	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163192	BRAKE LEVER CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152273	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066476	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64051200	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734301	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65562800	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172907	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175781	PULLEY FOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14442434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10733601	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50084409	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191634	COMPLETE MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191635	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191638	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191636	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191637	SPACER WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	657538	LINING	657538 LINING See relevant table for leather colours	-	2	Enquire
1	142861	HUB HOLDER SMALL BLOCK	142861 HUB HOLDER SMALL BLOCK	-	2	Enquire
2	142856	SCREW	142856 SCREW	-	4	Enquire
3	178382	Complete Brake Shoe	178382 Complete Brake Shoe	-	4	Enquire
4	13539224	STUD	13539224 STUD	-	2	Enquire
5	14058319	NUT	14058319 NUT	-	4	Enquire
6	101276	RETURN SPRING FOR BRAKE SHOES	101276 RETURN SPRING FOR BRAKE SHOES	-	4	Enquire
7	177625	BRAKE SHOE SPRING	177625 BRAKE SHOE SPRING	-	4	Enquire
8	101279	SEAT FOR ADJUSTMENT SCREW	101279 SEAT FOR ADJUSTMENT SCREW	-	2	Enquire
9	101280	Inner Control Lever	101280 Inner Control Lever	-	2	Enquire
10	101281	Outer Control Lever	101281 Outer Control Lever	-	2	Enquire
11	101282	FIXING FORK TO INNER LEVER PIN	101282 FIXING FORK TO INNER LEVER PIN	-	2	Enquire
12	101283	Pin for joint	101283 Pin for joint	-	2	Enquire
13	101285	SCREW	101285 SCREW	-	2	Enquire
14	101286	Nut for adjusting screw	101286 Nut for adjusting screw	-	2	Enquire
15	105270	Inner lever control fork	105270 Inner lever control fork	-	2	Enquire
16	143938	STOP LIMIT FOR HAND BRAKE SHEATH	143938 STOP LIMIT FOR HAND BRAKE SHEATH BRAKE SHEATH	-	2	Enquire
17	172908	HAND-BRAKE CONTROL FRONT CABLE	172908 HAND-BRAKE CONTROL FRONT CABLE	-	1	Enquire
18	264555	SPLIT PIN	264555 SPLIT PIN	-	1	Enquire
19	84653800	WASHER	84653800 WASHER	-	1	Enquire
20	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	3	Enquire
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
22	10519424	WASHER	10519424 WASHER	-	2	Enquire
23	154095	HAND BRAKE LEVER	154095 HAND BRAKE LEVER Without lining	-	1	Enquire
24	169292	SWITCH	169292 SWITCH	-	1	Enquire
25	169291	SUPPORT BRACKET	169291 SUPPORT BRACKET	-	1	Enquire
26	15896470	NUT	15896470 NUT	-	1	Enquire
27	12604178	Washer	12604178 Washer	-	1	Enquire
28	63622400	WASHER	63622400 WASHER	-	2	Enquire
29	81591700	SCREW	81591700 SCREW	-	4	Enquire
30	127494	WASHER	127494 WASHER	-	4	Enquire
31	12637824	WASHER	12637824 WASHER	-	4	Enquire
32	172909	HAND-BRAKE CONTROL REAR CABLE	172909 HAND-BRAKE CONTROL REAR CABLE	-	1	Enquire
33	158346	RUBBER THICKNESS	158346 RUBBER THICKNESS	-	2	Enquire
34	175781	PULLEY FOR CABLE	175781 PULLEY FOR CABLE	-	2	Enquire
35	163501	BUSHING	163501 BUSHING	-	2	Enquire
36	10519424	WASHER	10519424 WASHER	-	1	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
38	163182	PIN	163182 PIN	-	1	Enquire
39	10903421	SCREW	10903421 SCREW	-	1	Enquire
40	10007871	FORK FOR BRAKE LEVER	10007871 FORK FOR BRAKE LEVER	-	1	Enquire
41	168954	PIN	168954 PIN	-	1	Enquire
42	10734301	SPLIT PIN	10734301 SPLIT PIN	-	1	Enquire
43	107618	WASHER	107618 WASHER	-	2	Enquire
44	10248271	FORK FOR CLUTCH LEVER	10248271 FORK FOR CLUTCH LEVER	-	1	Enquire
45	104895	SPRING	104895 SPRING	-	1	Enquire
46	172906	FORK	172906 FORK	-	1	Enquire
47	10050814	PIN	10050814 PIN	-	1	Enquire
48	16102314	NUT	16102314 NUT	-	2	Enquire
49	163192	BRAKE LEVER CABLE	163192 BRAKE LEVER CABLE	-	1	Enquire
50	152273	BUSHING	152273 BUSHING	-	2	Enquire
51	152300	WASHER	152300 WASHER	-	2	Enquire
52	11066476	Seeger Ring	11066476 Seeger Ring	-	1	Enquire
53	64051200	SUPPORT	64051200 SUPPORT	-	1	Enquire
54	10734301	SPLIT PIN	10734301 SPLIT PIN	-	1	Enquire
55	84653800	WASHER	84653800 WASHER	-	1	Enquire
56	65562800	BRACKET	65562800 BRACKET Valid for GD	-	1	Enquire
57	172907	PIN	172907 PIN	-	1	Enquire
58	175781	PULLEY FOR CABLE	175781 PULLEY FOR CABLE	-	1	Enquire
59	14442434	SCREW	14442434 SCREW	-	1	Enquire
60	14499624	WASHER	14499624 WASHER	-	1	Enquire
61	10733601	SPLIT PIN	10733601 SPLIT PIN	-	1	Enquire
62	50084409	RIVET	50084409 RIVET	-	1	Enquire
63	191634	COMPLETE MECHANISM	191634 COMPLETE MECHANISM	-	1	Enquire
64	191635	PIN	191635 PIN	-	1	Enquire
65	191638	Seeger Ring	191638 Seeger Ring	-	1	Enquire
66	191636	WASHER	191636 WASHER	-	1	Enquire
67	191637	SPACER WASHER	191637 SPACER WASHER	-	1	Enquire
