Brake And Clutch Hydraulic System -Valid For Gd-

Ferrari 456 M GT/GTA

Find Your Part

Ferrari 456 M GT/GTA - BRAKE AND CLUTCH HYDRAULIC SYSTEM -Valid for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
178276 CLUTCH CONTROL TUBE $272.77 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder $317.76 IN STOCK
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.42 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
177034 COMPLETE BRAKE BOOSTER $801.05 To Order
Photo Part No Description Price (each) Stock
178528 BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP $770.19 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.05 IN STOCK
Photo Part No Description Price (each) Stock
184497 CONNECTOR $44.75 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
211377 RUBBER PIPE $9.29 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 IN STOCK
Photo Part No Description Price (each) Stock
114263 RUBBER PIPE $73.80 To Order
Photo Part No Description Price (each) Stock
173866 COMPLETE BRAKE OIL TANK $47.65 To Order
Photo Part No Description Price (each) Stock
177896 UNION $115.48 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.05 IN STOCK
Photo Part No Description Price (each) Stock
179771 RUBBER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
110810 Pipe securing plate $1.15 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
163651 FLANGE $84.56 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
144552 UNION $14.28 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $10.65 To Order
Photo Part No Description Price (each) Stock
176293 BRAKE OIL TANK SUPPORT $133.17 To Order
Photo Part No Description Price (each) Stock
173871 UNION $7.50 To Order
Photo Part No Description Price (each) Stock
175212 PROTECTION BOOT $32.59 To Order
View All

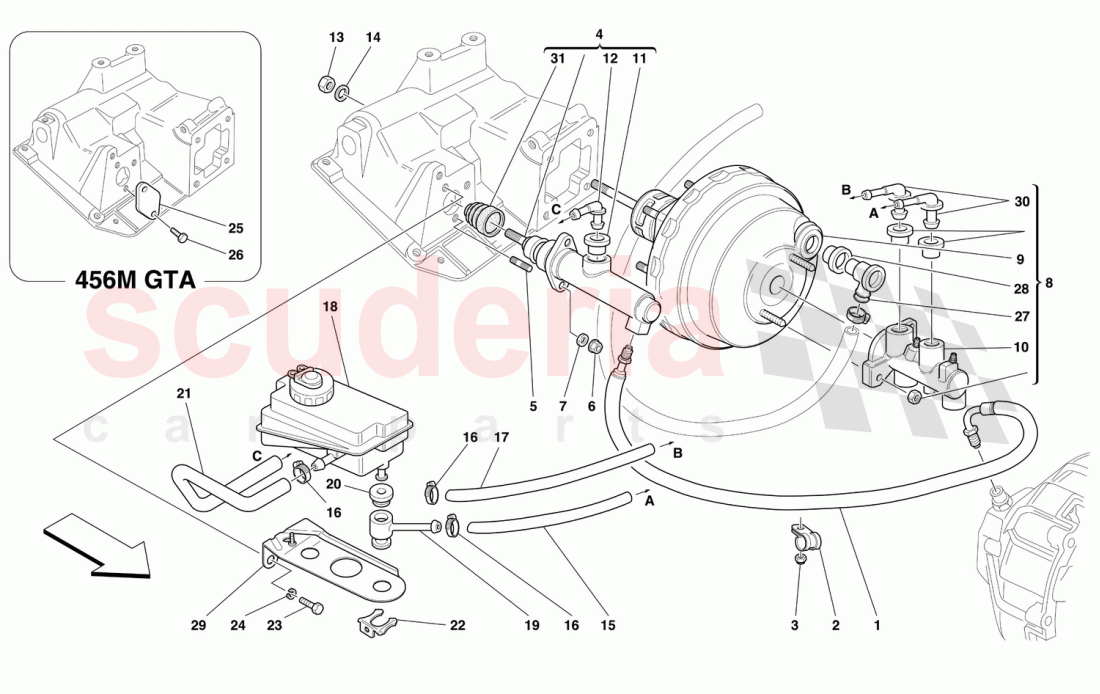

BRAKE AND CLUTCH HYDRAULIC SYSTEM -Valid for GD- of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 177896
UNION
Valid after stock exhaustion of 113116 		$115.48 2
- 184497
CONNECTOR
Not for 456M GTA 		$44.75 (50.5% off) 1
1 178276
CLUTCH CONTROL TUBE
Not for 456M GTA 		$272.77 1
2 10441590
BRACKET WITH SHEATH
Not for 456M GTA
IN STOCK 		$0.55 1
3 14059290
FLANGED NUT M6
Not for 456M GTA
IN STOCK 		$1.43 1
4 175211
Clutch master cylinder
Not for 456M GTA
IN STOCK 		$317.76 (12.1% off) 1
5 13516824
STUD BOLT
Not for 456M GTA 		$0.47 (62.4% off) 2
6 14040711
NUT
Not for 456M GTA
IN STOCK 		$0.42 2
7 12601374
WASHER
Not for 456M GTA
IN STOCK 		$0.02 (92% off) 2
8 177034
COMPLETE BRAKE BOOSTER 		$801.05 1
9 178528
BOOSTER 		- 1 Enquire
10 171782
BRAKE PUMP 		$770.19 1
11 175189
SEAT RING
Not for 456M GTA
IN STOCK 		$24.05 (17.7% off) 1
12 184497
CONNECTOR
Not for 456M GTA / Not as spare part now / Replaced by 184497 		$44.75 (50.5% off) 1
13 147985
NUT
IN STOCK 		$0.15 (70% off) 4
14 12601374
WASHER
IN STOCK 		$0.02 (92% off) 4
15 211377
RUBBER PIPE 		$9.29 (27.1% off) 1
16 13432070
HOSE COLLAR
For 456M GTA Q.ty 4
IN STOCK 		$0.57 (46.7% off) 6
17 114263
RUBBER PIPE 		$73.80 1
18 173866
COMPLETE BRAKE OIL TANK
LIQUID 		$47.65 (13.4% off) 1
19 177896
UNION 		$115.48 2
20 175189
SEAT RING
IN STOCK 		$24.05 (17.7% off) 2
21 179771
RUBBER PIPE
Not for 456M GTA 		- 1 Enquire
22 110810
Pipe securing plate 		$1.15 (34.3% off) 2
23 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
24 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
25 163651
FLANGE
Valid for 456M GTA 		$84.56 1
26 16043021
SCREW
Valid for 456M GTA 		$0.16 2
27 144552
UNION 		$14.28 1
28 151475
CABLE GROMMET 		$10.65 1
29 176293
BRAKE OIL TANK SUPPORT 		$133.17 1
30 173871
UNION 		$7.50 2
31 175212
PROTECTION BOOT
Not for 456M GTA 		$32.59 1
