Name: ANTIEVAPORATION DEVICE -Not for USA, CDN and AUS-
Rating: 4.8 (1 reviews)

ANTIEVAPORATION DEVICE -Not for USA, CDN and AUS- of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - ANTIEVAPORATION DEVICE -Not for USA, CDN and AUS-

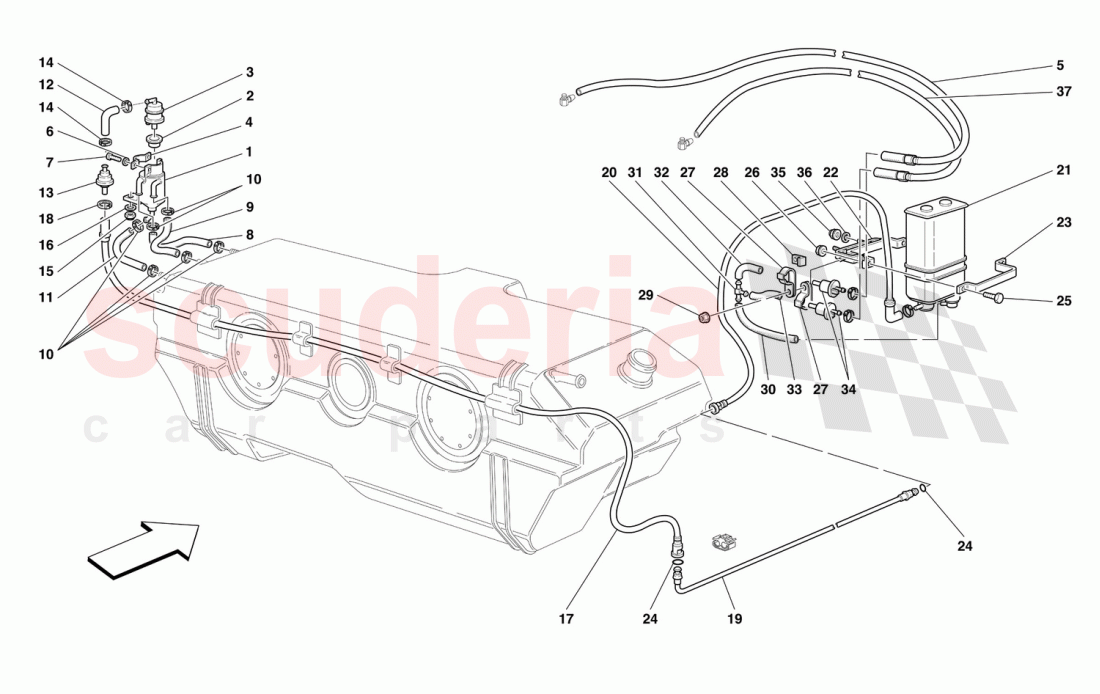

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	155407	DISAREATOR	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	155313	SEAL RING	$43.89	To Order

Photo	Part No	Description	Price (each)	Stock
	124193	ANTI FLOWING BACK VALVE	$92.92	To Order

Photo	Part No	Description	Price (each)	Stock
	155405	BRACKET	$24.47	To Order

Photo	Part No	Description	Price (each)	Stock
	155779	PIPE FROM VALVE TO LH MANIFOLD	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	13273911	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	116764	PIPE FROM FRONT FUEL TANK TO DISAREATOR	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	116767	PIPE FROM CENTRAL FUEL TANK TO DISAREATOR	$47.28	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	114880	PIPE FROM REAR FUEL TANK TO DISAREATOR	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	148464	SLEEVE	$107.77	To Order

Photo	Part No	Description	Price (each)	Stock
	170442	TANK VENTILATION VALVE	$222.16	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	155762	PIPE FROM VALVE TO INTERMEDIATE PIPE	$129.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	155763	INTERMEDIATE PIPE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	155765	PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	173791	CHARCOAL CARBON CANISTER	$382.70	To Order

Photo	Part No	Description	Price (each)	Stock
	156452	FRAME FASTENING FILTER	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	154385	COMPLETE BRACKET	$78.37	To Order

Photo	Part No	Description	Price (each)	Stock
	133956	O.R. Gasket	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	164437	FIXING BRACKET	$3.68	To Order

Photo	Part No	Description	Price (each)	Stock
	137716	PLATE	$21.44	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	114874	PIPE FROM FILTER TO UNION	$4.65	To Order

Photo	Part No	Description	Price (each)	Stock
	105990	3-WAYS UNION	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	164439	PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE	$81.69	To Order

Photo	Part No	Description	Price (each)	Stock
	164440	PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	162412	Flush Valve	$137.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	155778	PIPE FROM VALVE TO RH MANIFOLD	$121.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	155407	DISAREATOR	155407 DISAREATOR	$304.86	1
2	155313	SEAL RING	155313 SEAL RING	$43.89	1
3	124193	ANTI FLOWING BACK VALVE	124193 ANTI FLOWING BACK VALVE	$92.92	1
4	155405	BRACKET	155405 BRACKET	$24.47	1
5	155779	PIPE FROM VALVE TO LH MANIFOLD	155779 PIPE FROM VALVE TO LH MANIFOLD MANIFOLD	$134.77	1
6	14496324	WASHER	14496324 WASHER	$3.23	2
7	13273911	SCREW	13273911 SCREW	$0.18	2
8	116764	PIPE FROM FRONT FUEL TANK TO DISAREATOR	116764 PIPE FROM FRONT FUEL TANK TO DISAREATOR TO DISAERATOR	$50.15	1
9	116767	PIPE FROM CENTRAL FUEL TANK TO DISAREATOR	116767 PIPE FROM CENTRAL FUEL TANK TO DISAREATOR TANK TO DISAERATOR	$47.28	1
10	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	6
11	114880	PIPE FROM REAR FUEL TANK TO DISAREATOR	114880 PIPE FROM REAR FUEL TANK TO DISAREATOR TO DISAERATOR	$48.12	1
12	148464	SLEEVE	148464 SLEEVE	$107.77	1
13	170442	TANK VENTILATION VALVE	170442 TANK VENTILATION VALVE	$222.16	1
14	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	2
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
16	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
17	155762	PIPE FROM VALVE TO INTERMEDIATE PIPE	155762 PIPE FROM VALVE TO INTERMEDIATE PIPE INTERMEDIATE PIPE	$129.39	1
18	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	1
19	155763	INTERMEDIATE PIPE	155763 INTERMEDIATE PIPE	$78.61	1
20	155765	PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER	155765 PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER PIPE TO VAPOR FILTER	$286.67	1
21	173791	CHARCOAL CARBON CANISTER	173791 CHARCOAL CARBON CANISTER	$382.70 MSRP: ~~606.17~~ (36.9% off)	1
22	156452	FRAME FASTENING FILTER	156452 FRAME FASTENING FILTER BRACKET	$33.68	1
23	154385	COMPLETE BRACKET	154385 COMPLETE BRACKET	$78.37	1
24	133956	O.R. Gasket	133956 O.R. Gasket	$0.99 MSRP: ~~1.35~~ (26.7% off)	4
25	81591700	SCREW	81591700 SCREW	$2.22	2
26	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
27	164437	FIXING BRACKET	164437 FIXING BRACKET	$3.68	2
28	137716	PLATE	137716 PLATE	$21.44	1
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
30	114874	PIPE FROM FILTER TO UNION	114874 PIPE FROM FILTER TO UNION	$4.65 MSRP: ~~6.19~~ (24.9% off)	1
31	105990	3-WAYS UNION	105990 3-WAYS UNION	$0.92	1
32	164439	PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE	164439 PIPE FROM UNION TO UPPER ANTIEVAPORATION VALVE UPPER ANTIEVAPORATION VALVE /	$81.69	1
33	164440	PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE	164440 PIPE FROM UNION TO LOWER ANTIEVAPORATION VALVE LOWER ANTIEVAPORATION VALVE	$39.17	1
34	162412	Flush Valve	162412 Flush Valve	$137.98	2
35	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
36	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
37	155778	PIPE FROM VALVE TO RH MANIFOLD	155778 PIPE FROM VALVE TO RH MANIFOLD MANIFOLD	$121.93	1
