Fuel Tank -Valid For Usa M.y. 2000, Usa M.y. 2001, Cdn M.y. 2000 And Cdn M.y. 2001-

Ferrari 456 M GT/GTA

Find Your Part

Ferrari 456 M GT/GTA - FUEL TANK -Valid for USA M.Y. 2000, USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
183826 FUEL TANK Enquire To Order
Photo Part No Description Price (each) Stock
168238 COMPLETE FUEL LEVEL INDICATOR CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
121435 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
182049 FUEL DISAREATOR Enquire To Order
Photo Part No Description Price (each) Stock
182050 UNION Enquire To Order
Photo Part No Description Price (each) Stock
182403 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
180498 UNION-TANK CONNECTING PIPE Enquire To Order
Photo Part No Description Price (each) Stock
11449470 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
226448 COMPLETE PLUG Enquire To Order
Photo Part No Description Price (each) Stock
223707 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
13274472 SCREW -M5 X 20- -For carbon fibre surround- Enquire IN STOCK
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
182397 VAPOR EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR Enquire IN STOCK
Photo Part No Description Price (each) Stock
193286 WATER EXHAUST TUBE Enquire To Order
Photo Part No Description Price (each) Stock
13126170 CLAMP Enquire IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
181365 FUEL TANK FASTENER Enquire To Order
Photo Part No Description Price (each) Stock
213177 THREADED TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
264555 SPLIT PIN Enquire To Order
Photo Part No Description Price (each) Stock
103447 PIN Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire IN STOCK
Photo Part No Description Price (each) Stock
264555 SPLIT PIN Enquire To Order
Photo Part No Description Price (each) Stock
156679 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
156680 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
159146 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
156682 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
159147 RUBBER SHIM Enquire To Order
Photo Part No Description Price (each) Stock
157411 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
157412 RUBBER THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
65971000 LOWER SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
63965800 PLUG Enquire IN STOCK
Photo Part No Description Price (each) Stock
125769 Water Temperature Transmitter Enquire IN STOCK
Photo Part No Description Price (each) Stock
148045 FUEL DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
123622 O-Ring Enquire IN STOCK
Photo Part No Description Price (each) Stock
179321 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
62943200 RUBBER PROTECTION Enquire IN STOCK
Photo Part No Description Price (each) Stock
65774200 NUT WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
12648978 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
81591700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
64337500 FRONT RH HEAT PROTECTION SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
64337700 REAR RH HEAT PROTECTION SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
64337600 FRONT LH HEAT PROTECTION SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
64337800 REAR LH HEAT PROTECTION SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
65460500 SHIELD FOR TANK PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
154802 GASKET Enquire IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
181180 R.H. VALVE Enquire To Order
Photo Part No Description Price (each) Stock
181183 L.H. FLOAT VALVE Enquire To Order
Photo Part No Description Price (each) Stock
195049 Gasket Enquire IN STOCK
Photo Part No Description Price (each) Stock
66212600 REINFORCEMENT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
184274 THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
184275 THICKNESS Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire IN STOCK
Photo Part No Description Price (each) Stock
14496429 Washer Enquire To Order
Photo Part No Description Price (each) Stock
14622387 CAP Enquire IN STOCK
Photo Part No Description Price (each) Stock
184206 GROUND CABLE Enquire To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY Enquire IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER Enquire IN STOCK
View All

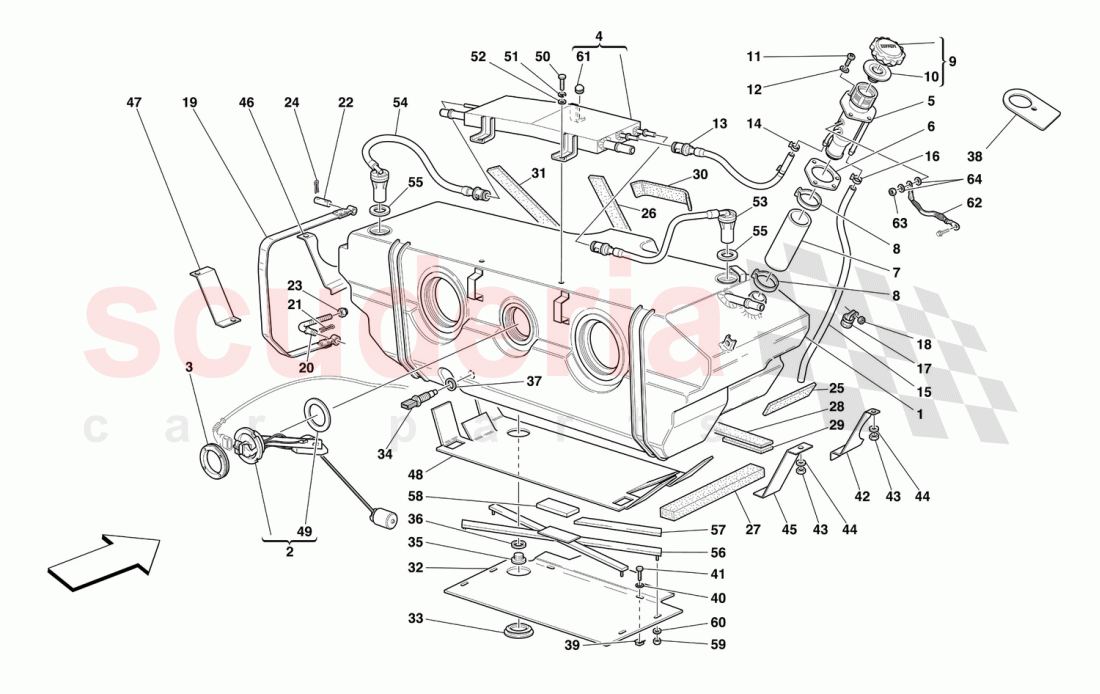

FUEL TANK -Valid for USA M.Y. 2000, USA M.Y. 2001, CDN M.Y. 2000 and CDN M.Y. 2001- of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 183826
FUEL TANK 		- 1 Enquire
1 183826
FUEL TANK
Not as spare part now / Replaced by 183826 		- 1 Enquire
2 168238
COMPLETE FUEL LEVEL INDICATOR CONTROL
CONTROL 		- 1 Enquire
3 121435
RING NUT 		- 1 Enquire
4 182049
FUEL DISAREATOR 		- 1 Enquire
5 182050
UNION 		- 1 Enquire
6 182403
GASKET 		- 1 Enquire
7 180498
UNION-TANK CONNECTING PIPE
PIPE 		- 1 Enquire
8 11449470
COLLAR 		- 2 Enquire
9 226448
COMPLETE PLUG 		- 1 Enquire
10 223707
GASKET 		- 1 Enquire
11 13274472
SCREW -M5 X 20- -For carbon fibre surround-
IN STOCK 		- 3 Enquire
12 12604178
Washer 		- 3 Enquire
13 182397
VAPOR EXHAUST PIPE 		- 1 Enquire
14 13432070
HOSE COLLAR
IN STOCK 		- 1 Enquire
15 193286
WATER EXHAUST TUBE 		- 1 Enquire
16 13126170
CLAMP
IN STOCK 		- 1 Enquire
17 291225
P clip Bracket With Sheath
IN STOCK 		- 1 Enquire
18 14059290
FLANGED NUT M6
IN STOCK 		- 1 Enquire
19 181365
FUEL TANK FASTENER 		- 2 Enquire
20 213177
THREADED TIE-ROD 		- 2 Enquire
21 264555
SPLIT PIN 		- 2 Enquire
22 103447
PIN 		- 2 Enquire
23 104030
NYLOC NUT M8 X 1.25 X 9.5
IN STOCK 		- 2 Enquire
24 264555
SPLIT PIN 		- 4 Enquire
25 156679
RUBBER THICKNESS 		- 1 Enquire
26 156680
RUBBER THICKNESS 		- 2 Enquire
27 159146
RUBBER THICKNESS 		- 2 Enquire
28 156682
RUBBER THICKNESS 		- 1 Enquire
29 159147
RUBBER SHIM 		- 2 Enquire
30 157411
RUBBER THICKNESS 		- 2 Enquire
31 157412
RUBBER THICKNESS 		- 6 Enquire
32 65971000
LOWER SHIELD 		- 1 Enquire
33 63965800
PLUG
IN STOCK 		- 1 Enquire
34 125769
Water Temperature Transmitter
IN STOCK 		- 1 Enquire
35 148045
FUEL DRAIN PLUG 		- 1 Enquire
36 123622
O-Ring
IN STOCK 		- 1 Enquire
37 179321
GASKET 		- 1 Enquire
38 62943200
RUBBER PROTECTION
IN STOCK 		- 1 Enquire
39 65774200
NUT WITH CAGE 		- 6 Enquire
40 12648978
WASHER
IN STOCK 		- 6 Enquire
41 81591700
SCREW 		- 6 Enquire
42 64337500
FRONT RH HEAT PROTECTION SHIELD 		- 1 Enquire
43 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		- 8 Enquire
44 12638124
WASHER
IN STOCK 		- 8 Enquire
45 64337700
REAR RH HEAT PROTECTION SHIELD 		- 1 Enquire
46 64337600
FRONT LH HEAT PROTECTION SHIELD 		- 1 Enquire
47 64337800
REAR LH HEAT PROTECTION SHIELD 		- 1 Enquire
48 65460500
SHIELD FOR TANK PROTECTION 		- 1 Enquire
49 154802
GASKET
IN STOCK 		- 1 Enquire
50 10977524
SCREW 		- 2 Enquire
51 127494
WASHER
IN STOCK 		- 2 Enquire
52 12643724
WASHER
IN STOCK 		- 2 Enquire
53 181180
R.H. VALVE 		- 1 Enquire
54 181183
L.H. FLOAT VALVE 		- 1 Enquire
55 195049
Gasket
IN STOCK 		- 2 Enquire
56 66212600
REINFORCEMENT BRACKET 		- 1 Enquire
57 184274
THICKNESS 		- 4 Enquire
58 184275
THICKNESS 		- 1 Enquire
59 14059290
FLANGED NUT M6
IN STOCK 		- 4 Enquire
60 14496429
Washer 		- 4 Enquire
61 14622387
CAP
IN STOCK 		- 1 Enquire
62 184206
GROUND CABLE 		- 1 Enquire
63 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		- 1 Enquire
64 12637824
WASHER
IN STOCK 		- 2 Enquire
