Name: FLANGES AND AXLE SHAFT -Valid for 456M GTA-
Rating: 5.0 (1 reviews)

View All

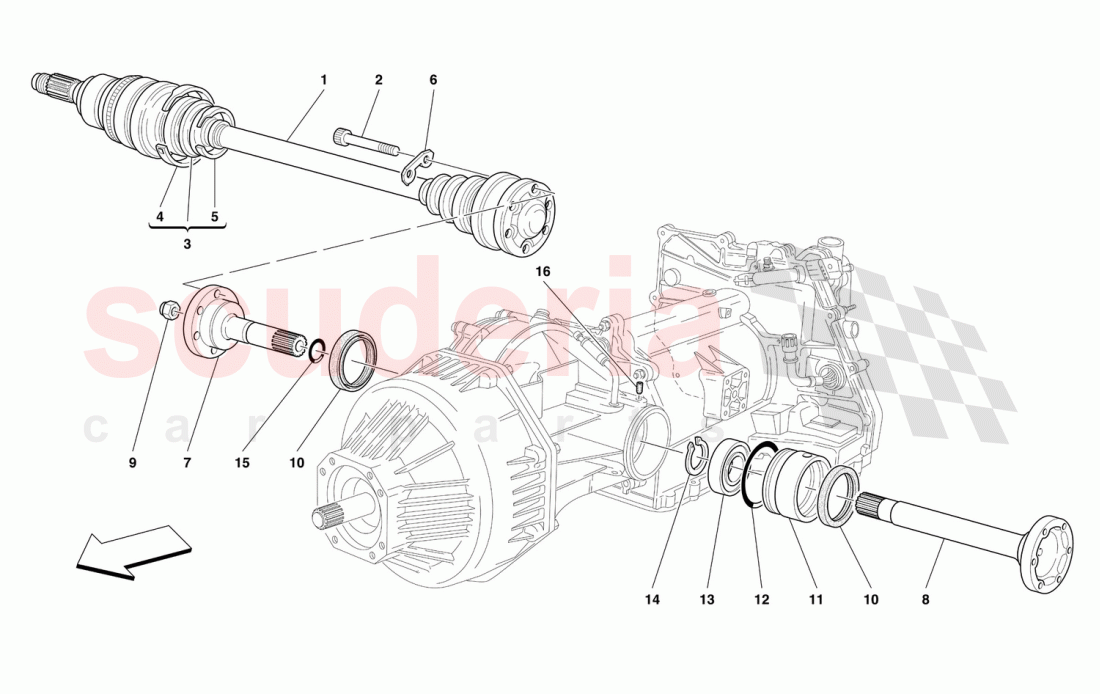

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	162464	AXLE SHAFT	$1,663.79	To Order

Photo	Part No	Description	Price (each)	Stock
	223916	Screw	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	70006022	GAITER REPLACEMENT KIT	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	172347	BIG CLAMP	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	154213	SMALL CLAMP	$4.59	To Order

Photo	Part No	Description	Price (each)	Stock
	222679	SHIM PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170958	R.H. FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173689	L.H. FLANGE	$371.04	To Order

Photo	Part No	Description	Price (each)	Stock
	169546	NUT	$254.74	To Order

Photo	Part No	Description	Price (each)	Stock
	177302	SEAL RING	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	172547	BAG FOR BEARINGS	$203.70	To Order

Photo	Part No	Description	Price (each)	Stock
	170837	O.R. GASKET	$34.52	To Order

Photo	Part No	Description	Price (each)	Stock
	173690	BEARING	$134.49	To Order

Photo	Part No	Description	Price (each)	Stock
	173691	Seeger Ring	$21.44	To Order

Photo	Part No	Description	Price (each)	Stock
	171621	O.R. GASKET	$38.12	To Order

Photo	Part No	Description	Price (each)	Stock
	173615	DOWEL	$38.12	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	70006021	Gaiter Replacement Kit	70006021 Gaiter Replacement Kit Wheel side	$176.49 MSRP: ~~241.74~~ (27% off)	2
1	162464	AXLE SHAFT	162464 AXLE SHAFT	$1,663.79	2
2	223916	Screw	223916 Screw	$2.63	12
3	70006022	GAITER REPLACEMENT KIT	70006022 GAITER REPLACEMENT KIT Gearbox side	$133.17 MSRP: ~~185.96~~ (28.4% off)	2
4	172347	BIG CLAMP	172347 BIG CLAMP	$7.83	4
5	154213	SMALL CLAMP	154213 SMALL CLAMP	$4.59 MSRP: ~~4.78~~ (4% off)	4
6	222679	SHIM PLATE	222679 SHIM PLATE	-	6	Enquire
7	170958	R.H. FLANGE	170958 R.H. FLANGE	-	1	Enquire
8	173689	L.H. FLANGE	173689 L.H. FLANGE	$371.04	1
9	169546	NUT	169546 NUT	$254.74	1
10	177302	SEAL RING	177302 SEAL RING	$256.72	2
11	172547	BAG FOR BEARINGS	172547 BAG FOR BEARINGS	$203.70	1
12	170837	O.R. GASKET	170837 O.R. GASKET	$34.52	1
13	173690	BEARING	173690 BEARING	$134.49	1
14	173691	Seeger Ring	173691 Seeger Ring	$21.44	1
15	171621	O.R. GASKET	171621 O.R. GASKET	$38.12	1
16	173615	DOWEL	173615 DOWEL	$38.12	1
