Driving Shaft - Connecting Rods And Pistons

Ferrari 456 M GT/GTA

Find Your Part

Ferrari 456 M GT/GTA - DRIVING SHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
140501 CRANKSHAFT $3,776.07 To Order
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $4.04 To Order
Photo Part No Description Price (each) Stock
164111 UPPER SHIM RING $137.66 To Order
Photo Part No Description Price (each) Stock
103877 BEARING $30.39 IN STOCK
Photo Part No Description Price (each) Stock
144876 TAB $5.61 To Order
Photo Part No Description Price (each) Stock
155613 COMPLETE CONNECTING ROD AND HAT $551.37 To Order
Photo Part No Description Price (each) Stock
150966 CONNECTING ROD $10.62 To Order
Photo Part No Description Price (each) Stock
170047 BUSHING $49.99 To Order
Photo Part No Description Price (each) Stock
106183 CONNECTING ROD HALF BEARING $24.05 To Order
Photo Part No Description Price (each) Stock
168173 PISTON WITH RINGS $433.23 To Order
Photo Part No Description Price (each) Stock
154717 GUDGEON PIN $37.17 To Order
Photo Part No Description Price (each) Stock
166901 STOP RING $6.68 To Order
Photo Part No Description Price (each) Stock
193051 Flywheel $1,395.98 IN STOCK
Photo Part No Description Price (each) Stock
201755 Bolt Hex Head M10 x 1.25 $1.18 IN STOCK
Photo Part No Description Price (each) Stock
215963 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
168565 Torsion Damper $2,405.28 IN STOCK
Photo Part No Description Price (each) Stock
140925 SCREW $128.87 IN STOCK
Photo Part No Description Price (each) Stock
140922 WASHER $6.50 To Order
Photo Part No Description Price (each) Stock
173535 PISTONS RINGS SET $344.31 To Order
Photo Part No Description Price (each) Stock
111540 PLUG $44.94 To Order
View All

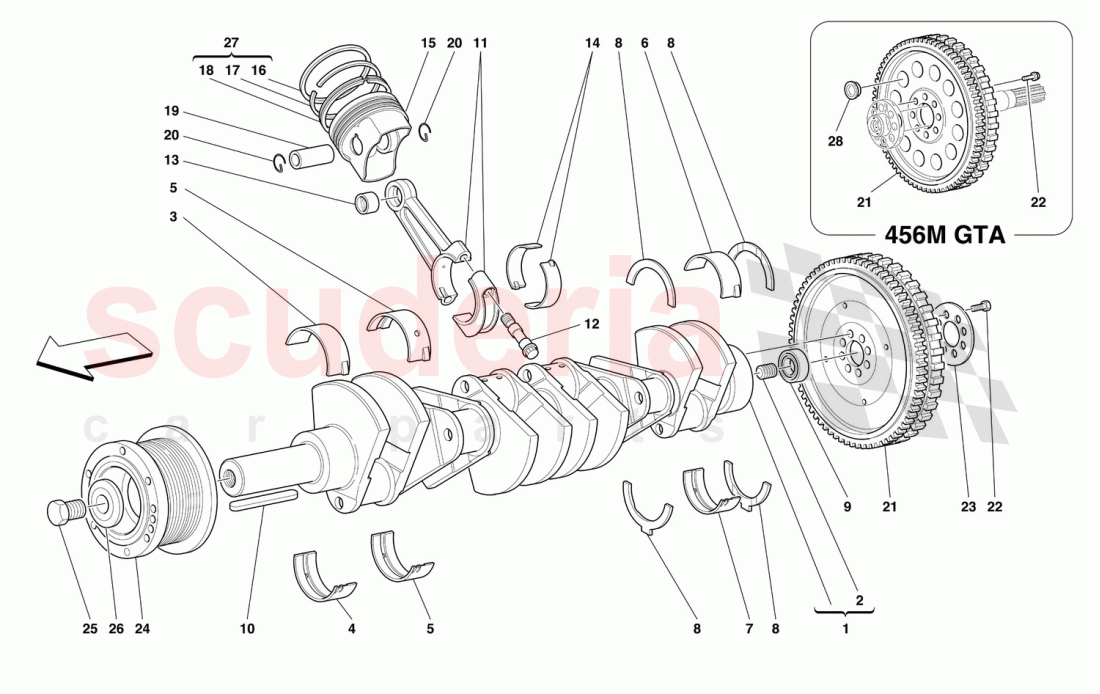

DRIVING SHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 456 M GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 175690
TORSION DAMPER
Valid for 456M GTA 		$449.38 1
- 170774
ENGINE FLYWHEEL
Valid for 456M GTA 		$1,187.39 1
- 155750
Screw: (mm 1,25 thread) -For
Valid for 456M GTA 		$27.62 8
- 106185
2nd undersize 0,508 mm on Ø
2nd UNDERSIZE mm 0.508 		- - Enquire
- 106184
1st undersize 0,254 mm. on Ø
1st UNDERSIZE mm 0.254 		- - Enquire
- 164109
LOWER SHIM RING
1st OVERSIZE mm 0.127 / Not as spare part / With the complete series 173485 		- - Enquire
- 164110
LOWER SHIM RING
2nd OVERSIZE mm 0,254 / Not as spare part / With the complete series 173486 		- - Enquire
- 164113
UPPER SHIM RING
2nd OVERSIZE mm 0,254 / Not as spare part / With the complete series 173486 		- - Enquire
- 164108
LOWER SHIM RING
Not as spare part / With the complete series 173484 		$137.66 (30.6% off) 2
- 173486
COMPLETE HALF-BEARING SET
2nd UNDERSIZE mm. 0,508 		$1,983.27 1
- 164112
UPPER SHIM RING
1st OVERSIZE mm 0.127 / Not as spare part / With the complete series 173485 		- - Enquire
- 173484
HALF-BEARINGS COMPLETE SERIES
NOMINAL 		$1,432.91 1
- 173485
COMPLETE HALF-BEARING SET
1st UNDERSIZE mm. 0,254 		$1,983.27 1
1 140501
CRANKSHAFT 		$3,776.07 1
2 163528
THREADED PLUG 		$4.04 (4.9% off) 1
8 164111
UPPER SHIM RING
Not as spare part / With the complete series 173484 		$137.66 (30.6% off) 2
9 103877
BEARING
Not for 456M GTA
IN STOCK 		$30.39 1
10 144876
TAB 		$5.61 1
11 155613
COMPLETE CONNECTING ROD AND HAT
AND HAT 		$551.37 12
12 150966
CONNECTING ROD
TIGHTENING SCREW 		$10.62 24
13 170047
BUSHING 		$49.99 12
14 106183
CONNECTING ROD HALF BEARING 		$24.05 24
15 168173
PISTON WITH RINGS 		$433.23 12
19 154717
GUDGEON PIN 		$37.17 (20.6% off) 12
20 166901
STOP RING 		$6.68 (35.8% off) 24
21 193051
Flywheel
Not for 456M GTA
IN STOCK 		$1,395.98 (12.8% off) 1
22 201755
Bolt Hex Head M10 x 1.25
Not for 456M GTA
IN STOCK 		$1.18 (39.5% off) 8
23 215963
WASHER
Not for 456 GTA 		- 1 Enquire
24 168565
Torsion Damper
Not for 456M GTA
IN STOCK 		$2,405.28 (35.9% off) 1
25 140925
SCREW
IN STOCK 		$128.87 1
26 140922
WASHER 		$6.50 1
27 173535
PISTONS RINGS SET 		$344.31 12
28 111540
PLUG
Valid for 456M GTA 		$44.94 6
