Name: OUTSIDE GEARBOX CONTROLS -Not for 456M GTA-
Rating: 4.1 (1 reviews)

OUTSIDE GEARBOX CONTROLS -Not for 456M GTA- of Ferrari Ferrari 456 M GT/GTA

View All

Ferrari 456 M GT/GTA - OUTSIDE GEARBOX CONTROLS -Not for 456M GTA-

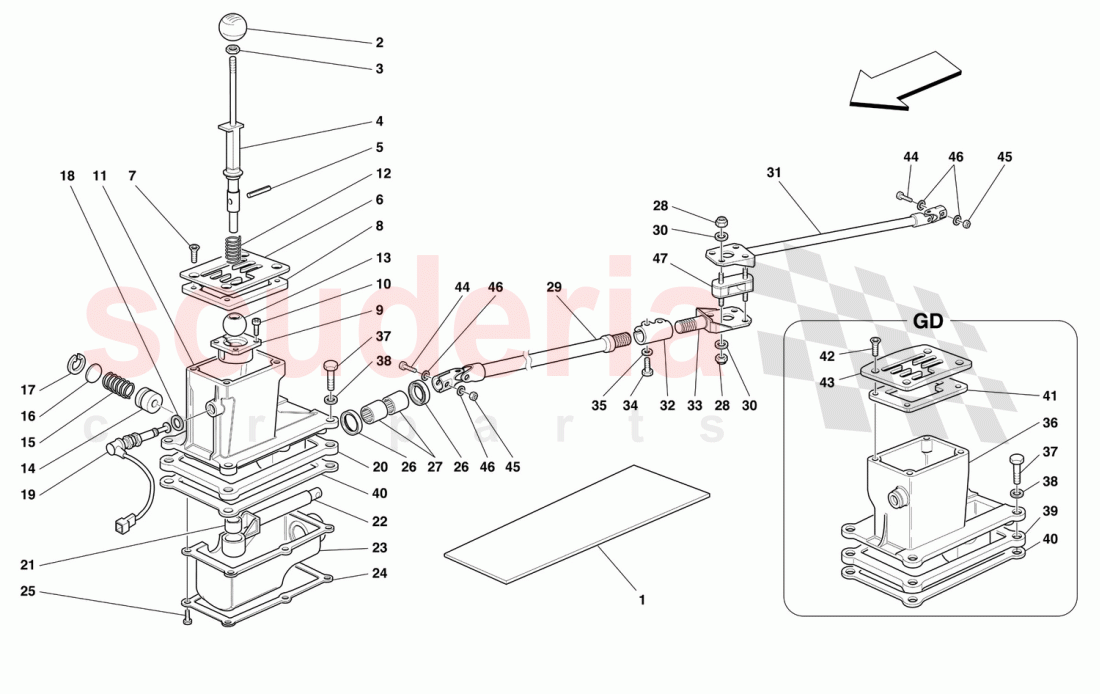

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	63964300	SHIELD	$39.52	To Order

Photo	Part No	Description	Price (each)	Stock
	156712	GEAR LEVER KNOB	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	108010	CHECKNUT	$27.31	To Order

Photo	Part No	Description	Price (each)	Stock
	178741	CONTROL LEVER	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	146994	PIN	$34.57	To Order

Photo	Part No	Description	Price (each)	Stock
	167127	GEAR SELECTOR	$2,127.55	To Order

Photo	Part No	Description	Price (each)	Stock
	209152	SCREW	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	232983	GASKET	$86.63	To Order

Photo	Part No	Description	Price (each)	Stock
	235980	BUSHING	$239.70	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	155435	TURRET -Not for GD-	$1,379.71	To Order

Photo	Part No	Description	Price (each)	Stock
	147561	SPRING	$110.47	To Order

Photo	Part No	Description	Price (each)	Stock
	154745	BALL	$294.95	To Order

Photo	Part No	Description	Price (each)	Stock
	154744	ROD	$134.77	To Order

Photo	Part No	Description	Price (each)	Stock
	231465	SPRING	$114.10	To Order

Photo	Part No	Description	Price (each)	Stock
	156101	SPRING RETAINER CAP	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	103326	SEEGER RING	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	115980A	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212959	GASKET	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	127446	BALL SEAT FOR JOINT	$30.42	To Order

Photo	Part No	Description	Price (each)	Stock
	155480	ROCKER IN TOWER	$372.17	To Order

Photo	Part No	Description	Price (each)	Stock
	156128	BELLOW	$164.19	To Order

Photo	Part No	Description	Price (each)	Stock
	156129	FRAME	$10.54	To Order

Photo	Part No	Description	Price (each)	Stock
	10444621	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	145773	GASKET	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	149907	BUSHING	$35.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	175111	FRONT CONTROL BAR FOR GEAR BOX	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	175112	REAR CONTROL BAR FOR GEAR BOX	$1,118.08	To Order

Photo	Part No	Description	Price (each)	Stock
	155473	TERMINAL	$287.55	To Order

Photo	Part No	Description	Price (each)	Stock
	169976	FASTENER FOR BAR	$357.92	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	157453	TURRET -Valid for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66535800	SCREW	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	212981	GASKET	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	159762	SHIM	$5.07	To Order

Photo	Part No	Description	Price (each)	Stock
	233413	GASKET	$834.37	To Order

Photo	Part No	Description	Price (each)	Stock
	156100	SCREW -Valid for GD-	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	242564	GEAR SELECTOR	$2,703.26	To Order

Photo	Part No	Description	Price (each)	Stock
	15212724	SCREW	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	163926	FASTENER BUSHING	$240.67	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	157962	BELLOW	157962 BELLOW Valid for GD	$177.51	1
-	157961	FRAME	157961 FRAME Valid for GD	$43.86	1
-	183982	BUSHING	183982 BUSHING As an alternative	$41.07	2
-	178692	ROD	178692 ROD Valid from car Ass. 30770	$8.83	1
-	179283	CONTROL LEVER	179283 CONTROL LEVER Valid for GD	$224.63	1
-	167127	GEAR SELECTOR	167127 GEAR SELECTOR Not for GD	$2,127.55	1
-	171763	GEARBOX CONTROL LEVER	171763 GEARBOX CONTROL LEVER Valid for GD / Not as spare part now / Replaced by 179283	$608.48	1
1	63964300	SHIELD	63964300 SHIELD	$39.52	1
2	156712	GEAR LEVER KNOB	156712 GEAR LEVER KNOB	$192.54	1
3	108010	CHECKNUT	108010 CHECKNUT	$27.31 MSRP: ~~29.30~~ (6.8% off)	1
4	178741	CONTROL LEVER	178741 CONTROL LEVER Not for GD	$641.82	1
5	146994	PIN	146994 PIN	$34.57	1
6	167127	GEAR SELECTOR	167127 GEAR SELECTOR Not for GD / Not as spare part now / Replaced by 167127	$2,127.55	1
7	209152	SCREW	209152 SCREW Not for GD	$9.60	4
8	232983	GASKET	232983 GASKET Not for GD	$86.63	1
9	235980	BUSHING	235980 BUSHING	$239.70	1
10	14303123	SCREW	14303123 SCREW	$0.06	4
11	155435	TURRET -Not for GD-	155435 TURRET -Not for GD- Not for GD	$1,379.71	1
12	147561	SPRING	147561 SPRING	$110.47	1
13	154745	BALL	154745 BALL	$294.95	1
14	154744	ROD	154744 ROD Valid till car Ass. Nr. 30769	$134.77	1
15	231465	SPRING	231465 SPRING	$114.10	1
16	156101	SPRING RETAINER CAP	156101 SPRING RETAINER CAP	$4.23	1
17	103326	SEEGER RING	103326 SEEGER RING	$0.24 MSRP: ~~0.80~~ (70% off)	1
18	84653800	WASHER	84653800 WASHER	$5.75	1
19	115980A	SWITCH	115980A SWITCH	-	1	Enquire
20	212959	GASKET	212959 GASKET Not for GD	$147.61	1
21	127446	BALL SEAT FOR JOINT	127446 BALL SEAT FOR JOINT	$30.42 MSRP: ~~37.64~~ (19.2% off)	1
22	155480	ROCKER IN TOWER	155480 ROCKER IN TOWER	$372.17	1
23	156128	BELLOW	156128 BELLOW Not for GD	$164.19	1
24	156129	FRAME	156129 FRAME Not for GD	$10.54	1
25	10444621	SCREW	10444621 SCREW	$0.21	6
26	145773	GASKET	145773 GASKET Valid till car Ass. Nr. 30769	$6.89 MSRP: ~~8.74~~ (21.2% off)	2
27	149907	BUSHING	149907 BUSHING	$35.25	2
28	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	$0.24 MSRP: ~~0.95~~ (74.7% off)	8
29	175111	FRONT CONTROL BAR FOR GEAR BOX	175111 FRONT CONTROL BAR FOR GEAR BOX GEAR BOX	$465.32	1
30	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	8
31	175112	REAR CONTROL BAR FOR GEAR BOX	175112 REAR CONTROL BAR FOR GEAR BOX GEAR BOX	$1,118.08	1
32	155473	TERMINAL	155473 TERMINAL	$287.55	1
33	169976	FASTENER FOR BAR	169976 FASTENER FOR BAR	$357.92	1
34	16043634	SCREW	16043634 SCREW	$0.23	2
35	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
36	157453	TURRET -Valid for GD-	157453 TURRET -Valid for GD- Valid for GD	-	1	Enquire
37	66535800	SCREW	66535800 SCREW	$5.87	4
38	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
39	212981	GASKET	212981 GASKET Valid for GD	$147.61	1
40	159762	SHIM	159762 SHIM Possible fitting	$5.07	1
41	233413	GASKET	233413 GASKET Valid for GD	$834.37	1
42	156100	SCREW -Valid for GD-	156100 SCREW -Valid for GD- Valid for GD	$3.05	4
43	242564	GEAR SELECTOR	242564 GEAR SELECTOR Valid for GD	$2,703.26	1
44	15212724	SCREW	15212724 SCREW	$1.56	2
45	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
46	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
47	163926	FASTENER BUSHING	163926 FASTENER BUSHING	$240.67	2
