HAND-BRAKE CONTROL -Valid for 456 GT- of Ferrari Ferrari 456 GT/GTA

View All

Ferrari 456 GT/GTA - HAND-BRAKE CONTROL -Valid for 456 GT-

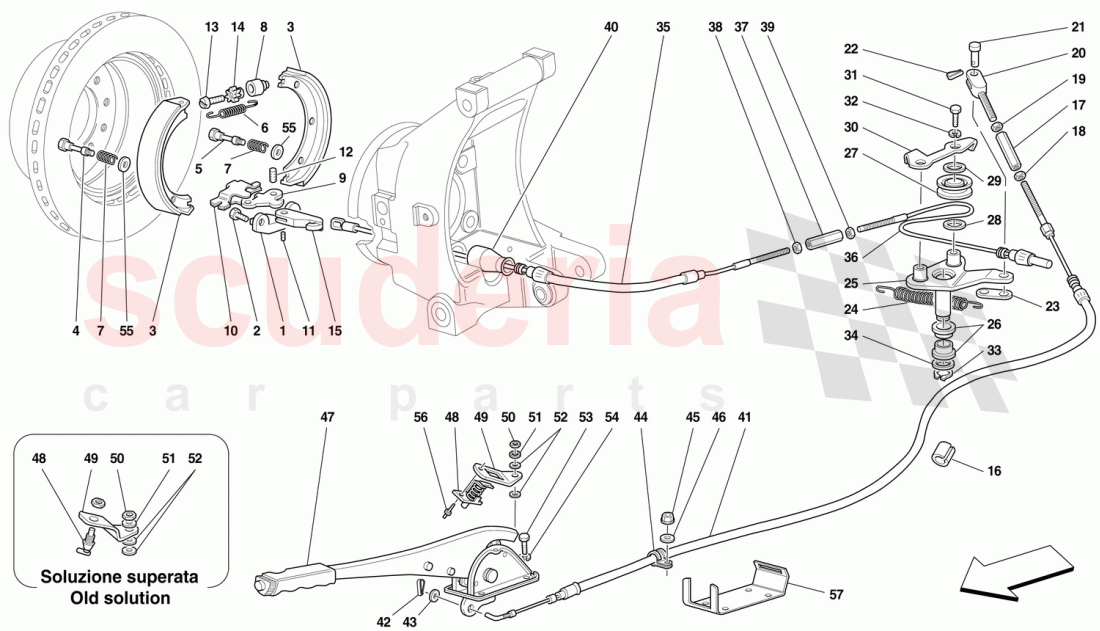

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142861	HUB HOLDER SMALL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170701	Complete Brake Shoe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156915	BRAKE SHOES FIXING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156916	BRAKE SHOES FIXING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	RETURN SPRING FOR BRAKE SHOES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101277	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101279	SEAT FOR ADJUSTMENT SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101280	Inner Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101281	Outer Control Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101282	FIXING FORK TO INNER LEVER PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101283	Pin for joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101285	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101286	Nut for adjusting screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105270	Inner lever control fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152913	RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152302	ADJUSTMENT SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102914	L.H. THREADED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152301	FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152303	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152279	LEVER -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152273	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175780	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152617	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109483	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152299	SMALL PLATE -Not for GD-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066476	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152300	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152297	R.H. REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152298	L. H. REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10091011	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10727314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143938	STOP LIMIT FOR HAND BRAKE SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154180	HAND-BRAKE CONTROL CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154095	HAND BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114318	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114320	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	50084409	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64051200	SUPPORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	63622400	WASHER	63622400 WASHER Valid from Ass. Nr. 22323	-	2	Enquire
-	169292	SWITCH	169292 SWITCH Valid from Ass. Nr. 22323	-	1	Enquire
-	169291	SUPPORT BRACKET	169291 SUPPORT BRACKET Valid from Ass. Nr. 22323	-	1	Enquire
-	629965	LINING -See relevant table for	629965 LINING -See relevant table for See relevant table for leather colours	-	1	Enquire
-	158694	SMALL PLATE -Valid for GD-	158694 SMALL PLATE -Valid for GD-	-	1	Enquire
-	156122	LEVER -Valid for GD-	156122 LEVER -Valid for GD-	-	1	Enquire
-	175780	PULLEY	175780 PULLEY Valid after stock exhaustion of 152274	-	2	Enquire
-	170701	Complete Brake Shoe	170701 Complete Brake Shoe As an alternative	-	4	Enquire
1	142861	HUB HOLDER SMALL BLOCK	142861 HUB HOLDER SMALL BLOCK	-	2	Enquire
2	142856	SCREW	142856 SCREW	-	4	Enquire
3	170701	Complete Brake Shoe	170701 Complete Brake Shoe	-	4	Enquire
4	156915	BRAKE SHOES FIXING SCREW	156915 BRAKE SHOES FIXING SCREW	-	2	Enquire
5	156916	BRAKE SHOES FIXING SCREW	156916 BRAKE SHOES FIXING SCREW	-	2	Enquire
6	101276	RETURN SPRING FOR BRAKE SHOES	101276 RETURN SPRING FOR BRAKE SHOES	-	4	Enquire
7	101277	SPRING	101277 SPRING	-	4	Enquire
8	101279	SEAT FOR ADJUSTMENT SCREW	101279 SEAT FOR ADJUSTMENT SCREW	-	2	Enquire
9	101280	Inner Control Lever	101280 Inner Control Lever	-	2	Enquire
10	101281	Outer Control Lever	101281 Outer Control Lever	-	2	Enquire
11	101282	FIXING FORK TO INNER LEVER PIN	101282 FIXING FORK TO INNER LEVER PIN	-	2	Enquire
12	101283	Pin for joint	101283 Pin for joint	-	2	Enquire
13	101285	SCREW	101285 SCREW	-	2	Enquire
14	101286	Nut for adjusting screw	101286 Nut for adjusting screw	-	2	Enquire
15	105270	Inner lever control fork	105270 Inner lever control fork	-	2	Enquire
16	152913	RUBBER HOSE	152913 RUBBER HOSE	-	1	Enquire
17	152302	ADJUSTMENT SLEEVE	152302 ADJUSTMENT SLEEVE	-	1	Enquire
18	16102314	NUT	16102314 NUT	-	1	Enquire
19	16102914	L.H. THREADED NUT	16102914 L.H. THREADED NUT	-	1	Enquire
20	152301	FORK	152301 FORK	-	1	Enquire
21	10050814	PIN	10050814 PIN	-	1	Enquire
22	10734208	SPLIT PIN	10734208 SPLIT PIN	-	1	Enquire
23	152303	SMALL PLATE	152303 SMALL PLATE	-	1	Enquire
24	104895	SPRING	104895 SPRING	-	1	Enquire
25	152279	LEVER -Not for GD-	152279 LEVER -Not for GD-	-	1	Enquire
26	152273	BUSHING	152273 BUSHING	-	2	Enquire
27	175780	PULLEY	175780 PULLEY	-	2	Enquire
28	152617	WASHER	152617 WASHER	-	2	Enquire
29	109483	WASHER	109483 WASHER	-	2	Enquire
30	152299	SMALL PLATE -Not for GD-	152299 SMALL PLATE -Not for GD-	-	1	Enquire
31	10977524	SCREW	10977524 SCREW	-	2	Enquire
32	11193274	WASHER	11193274 WASHER	-	2	Enquire
33	11066476	Seeger Ring	11066476 Seeger Ring	-	1	Enquire
34	152300	WASHER	152300 WASHER	-	1	Enquire
35	152297	R.H. REAR CABLE	152297 R.H. REAR CABLE	-	1	Enquire
36	152298	L. H. REAR CABLE	152298 L. H. REAR CABLE	-	1	Enquire
37	10091011	SLEEVE	10091011 SLEEVE	-	1	Enquire
38	10727314	NUT	10727314 NUT	-	1	Enquire
39	312592	NUT	312592 NUT	-	1	Enquire
40	143938	STOP LIMIT FOR HAND BRAKE SHEATH	143938 STOP LIMIT FOR HAND BRAKE SHEATH BRAKE SHEATH	-	2	Enquire
41	154180	HAND-BRAKE CONTROL CABLE	154180 HAND-BRAKE CONTROL CABLE	-	1	Enquire
42	264555	SPLIT PIN	264555 SPLIT PIN	-	1	Enquire
43	84653800	WASHER	84653800 WASHER	-	1	Enquire
44	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	3	Enquire
45	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
46	12639724	WASHER	12639724 WASHER	-	3	Enquire
47	154095	HAND BRAKE LEVER	154095 HAND BRAKE LEVER Without lining	-	1	Enquire
48	114318	SWITCH	114318 SWITCH Valid till Ass. Nr. 22322	-	1	Enquire
49	114320	SUPPORT BRACKET	114320 SUPPORT BRACKET Valid till Ass. Nr. 22322	-	1	Enquire
50	15896470	NUT	15896470 NUT	-	1	Enquire
51	12604178	Washer	12604178 Washer	-	1	Enquire
52	62769800	WASHER	62769800 WASHER Valid till Ass. Nr. 22322	-	2	Enquire
53	81591700	SCREW	81591700 SCREW	-	4	Enquire
54	127494	WASHER	127494 WASHER	-	4	Enquire
55	12625224	WASHER	12625224 WASHER	-	4	Enquire
56	50084409	RIVET	50084409 RIVET Valid from Ass. Nr. 22323	-	1	Enquire
57	64051200	SUPPORT	64051200 SUPPORT	-	1	Enquire
