BRAKE AND CLUTCH HYDRAULIC SYSTEM -Valid for GD-

Find Your Part

Ferrari 456 GT/GTA - BRAKE AND CLUTCH HYDRAULIC SYSTEM -Valid for GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156119 CLUTCH CONTROL TUBE $304.86 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder $339.17 To Order
Photo Part No Description Price (each) Stock
13516724 STUD $2.07 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
152075 BRAKE BOOSTER WITH SMALL TANK $2,221.41 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.16 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
211377 RUBBER PIPE $9.77 To Order
Photo Part No Description Price (each) Stock
157934 SCREW COLLAR $0.92 To Order
Photo Part No Description Price (each) Stock
157753 HOSE FROM PUMP TO BRAKE $13.63 To Order
Photo Part No Description Price (each) Stock
153176 COMPLETE PLUG $88.24 To Order
Photo Part No Description Price (each) Stock
153175 COMPLETEPAN FOR BRAKE LIQUID $2,459.85 To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR $44.22 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $25.66 To Order
Photo Part No Description Price (each) Stock
163651 FLANGE $83.57 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
175212 PROTECTION BOOT $34.39 To Order
View All

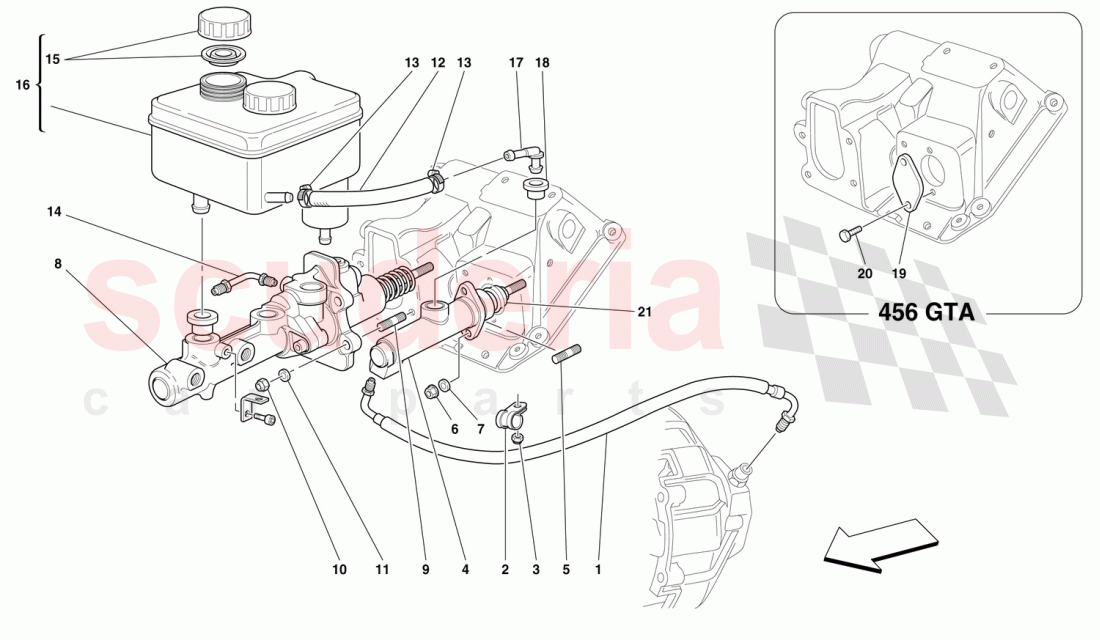

BRAKE AND CLUTCH HYDRAULIC SYSTEM -Valid for GD- of Ferrari Ferrari 456 GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 175189
SEAT RING
Valid for pump 175211 / Not for 456 GTA 		$25.66 (12.2% off) 1
- 184497
CONNECTOR
Valid for pump 175211 / Not for 456 GTA 		$44.22 (51.1% off) 1
- 175211
Clutch master cylinder
Replace the 150067 / Not for 456 GTA / Valid till stock exhaustion 		$339.17 (6.2% off) 1
1 156119
CLUTCH CONTROL TUBE
Not for 456 GTA 		$304.86 1
2 10441590
BRACKET WITH SHEATH
Not for 456 GTA 		$0.55 1
3 14059290
FLANGED NUT M6
Not for 456 GTA 		$1.51 1
4 175211
Clutch master cylinder
Not as spare part replaced by 123416 / Not for 456 GTA 		$339.17 (6.2% off) 1
5 13516724
STUD
Not for 456 GTA 		$2.07 2
6 14040711
NUT
Not for 456 GTA 		$0.41 2
7 12601374
WASHER
Not for 456 GTA 		$0.02 (92% off) 2
8 152075
BRAKE BOOSTER WITH SMALL TANK
TANK 		$2,221.41 1
9 13543624
STUD BOLT 		$0.49 4
10 147985
NUT 		$0.16 (68% off) 4
11 12601374
WASHER 		$0.02 (92% off) 2
12 211377
RUBBER PIPE
Not for 456 GTA 		$9.77 (23.3% off) 1
13 157934
SCREW COLLAR
Not for 456 GTA 		$0.92 (85% off) 2
14 157753
HOSE FROM PUMP TO BRAKE 		$13.63 1
15 153176
COMPLETE PLUG 		$88.24 2
16 153175
COMPLETEPAN FOR BRAKE LIQUID
LIQUID 		$2,459.85 1
17 184497
CONNECTOR
Valid for pump 123416 / Not for 456 GTA 		$44.22 (51.1% off) 1
18 175189
SEAT RING
Valid for pump 123416 / Not for 456 GTA 		$25.66 (12.2% off) 1
19 163651
FLANGE
Valid for 456 GTA 		$83.57 1
20 16043021
SCREW
Valid for 456 GTA 		$0.18 2
21 175212
PROTECTION BOOT
Not for 456 GTA 		$34.39 1
