Ferrari 456 GT/GTA - FUEL TANK

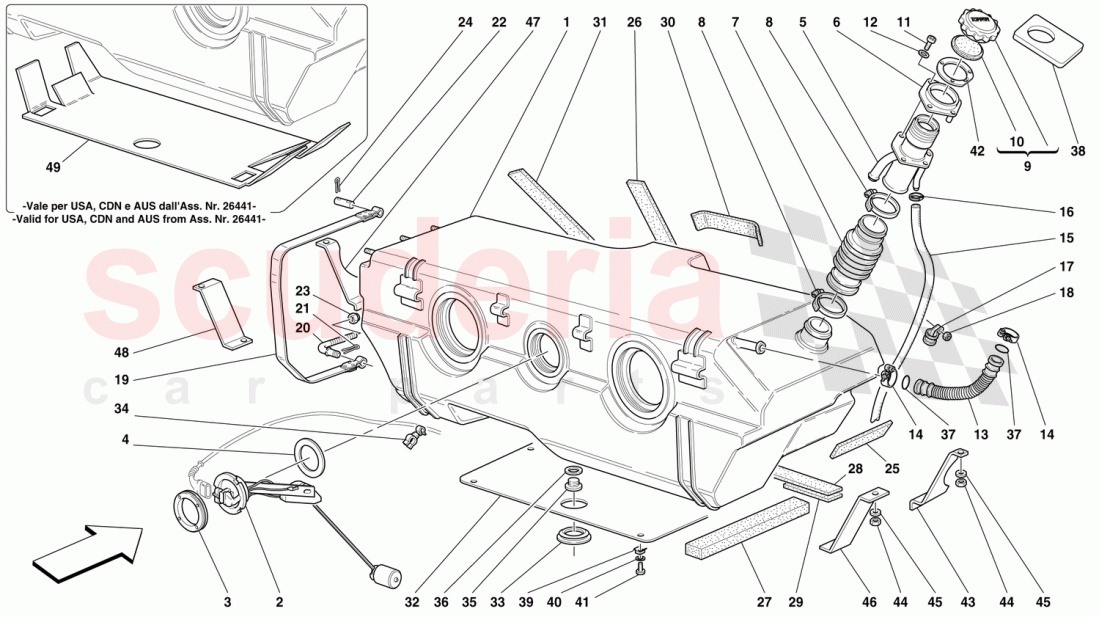

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	186167	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168238	COMPLETE FUEL LEVEL INDICATOR CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121435	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154802	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155677	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156612	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178061	UNION-TANK CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180585	Oil Tank Cap Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276470	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147246	VENT PIPE FROM TANK TO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432870	COLLAR FOR HOSE UNION	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	157416	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158345	FUEL TANK FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213177	THREADED TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103447	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156679	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156680	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159146	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156682	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159147	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157411	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157412	RUBBER THICKNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63939100	LOWER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63965800	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155887	FIXING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148045	FUEL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123622	O-Ring	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	142106	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62943200	RUBBER PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60659100	Caged Captive Nut 6mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160777	COUNTER FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64337500	FRONT RH HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64337700	REAR RH HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64337600	FRONT LH HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64337800	REAR LH HEAT PROTECTION SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65460500	SHIELD FOR TANK PROTECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	160777	COUNTER FLANGE	160777 COUNTER FLANGE Valid from Ass. Nr. 18344	-	1	Enquire
-	10441690	BRACKET WITH SHEATH	10441690 BRACKET WITH SHEATH Valid from Ass. Nr. 18344	-	2	Enquire
-	13432870	COLLAR FOR HOSE UNION ARRIVING SOON	13432870 COLLAR FOR HOSE UNION Valid after stock exaustion ARRIVING SOON	-	2	Enquire
-	161032	EXHAUST PLASTIC HOSE	161032 EXHAUST PLASTIC HOSE	-	1	Enquire
-	180585	Oil Tank Cap Gasket	180585 Oil Tank Cap Gasket Valid after stock exhaustion of 142792	-	1	Enquire
-	13276470	SCREW M6 X 20	13276470 SCREW M6 X 20 Valid from Ass. Nr. 18344	-	3	Enquire
-	160778	GASKET	160778 GASKET Valid from Ass. Nr. 18344	-	1	Enquire
-	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG Valid after stock exhaustion of 142790	-	1	Enquire
-	161021	UNION	161021 UNION Valid for not catalyzed cars / from Ass. Nr. 18344	-	1	Enquire
-	160774	UNION	160774 UNION Valid for catalyzed cars from / Ass. Nr. 18344	-	1	Enquire
-	159219	UNION	159219 UNION Valid for not catalyzed cars / till Ass. Nr. 18343	-	1	Enquire
-	186167	FUEL TANK	186167 FUEL TANK Valid after stock exhaustion	-	1	Enquire
1	186167	FUEL TANK	186167 FUEL TANK	-	1	Enquire
2	168238	COMPLETE FUEL LEVEL INDICATOR CONTROL	168238 COMPLETE FUEL LEVEL INDICATOR CONTROL CONTROL	-	1	Enquire
3	121435	RING NUT	121435 RING NUT	-	1	Enquire
4	154802	GASKET	154802 GASKET	-	1	Enquire
5	155677	UNION	155677 UNION Valid for catalyzed cars till / Ass. Nr. 18343	-	1	Enquire
6	156612	GASKET	156612 GASKET Valid till Ass. Nr. 18343	-	1	Enquire
7	178061	UNION-TANK CONNECTING PIPE	178061 UNION-TANK CONNECTING PIPE PIPE	-	1	Enquire
8	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	2	Enquire
9	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	-	1	Enquire
10	180585	Oil Tank Cap Gasket	180585 Oil Tank Cap Gasket	-	1	Enquire
11	13276470	SCREW M6 X 20	13276470 SCREW M6 X 20 Valid till Ass. Nr. 18343	-	3	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
13	147246	VENT PIPE FROM TANK TO	147246 VENT PIPE FROM TANK TO UNION	-	1	Enquire
14	13432870	COLLAR FOR HOSE UNION ARRIVING SOON	13432870 COLLAR FOR HOSE UNION Valid till stock exaustion ARRIVING SOON	-	2	Enquire
15	157416	VENT PIPE	157416 VENT PIPE Valid till Ass. Nr. 18343	-	1	Enquire
16	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
17	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH Valid till Ass. Nr. 18343	-	2	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
19	158345	FUEL TANK FASTENER	158345 FUEL TANK FASTENER	-	2	Enquire
20	213177	THREADED TIE-ROD	213177 THREADED TIE-ROD	-	2	Enquire
21	264555	SPLIT PIN	264555 SPLIT PIN	-	2	Enquire
22	103447	PIN	103447 PIN	-	2	Enquire
23	147985	NUT	147985 NUT	-	2	Enquire
24	264555	SPLIT PIN	264555 SPLIT PIN	-	4	Enquire
25	156679	RUBBER THICKNESS	156679 RUBBER THICKNESS	-	1	Enquire
26	156680	RUBBER THICKNESS	156680 RUBBER THICKNESS	-	2	Enquire
27	159146	RUBBER THICKNESS	159146 RUBBER THICKNESS	-	2	Enquire
28	156682	RUBBER THICKNESS	156682 RUBBER THICKNESS	-	1	Enquire
29	159147	RUBBER SHIM	159147 RUBBER SHIM	-	2	Enquire
30	157411	RUBBER THICKNESS	157411 RUBBER THICKNESS	-	2	Enquire
31	157412	RUBBER THICKNESS	157412 RUBBER THICKNESS	-	6	Enquire
32	63939100	LOWER SHIELD	63939100 LOWER SHIELD	-	1	Enquire
33	63965800	PLUG	63965800 PLUG	-	1	Enquire
34	155887	FIXING CLIP	155887 FIXING CLIP	-	8	Enquire
35	148045	FUEL DRAIN PLUG	148045 FUEL DRAIN PLUG	-	1	Enquire
36	123622	O-Ring ARRIVING SOON	123622 O-Ring ARRIVING SOON	-	1	Enquire
37	142106	GASKET	142106 GASKET	-	2	Enquire
38	62943200	RUBBER PROTECTION	62943200 RUBBER PROTECTION	-	1	Enquire
39	60659100	Caged Captive Nut 6mm	60659100 Caged Captive Nut 6mm	-	6	Enquire
40	12648978	WASHER	12648978 WASHER	-	6	Enquire
41	81591700	SCREW	81591700 SCREW	-	6	Enquire
42	160777	COUNTER FLANGE	160777 COUNTER FLANGE Valid till Ass. Nr. 18343	-	1	Enquire
43	64337500	FRONT RH HEAT PROTECTION SHIELD	64337500 FRONT RH HEAT PROTECTION SHIELD	-	1	Enquire
44	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	8	Enquire
45	12638124	WASHER	12638124 WASHER	-	8	Enquire
46	64337700	REAR RH HEAT PROTECTION SHIELD	64337700 REAR RH HEAT PROTECTION SHIELD	-	1	Enquire
47	64337600	FRONT LH HEAT PROTECTION SHIELD	64337600 FRONT LH HEAT PROTECTION SHIELD	-	1	Enquire
48	64337800	REAR LH HEAT PROTECTION SHIELD	64337800 REAR LH HEAT PROTECTION SHIELD	-	1	Enquire
49	65460500	SHIELD FOR TANK PROTECTION	65460500 SHIELD FOR TANK PROTECTION Valid for USA, CDN and AUS / from Ass. Nr. 26441	-	1	Enquire
