FUEL SUPPLY SYSTEM of Ferrari Ferrari 456 GT/GTA

View All

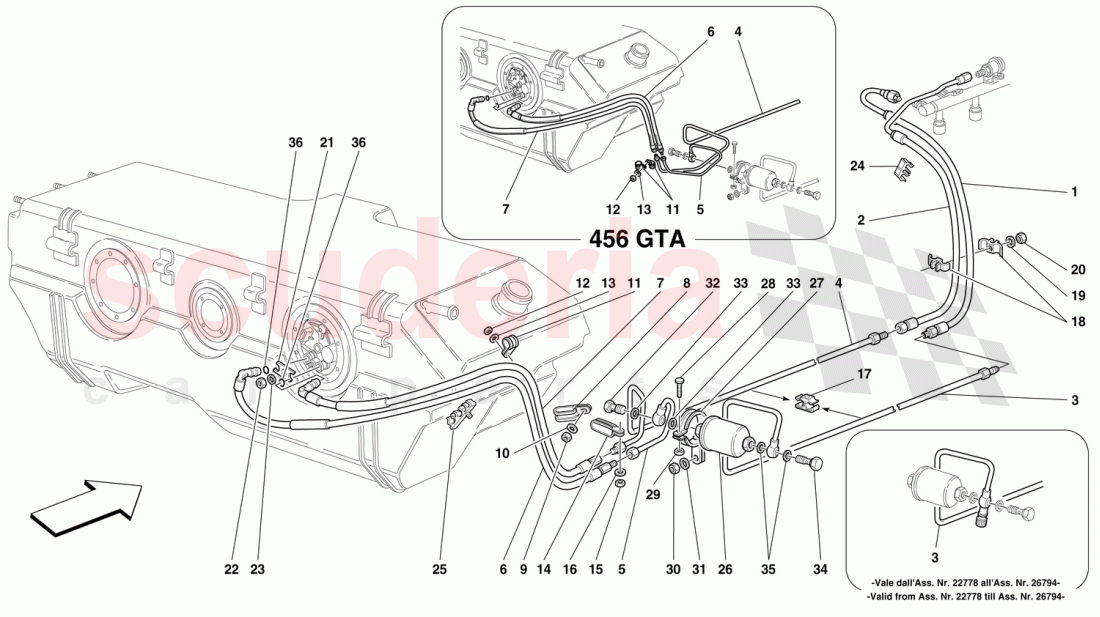

Ferrari 456 GT/GTA - FUEL SUPPLY SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	178527	R.H. DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174046	R.H. RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155253	R.H. DELIVERY RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156362	R.H. RETURN RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157584	R.H. REAR DELIVERY RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157586	R.H. REAR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174047	L.H. REAR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139512	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232649	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62658800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129316	R.H. SAFETY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156548	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186922	Fuel Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152885	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111644	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11270160	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	175150	R.H. REAR DELIVERY PIPE	175150 R.H. REAR DELIVERY PIPE Valid for 456 GTA	-	1	Enquire
-	175153	L.H. REAR RETURN PIPE	175153 L.H. REAR RETURN PIPE Valid for 456 GTA	-	1	Enquire
-	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH Valid for 456 GTA	-	4	Enquire
-	157586	R.H. REAR DELIVERY PIPE	157586 R.H. REAR DELIVERY PIPE Not as spare part replaced by 174814 / Not for 456 GTA	-	1	Enquire
-	174814	L.H. REAR RETURN PIPE	174814 L.H. REAR RETURN PIPE Not for 456 GTA	-	1	Enquire
-	164707	RH REAR DELIVERY AND LH REAR RETURN PIPE	164707 RH REAR DELIVERY AND LH REAR RETURN PIPE L.H. REAR RETURN PIPE / Not as spare part replaced by 175150 and 175153 / Valid for 456 GTA	-	2	Enquire
-	174813	R.H. REAR RETURN PIPE	174813 R.H. REAR RETURN PIPE Not for 456 GTA	-	1	Enquire
-	175151	L.H. REAR DELIVERY PIPE	175151 L.H. REAR DELIVERY PIPE Valid for 456 GTA	-	1	Enquire
-	175152	R.H. REAR RETURN PIPE	175152 R.H. REAR RETURN PIPE Valid for 456 GTA	-	1	Enquire
-	174816	L.H. REAR DELIVERY PIPE	174816 L.H. REAR DELIVERY PIPE Not for 456 GTA	-	1	Enquire
-	169626	L.H. REAR RIGID DELIVERY PIPE	169626 L.H. REAR RIGID DELIVERY PIPE Valid for 456 GTA	-	1	Enquire
-	174815	R.H. REAR DELIVERY PIPE	174815 R.H. REAR DELIVERY PIPE Not for 456 GTA	-	1	Enquire
-	169627	L.H. RETURN RIGID PIPE	169627 L.H. RETURN RIGID PIPE Valid for 456 GTA	-	1	Enquire
-	169634	R.H. REAR DELIVERY RIGID PIPE	169634 R.H. REAR DELIVERY RIGID PIPE Valid for 456 GTA	-	1	Enquire
-	156364	L.H. REAR RIGID DELIVERY PIPE	156364 L.H. REAR RIGID DELIVERY PIPE Not for 456 GTA	-	1	Enquire
-	150017	L.H. DELIVERY RIGID PIPE	150017 L.H. DELIVERY RIGID PIPE Valid from Ass. Nr. 26795	-	1	Enquire
-	169633	R.H. RETURN RIGID PIPE	169633 R.H. RETURN RIGID PIPE Valid for 456 GTA	-	1	Enquire
-	157585	L.H. RETURN RIGID PIPE	157585 L.H. RETURN RIGID PIPE Not for 456 GTA	-	1	Enquire
-	171766	R.H. DELIVERY RIGID PIPE	171766 R.H. DELIVERY RIGID PIPE Valid from Ass. Nr. 22778 and till / Ass. Nr. 26794	-	1	Enquire
-	155253	R.H. DELIVERY RIGID PIPE	155253 R.H. DELIVERY RIGID PIPE Valid from Ass. Nr. 26795	-	1	Enquire
-	150017	L.H. DELIVERY RIGID PIPE	150017 L.H. DELIVERY RIGID PIPE Valid till Ass. Nr. 22777	-	1	Enquire
-	171767	L.H. DELIVERY RIGID PIPE	171767 L.H. DELIVERY RIGID PIPE Valid from Ass. Nr. 22778 and till / Ass. Nr. 26794	-	1	Enquire
-	178526	L.H. DELIVERY PIPE	178526 L.H. DELIVERY PIPE	-	1	Enquire
-	174046	R.H. RETURN PIPE	174046 R.H. RETURN PIPE Replace the 155256	-	1	Enquire
-	174051	L.H. RETURN PIPE	174051 L.H. RETURN PIPE Replace the 150019	-	1	Enquire
-	178527	R.H. DELIVERY PIPE	178527 R.H. DELIVERY PIPE	-	1	Enquire
1	178527	R.H. DELIVERY PIPE	178527 R.H. DELIVERY PIPE Not as spare part replaced by 178527	-	1	Enquire
2	174046	R.H. RETURN PIPE	174046 R.H. RETURN PIPE Not as spare part replaced by 174046	-	1	Enquire
3	155253	R.H. DELIVERY RIGID PIPE	155253 R.H. DELIVERY RIGID PIPE Valid till Ass. Nr. 22777	-	1	Enquire
4	156362	R.H. RETURN RIGID PIPE	156362 R.H. RETURN RIGID PIPE Not for 456 GTA	-	1	Enquire
5	157584	R.H. REAR DELIVERY RIGID PIPE	157584 R.H. REAR DELIVERY RIGID PIPE Not for 456 GTA	-	1	Enquire
6	157586	R.H. REAR DELIVERY PIPE	157586 R.H. REAR DELIVERY PIPE Not as spare part replaced by 174815 / Not for 456 GTA	-	1	Enquire
7	174047	L.H. REAR DELIVERY PIPE	174047 L.H. REAR DELIVERY PIPE Not as spare part replaced by 174047 / Not for 456 GTA	-	1	Enquire
8	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	-	2	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
10	12643724	WASHER	12643724 WASHER	-	2	Enquire
11	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath Not for 456 GTA	-	4	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	10519424	WASHER	10519424 WASHER	-	2	Enquire
14	139512	BRACKET WITH SHEATH	139512 BRACKET WITH SHEATH Not for 456 GTA	-	2	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Not for 456 GTA	-	2	Enquire
16	12643724	WASHER	12643724 WASHER Not for 456 GTA	-	2	Enquire
17	232649	CLIP	232649 CLIP	-	12	Enquire
18	62658800	CLIP	62658800 CLIP	-	2	Enquire
19	12643724	WASHER	12643724 WASHER	-	1	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
21	129316	R.H. SAFETY PLATE	129316 R.H. SAFETY PLATE	-	2	Enquire
22	14054577	CAP NUT	14054577 CAP NUT	-	2	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
24	140727	CLIP	140727 CLIP	-	4	Enquire
25	156548	CLIP	156548 CLIP	-	2	Enquire
26	186922	Fuel Filter	186922 Fuel Filter	-	2	Enquire
27	152885	BRACKET WITH SHEATH	152885 BRACKET WITH SHEATH	-	2	Enquire
28	10902424	SCREW	10902424 SCREW	-	2	Enquire
29	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
30	147985	NUT	147985 NUT	-	2	Enquire
31	84653800	WASHER	84653800 WASHER	-	2	Enquire
32	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	2	Enquire
33	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	4	Enquire
34	111644	UNION	111644 UNION	-	2	Enquire
35	11270160	Washer	11270160 Washer	-	4	Enquire
36	127816	O-RING	127816 O-RING	-	4	Enquire
