FUEL PUMP

Find Your Part

Ferrari 456 GT/GTA - FUEL PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156596 COMPLETE FUEL PUMP $1,303.27 To Order
Photo Part No Description Price (each) Stock
126807 Anti Vibration Pad $42.51 To Order
Photo Part No Description Price (each) Stock
780250 FUEL FILTER $131.74 To Order
Photo Part No Description Price (each) Stock
15671101 SCREW $1.77 To Order
Photo Part No Description Price (each) Stock
126827 Pump exhaust pipe $91.45 To Order
Photo Part No Description Price (each) Stock
151661 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
11270160 Washer $1.70 To Order
Photo Part No Description Price (each) Stock
10183217 PLUG FOR UNION $90.05 To Order
Photo Part No Description Price (each) Stock
126838 RING NUT $235.50 To Order
Photo Part No Description Price (each) Stock
897696 Gasket $91.45 To Order
Photo Part No Description Price (each) Stock
155592 FUEL PUMP $824.49 To Order
Photo Part No Description Price (each) Stock
153184 SPRING $64.20 To Order
Photo Part No Description Price (each) Stock
153185 UNION $61.70 To Order
Photo Part No Description Price (each) Stock
153186 CLAMP $17.62 To Order
Photo Part No Description Price (each) Stock
153187 FUEL FILTER COVER $15.22 To Order
Photo Part No Description Price (each) Stock
153188 GASKET $30.37 To Order
Photo Part No Description Price (each) Stock
153189 PAN $51.66 To Order
Photo Part No Description Price (each) Stock
153183 FUEL FLOWING BACK PIPE $27.34 To Order
Photo Part No Description Price (each) Stock
153182 FUEL PUMP CABLES ASSY $119.24 To Order
Photo Part No Description Price (each) Stock
153181 FEEDING PIPE $30.37 To Order
Photo Part No Description Price (each) Stock
142848 Pump cover $91.27 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.56 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
899480 NUT $0.42 To Order
Photo Part No Description Price (each) Stock
10615274 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
14560480 CLAMP $3.58 To Order
View All

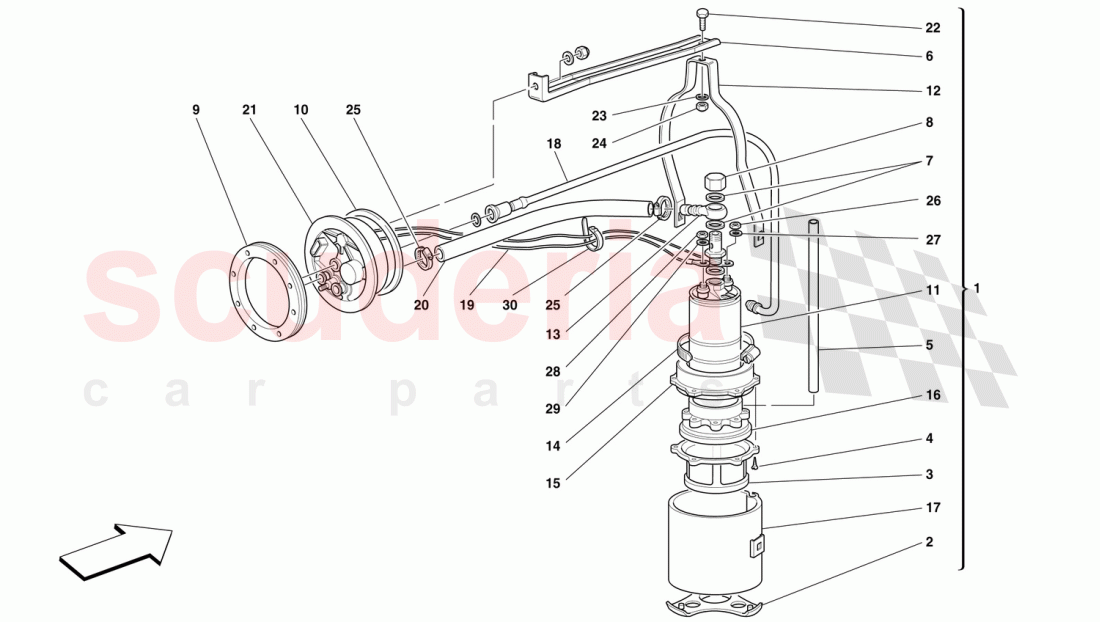

FUEL PUMP of Ferrari Ferrari 456 GT/GTA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 156596
COMPLETE FUEL PUMP 		$1,303.27 2
2 126807
Anti Vibration Pad 		$42.51 2
3 780250
FUEL FILTER 		$131.74 2
4 15671101
SCREW 		$1.77 12
5 126827
Pump exhaust pipe 		$91.45 2
6 151661
BRACKET 		- 2 Enquire
7 11270160
Washer 		$1.70 4
8 10183217
PLUG FOR UNION 		$90.05 2
9 126838
RING NUT 		$235.50 2
10 897696
Gasket 		$91.45 2
11 155592
FUEL PUMP 		$824.49 2
12 153184
SPRING 		$64.20 2
13 153185
UNION 		$61.70 2
14 153186
CLAMP 		$17.62 2
15 153187
FUEL FILTER COVER 		$15.22 2
16 153188
GASKET 		$30.37 (75.2% off) 2
17 153189
PAN 		$51.66 2
18 153183
FUEL FLOWING BACK PIPE 		$27.34 2
19 153182
FUEL PUMP CABLES ASSY 		$119.24 2
20 153181
FEEDING PIPE 		$30.37 2
21 142848
Pump cover 		$91.27 2
22 10977524
SCREW 		$0.15 2
23 12643724
WASHER 		$0.06 (88% off) 2
24 14059290
FLANGED NUT M6 		$1.51 2
25 13126970
COLLAR 		$1.56 2
26 15896470
NUT 		$7.33 1
27 12604178
Washer 		- 1 Enquire
28 899480
NUT 		$0.42 1
29 10615274
WASHER 		$0.10 (98.2% off) 1
30 14560480
CLAMP 		$3.58 2
