INJECTION - IGNITION SYSTEM of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - INJECTION - IGNITION SYSTEM

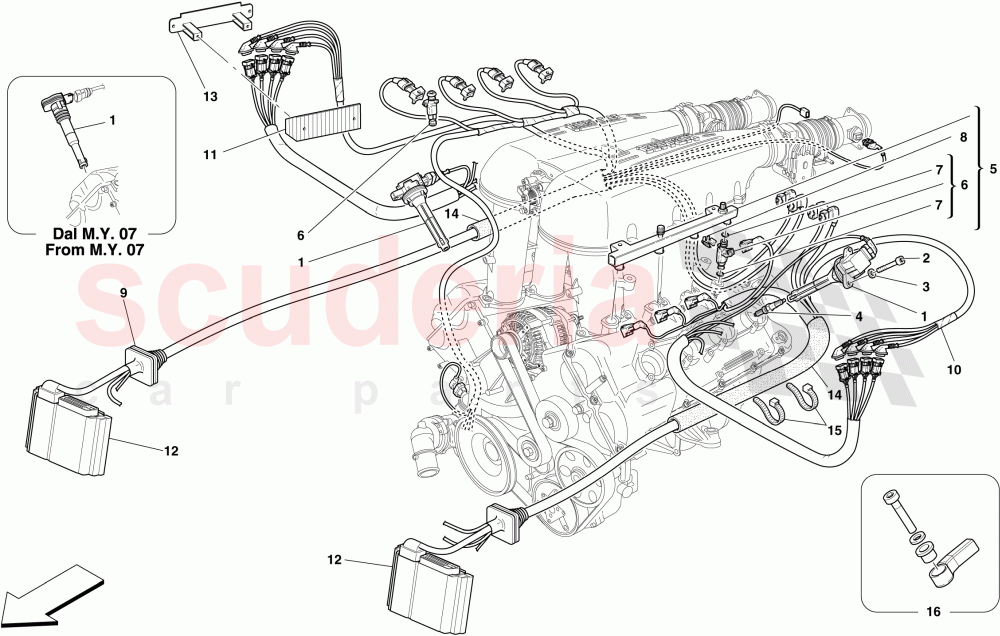

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	281449	Ignition Coil	Enquire	To Order
	281449	Ignition Coil	Enquire	To Order
	281449	Ignition Coil	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	201599	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	216543	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order
	191392	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order
	216542	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	191393	ELECTRO-INJECTOR	Enquire	To Order
	213635	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	INJECTORS RETENTION CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215268	RH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order
	221338	RH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order
	209438	RH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	209437	LH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order
	219905	LH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order
	215269	LH CYLINDER BANK INJECTION CONNECTOR CABLES	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	246747	IGNITION ECU	Enquire	To Order
	250922	IGNITION ECU	Enquire	To Order
	104284	IGNITION ECU	Enquire	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	200163	LH BRACKET	Enquire	To Order
	192535	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216545	PROTECTIVE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227941	COMPL. COIL SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	281449	Ignition Coil	281449 Ignition Coil Applicable from MY 07; Not for USA, CDN; Applicable from Ass. No. 69639	-	8	Enquire
1	281449	Ignition Coil	281449 Ignition Coil	-	8	Enquire
1	281449	Ignition Coil	281449 Ignition Coil Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 68460	-	8	Enquire
1	186914	IGNITION COIL	186914 IGNITION COIL For cylinders 3,4,5,6; Not for USA, CDN; Applicable up to Ass. No. 69638	-	4	Enquire
1	188504	IGNITION COIL	188504 IGNITION COIL For cylinders 1,2,7,8; Not for USA, CDN; Applicable up to Ass. No. 69638	-	4	Enquire
1	186914	IGNITION COIL	186914 IGNITION COIL For cylinders 3,4,5,6; Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	4	Enquire
1	188504	IGNITION COIL	188504 IGNITION COIL For cylinders 1,2,7,8; Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	4	Enquire
2	201599	SCREW	201599 SCREW	-	16	Enquire
3	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
4	192637	Spark Plug NGK ARRIVING SOON	192637 Spark Plug NGK ARRIVING SOON	-	8	Enquire
5	216543	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	216543 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS Applicable from MY 06; Applicable from engine No. 99608	-	1	Enquire
5	191392	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	191392 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS Applicable up to MY 06; Applicable up to engine No. 99607	-	1	Enquire
5	216542	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	216542 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS Applicable from MY 06; Applicable from engine No. 99608	-	1	Enquire
5	191390	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	191390 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS Applicable up to MY 06; Applicable up to engine No. 99607	-	1	Enquire
6	191393	ELECTRO-INJECTOR	191393 ELECTRO-INJECTOR Applicable up to MY 06; Applicable up to engine No. 99607	-	8	Enquire
6	213635	ELECTRO-INJECTOR	213635 ELECTRO-INJECTOR Applicable from MY 06; Applicable from engine No. 99608	-	8	Enquire
7	133902	O-Ring	133902 O-Ring	-	4	Enquire
8	144730	INJECTORS RETENTION CLIP	144730 INJECTORS RETENTION CLIP	-	8	Enquire
9	215268	RH CYLINDER BANK INJECTION CONNECTOR CABLES	215268 RH CYLINDER BANK INJECTION CONNECTOR CABLES Not for USA, CDN; Applicable up to Ass. No. 69638	-	1	Enquire
9	221338	RH CYLINDER BANK INJECTION CONNECTOR CABLES	221338 RH CYLINDER BANK INJECTION CONNECTOR CABLES Not for USA, CDN; Applicable from Ass. No. 69639	-	1	Enquire
9	209438	RH CYLINDER BANK INJECTION CONNECTOR CABLES	209438 RH CYLINDER BANK INJECTION CONNECTOR CABLES Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	1	Enquire
9	219904	RH CYLINDER BANK INJECTION CONNECTOR CABLES	219904 RH CYLINDER BANK INJECTION CONNECTOR CABLES Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 68460	-	1	Enquire
10	209437	LH CYLINDER BANK INJECTION CONNECTOR CABLES	209437 LH CYLINDER BANK INJECTION CONNECTOR CABLES Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	1	Enquire
10	219905	LH CYLINDER BANK INJECTION CONNECTOR CABLES	219905 LH CYLINDER BANK INJECTION CONNECTOR CABLES Applicable from MY 07; Applicable for USA, CDN; Applicable from Ass. No. 68460	-	1	Enquire
10	215269	LH CYLINDER BANK INJECTION CONNECTOR CABLES	215269 LH CYLINDER BANK INJECTION CONNECTOR CABLES Not for USA, CDN; Applicable up to Ass. No. 69638	-	1	Enquire
10	221339	LH CYLINDER BANK INJECTION CONNECTOR CABLES	221339 LH CYLINDER BANK INJECTION CONNECTOR CABLES Not for USA, CDN; Applicable from Ass. No. 69639	-	1	Enquire
12	246747	IGNITION ECU	246747 IGNITION ECU Applicable from MY 08; Applicable for J	-	2	Enquire
12	250922	IGNITION ECU	250922 IGNITION ECU Applicable from MY 09; Applicable for USA, CDN	-	2	Enquire
12	104284	IGNITION ECU	104284 IGNITION ECU Applicable up to MY 08; Not for USA, CDN; Applicable from Ass. No. 73460 up to Ass. No. 74556	-	2	Enquire
12	241764	IGNITION ECU	241764 IGNITION ECU Applicable from MY 08; Not for USA, CDN, J; Applicable from Ass. No. 74557	-	2	Enquire
12	230386	IGNITION ECU	230386 IGNITION ECU Not applicable for sound kit; Not for USA, CDN; Applicable up to Ass. No. 69627	-	2	Enquire
12	235220	IGNITION ECU	235220 IGNITION ECU Not for USA, CDN; Applicable from Ass. No. 69628 up to Ass. No. 73459	-	2	Enquire
12	227392	IGNITION ECU	227392 IGNITION ECU Taiwan; Applicable from MY 06; Applicable up to Ass. No. 69627	-	2	Enquire
12	235222	IGNITION ECU	235222 IGNITION ECU Taiwan; Applicable from Ass. No. 69628 up to Ass. No. 73459	-	2	Enquire
12	240791	IGNITION ECU	240791 IGNITION ECU Taiwan; Applicable from Ass. No. 73460	-	2	Enquire
12	224751	IGNITION ECU	224751 IGNITION ECU Germany; Applicable from MY 06; Applicable for sound kit	-	2	Enquire
12	241765	IGNITION ECU	241765 IGNITION ECU Applicable from MY 08; Applicable for USA, CDN; Applicable from Ass. No. 74557	-	2	Enquire
12	222251	IGNITION ECU	222251 IGNITION ECU Applicable from MY 06; Applicable for USA, CDN; Applicable up to Ass. No. 68459	-	2	Enquire
12	231042	IGNITION ECU	231042 IGNITION ECU Applicable from MY 07; Applicable for USA, CDN; Applicable up to Ass. No. 71293	-	2	Enquire
12	236837	IGNITION ECU	236837 IGNITION ECU Applicable from MY 07; No temperature sensors; Applicable up to MY 08; Applicable for USA, CDN; Applicable from Ass. No. 71294 up to Ass. No. 74556	-	2	Enquire
12	222264	IGNITION ECU	222264 IGNITION ECU Not for USA, CDN; Applicable from Ass. No. 62226 up to Ass. No. 69627	-	2	Enquire
12	216391	IGNITION ECU	216391 IGNITION ECU Applicable up to MY 06; Applicable for USA, CDN; Applicable for F1 gearbox	-	2	Enquire
12	218065	IGNITION ECU	218065 IGNITION ECU Not for USA, CDN; Applicable up to Ass. No. 62225; Not for F1 gearbox	-	2	Enquire
12	216390	IGNITION ECU	216390 IGNITION ECU Applicable up to MY 06; Applicable for USA, CDN; Not for F1 gearbox	-	2	Enquire
12	218064	IGNITION ECU	218064 IGNITION ECU Not for USA, CDN; Applicable up to Ass. No. 62225; Applicable for F1 gearbox	-	2	Enquire
13	200163	LH BRACKET	200163 LH BRACKET	-	1	Enquire
13	192535	RH BRACKET	192535 RH BRACKET	-	1	Enquire
14	216545	PROTECTIVE PIPE	216545 PROTECTIVE PIPE	-	2	Enquire
15	206739	CLAMP	206739 CLAMP	-	4	Enquire
16	227941	COMPL. COIL SHIELD	227941 COMPL. COIL SHIELD Applicable for CINA, USA, CDN	-	8	Enquire
