EVAPORATIVE EMISSIONS CONTROL SYSTEM of Ferrari Ferrari 430 Spider

View All

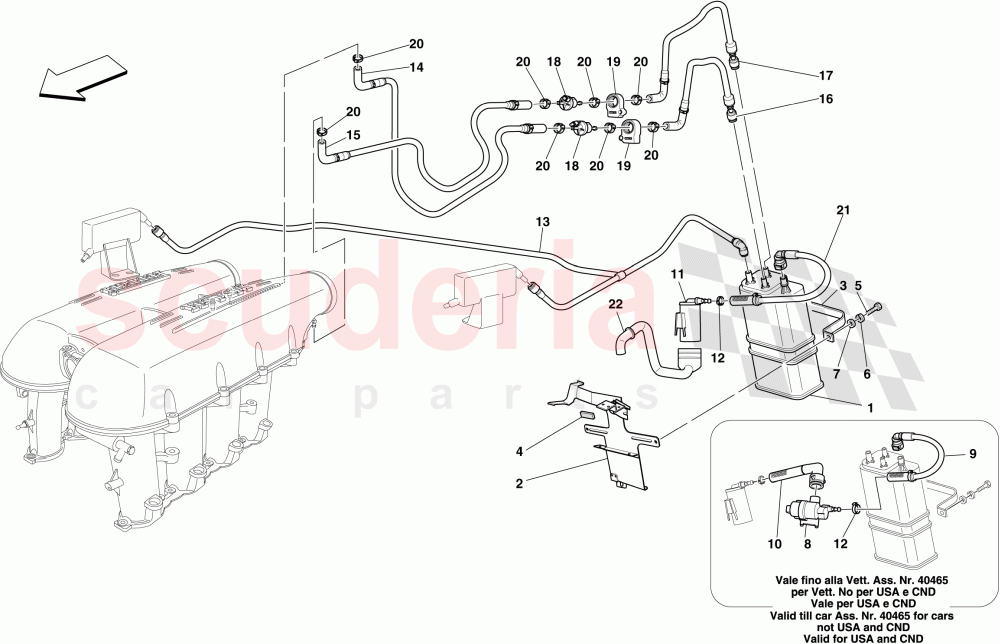

Ferrari 430 Spider - EVAPORATIVE EMISSIONS CONTROL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	209663	FILTER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180636	WRAPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180638	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251288	Diagnostic Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195288	COMPLETE PIPE WITH UNION	Enquire	To Order
	195288	COMPLETE PIPE WITH UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183221	OBD PUMP FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193852	PIPE FROM RH SEPARATOR TO LH SEPARATOR	Enquire	To Order
	252170	PIPE FROM RH SEPARATOR TO LH SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197689	RH PIPE COMPLETE WITH CONNECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197688	LH TUBE COMPLETE WITH CONNECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162412	Flush Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174623	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217919	COMPLETE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220981	AIR INTAKE PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	209663	FILTER MOUNTING BRACKET	209663 FILTER MOUNTING BRACKET	-	1	Enquire
3	180636	WRAPPER	180636 WRAPPER	-	1	Enquire
4	180638	RUBBER SHIM	180638 RUBBER SHIM	-	2	Enquire
5	81591700	SCREW	81591700 SCREW L. 14 mm	-	2	Enquire
6	12639724	WASHER	12639724 WASHER	-	2	Enquire
7	127494	WASHER	127494 WASHER	-	2	Enquire
8	251288	Diagnostic Pump	251288 Diagnostic Pump	-	1	Enquire
10	195288	COMPLETE PIPE WITH UNION	195288 COMPLETE PIPE WITH UNION Applicable for USA, CDN	-	1	Enquire
10	195288	COMPLETE PIPE WITH UNION	195288 COMPLETE PIPE WITH UNION Not for USA, CDN; Applicable up to Ass. No. 40465	-	1	Enquire
11	183221	OBD PUMP FILTER	183221 OBD PUMP FILTER	-	1	Enquire
12	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	2	Enquire
13	193852	PIPE FROM RH SEPARATOR TO LH SEPARATOR	193852 PIPE FROM RH SEPARATOR TO LH SEPARATOR Applicable up to Ass. No. 78239	-	1	Enquire
13	252170	PIPE FROM RH SEPARATOR TO LH SEPARATOR	252170 PIPE FROM RH SEPARATOR TO LH SEPARATOR Applicable from Ass. No. 78240	-	1	Enquire
14	197689	RH PIPE COMPLETE WITH CONNECTORS	197689 RH PIPE COMPLETE WITH CONNECTORS	-	1	Enquire
15	197688	LH TUBE COMPLETE WITH CONNECTORS	197688 LH TUBE COMPLETE WITH CONNECTORS	-	1	Enquire
18	162412	Flush Valve	162412 Flush Valve	-	2	Enquire
19	174623	BUSH	174623 BUSH	-	2	Enquire
20	13432070	HOSE COLLAR	13432070 HOSE COLLAR	-	8	Enquire
21	217919	COMPLETE PIPE	217919 COMPLETE PIPE Not for USA, CDN; Applicable from Ass. No. 40466 up to Ass. No. 73459	-	1	Enquire
22	220981	AIR INTAKE PIPE	220981 AIR INTAKE PIPE	-	1	Enquire
