HIGH POWER BOSE HI FI SYSTEM of Ferrari Ferrari 430 Spider

View All

Ferrari 430 Spider - HIGH POWER BOSE HI FI SYSTEM

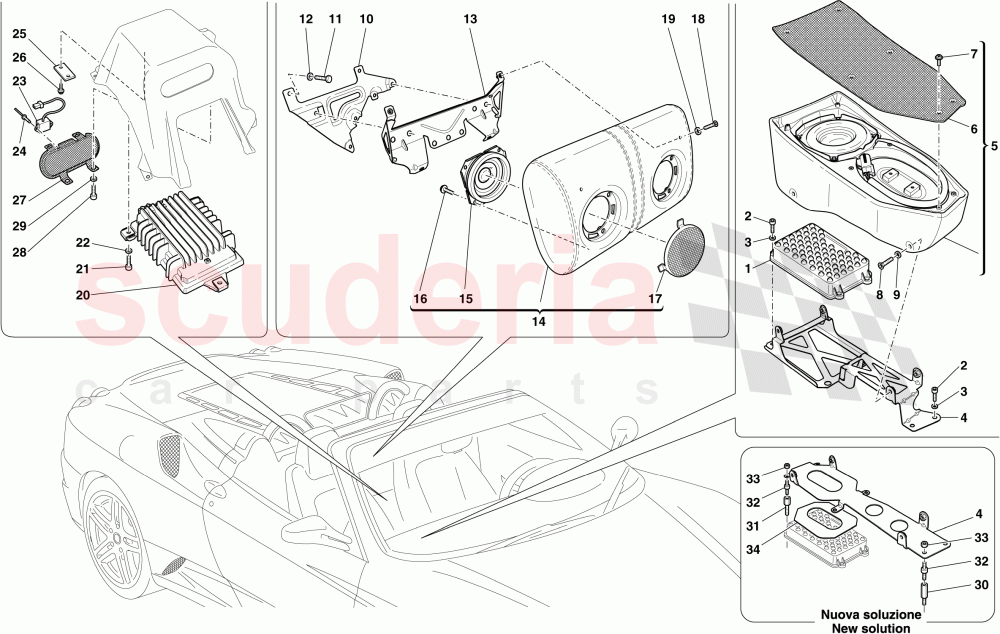

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	233478	BOSE BASS-BOX AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14358624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638107	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80946800	BRACKET	Enquire	To Order
	80409000	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80199100	BOSE BASS-BOX SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80199300	GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16085177	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68927900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12611107	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80569100	RH RECESS	Enquire	To Order
	80569300	LH RECESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80481600	MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80482912	COMPLETE RH TWIDDLER CONTAINER	Enquire	To Order
	80483012	COMPLETE LH TWIDDLER CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227270	TWIDDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082777	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80584300	SURROUND FOR TWIDDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68927400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12611107	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233479	BOSE 8800 AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192522	BOSE AUDIOPILOT MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61756800	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80552200	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082977	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80554000	GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550077	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80858000	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80858100	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80858400	MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12577821	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81017800	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	233478	BOSE BASS-BOX AMPLIFIER	233478 BOSE BASS-BOX AMPLIFIER	-	1	Enquire
2	14358624	SCREW	14358624 SCREW Applicable up to Ass. No. 74795	-	6	Enquire
3	12638107	WASHER	12638107 WASHER Applicable up to Ass. No. 74795	-	6	Enquire
4	80946800	BRACKET	80946800 BRACKET Applicable from Ass. No. 74796	-	1	Enquire
4	80409000	BRACKET	80409000 BRACKET Applicable up to Ass. No. 74795	-	1	Enquire
5	80199100	BOSE BASS-BOX SUBSTRUCTURE	80199100 BOSE BASS-BOX SUBSTRUCTURE	-	1	Enquire
6	80199300	GRILLE	80199300 GRILLE	-	1	Enquire
7	16085177	SCREW	16085177 SCREW	-	6	Enquire
8	68927900	SCREW	68927900 SCREW M6 X 25	-	4	Enquire
9	12611107	WASHER	12611107 WASHER	-	4	Enquire
10	80569100	RH RECESS	80569100 RH RECESS	-	1	Enquire
10	80569300	LH RECESS	80569300 LH RECESS	-	1	Enquire
11	81591700	SCREW	81591700 SCREW L. 14 mm	-	6	Enquire
12	10519424	WASHER	10519424 WASHER	-	6	Enquire
13	80481600	MOUNTING BRACKET	80481600 MOUNTING BRACKET	-	2	Enquire
14	80482912	COMPLETE RH TWIDDLER CONTAINER	80482912 COMPLETE RH TWIDDLER CONTAINER	-	1	Enquire
14	80483012	COMPLETE LH TWIDDLER CONTAINER	80483012 COMPLETE LH TWIDDLER CONTAINER	-	1	Enquire
15	227270	TWIDDLER	227270 TWIDDLER	-	4	Enquire
16	16082777	SCREW	16082777 SCREW	-	16	Enquire
17	80584300	SURROUND FOR TWIDDLER	80584300 SURROUND FOR TWIDDLER	-	4	Enquire
18	68927400	SCREW	68927400 SCREW	-	16	Enquire
19	12611107	WASHER	12611107 WASHER	-	16	Enquire
20	233479	BOSE 8800 AMPLIFIER	233479 BOSE 8800 AMPLIFIER	-	1	Enquire
21	14305321	SCREW	14305321 SCREW	-	3	Enquire
22	12643724	WASHER	12643724 WASHER	-	3	Enquire
23	192522	BOSE AUDIOPILOT MICROPHONE	192522 BOSE AUDIOPILOT MICROPHONE	-	1	Enquire
24	61756800	RIVET	61756800 RIVET	-	2	Enquire
25	80552200	CABLE RETAINER BRACKET	80552200 CABLE RETAINER BRACKET	-	1	Enquire
26	16082977	SCREW	16082977 SCREW	-	2	Enquire
27	80554000	GRILLE	80554000 GRILLE	-	1	Enquire
28	14418924	SCREW	14418924 SCREW	-	4	Enquire
29	13550077	WASHER	13550077 WASHER	-	4	Enquire
30	80858000	STUD BOLT	80858000 STUD BOLT Applicable from Ass. No. 74796	-	2	Enquire
31	80858100	STUD BOLT	80858100 STUD BOLT Applicable from Ass. No. 74796	-	4	Enquire
32	80858400	MOUNTING	80858400 MOUNTING Applicable from Ass. No. 74796	-	6	Enquire
33	12577821	NUT	12577821 NUT Applicable from Ass. No. 74796	-	6	Enquire
34	81017800	GASKET	81017800 GASKET	-	1	Enquire
