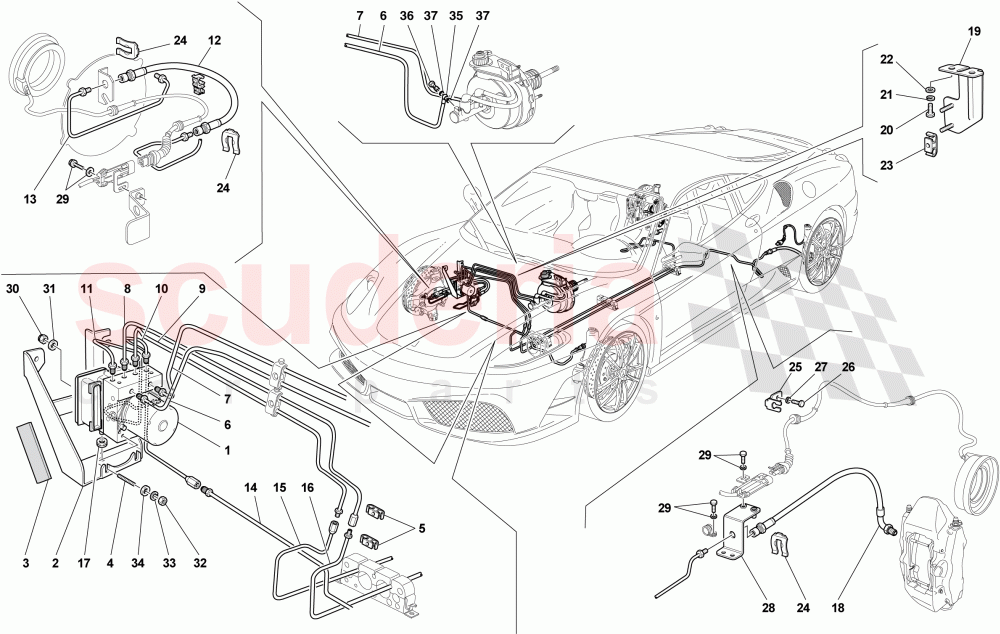

Ferrari 430 Scuderia - BRAKE SYSTEM -Not applicable for GD-

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	226683	ABS/ASR HYDRAULIC UNIT/ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228956	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197149	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516524	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226686	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226685	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226687	PIPE FROM ECU TO LH. INTERMEDIATE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226688	PIPE FROM ECU TO RH. INTERMEDIATE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226689	PIPE FROM ECU TO INTERMEDIATE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226690	PIPE FROM ECU TO RH. FRONT BREAK TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order
	268658	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200324	FRONT RH BRAKE PIPE	Enquire	To Order
	200325	FRONT LH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205295	INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205093	PIPE TO REAR RH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205094	TUBE TO REAR LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202555	SPLIT TAPERED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207278	BRAKE PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178938	CABLE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185283	REAR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249656	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10107225	PIPE UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	226683	ABS/ASR HYDRAULIC UNIT/ECU	226683 ABS/ASR HYDRAULIC UNIT/ECU Not for GD	-	1	Enquire
2	228956	ECU MOUNTING BRACKET	228956 ECU MOUNTING BRACKET Not for GD	-	1	Enquire
3	197149	VIBRATION DAMPER	197149 VIBRATION DAMPER Not for GD	-	1	Enquire
4	13516524	STUD BOLT	13516524 STUD BOLT Not for GD	-	2	Enquire
5	212645	CLIP	212645 CLIP Not for GD	-	4	Enquire
6	226686	BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT	226686 BRAKE PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT Not for GD	-	1	Enquire
7	226685	BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT	226685 BRAKE PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT Not for GD	-	1	Enquire
8	226687	PIPE FROM ECU TO LH. INTERMEDIATE TUBE	226687 PIPE FROM ECU TO LH. INTERMEDIATE TUBE Not for GD	-	1	Enquire
9	226688	PIPE FROM ECU TO RH. INTERMEDIATE TUBE	226688 PIPE FROM ECU TO RH. INTERMEDIATE TUBE Not for GD	-	1	Enquire
10	226689	PIPE FROM ECU TO INTERMEDIATE TUBE	226689 PIPE FROM ECU TO INTERMEDIATE TUBE Not for GD	-	1	Enquire
11	226690	PIPE FROM ECU TO RH. FRONT BREAK TUBE	226690 PIPE FROM ECU TO RH. FRONT BREAK TUBE Not for GD	-	1	Enquire
12	271771	PIPE	271771 PIPE Not for GD; Applicable after depletion of 116373	-	2	Enquire
12	268658	RUBBER PIPE	268658 RUBBER PIPE Not for GD; Applicable until depletion	-	2	Enquire
13	200324	FRONT RH BRAKE PIPE	200324 FRONT RH BRAKE PIPE Not for GD	-	1	Enquire
13	200325	FRONT LH BRAKE PIPE	200325 FRONT LH BRAKE PIPE Not for GD	-	1	Enquire
14	205295	INTERMEDIATE PIPE	205295 INTERMEDIATE PIPE Not for GD	-	1	Enquire
15	205093	PIPE TO REAR RH HOSE	205093 PIPE TO REAR RH HOSE Not for GD	-	1	Enquire
16	205094	TUBE TO REAR LH HOSE	205094 TUBE TO REAR LH HOSE Not for GD	-	1	Enquire
17	202555	SPLIT TAPERED BUSHING	202555 SPLIT TAPERED BUSHING Not for GD	-	1	Enquire
19	207278	BRAKE PIPE MOUNTING BRACKET	207278 BRAKE PIPE MOUNTING BRACKET Not for GD	-	1	Enquire
20	10902424	SCREW	10902424 SCREW Not for GD	-	2	Enquire
21	127494	WASHER	127494 WASHER Not for GD	-	2	Enquire
22	13577724	WASHER	13577724 WASHER Not for GD	-	2	Enquire
23	212645	CLIP	212645 CLIP Not for GD	-	2	Enquire
24	116374	CLIP	116374 CLIP Not for GD	-	8	Enquire
25	178938	CABLE MOUNTING	178938 CABLE MOUNTING Not for GD	-	2	Enquire
26	10977524	SCREW	10977524 SCREW Not for GD	-	2	Enquire
27	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Not for GD	-	2	Enquire
28	185283	REAR MOUNTING	185283 REAR MOUNTING Not for GD	-	2	Enquire
29	250657	SCREW M6 X 14	250657 SCREW M6 X 14 Not for GD	-	6	Enquire
30	147985	NUT	147985 NUT Not for GD	-	1	Enquire
31	84653800	WASHER	84653800 WASHER Not for GD	-	1	Enquire
32	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED Not for GD	-	2	Enquire
33	84653800	WASHER	84653800 WASHER Not for GD	-	2	Enquire
34	127496	WASHER	127496 WASHER Not for GD	-	2	Enquire
35	249656	CONNECTOR	249656 CONNECTOR Not for GD	-	1	Enquire
36	10107225	PIPE UNION	10107225 PIPE UNION Not for GD	-	1	Enquire
37	10298460	GASKET	10298460 GASKET Not for GD	-	2	Enquire
