Name: GEARBOX - COVERS
Rating: 4.1 (1 reviews)

GEARBOX - COVERS of Ferrari Ferrari 430 Scuderia

View All

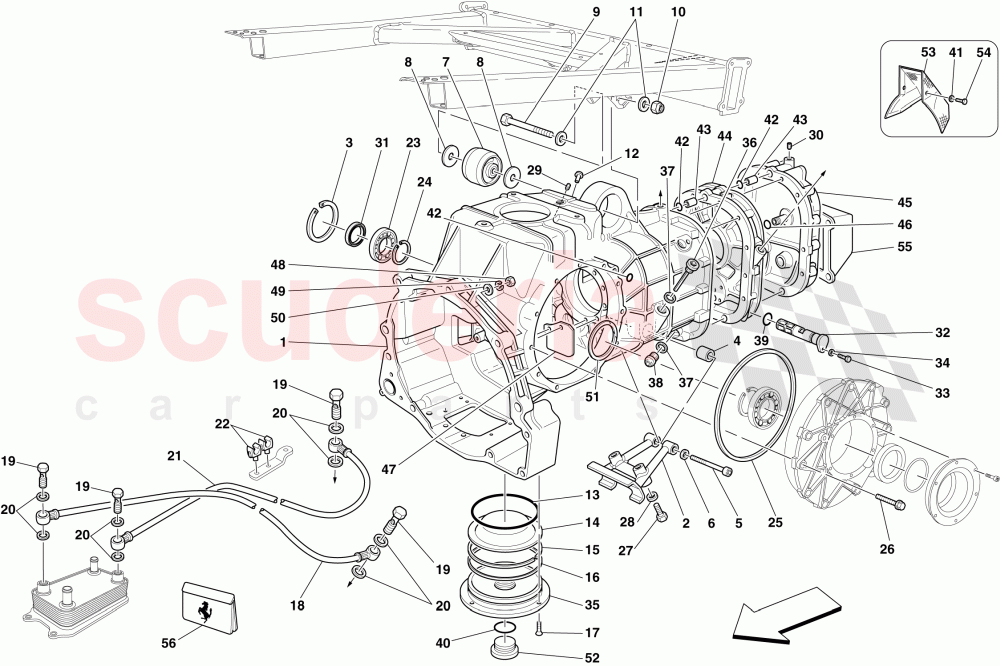

Ferrari 430 Scuderia - GEARBOX - COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	247320	COMPLETE GEARBOX	$51,304.99	To Order

Photo	Part No	Description	Price (each)	Stock
	215599	RETENTION BRACKET ABSORBER	$155.78	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	213174	BUSHING	$74.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14314774	SCREW	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	13507734	WASHER	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	237531	Gearbox Mounting Bush	$112.31	To Order

Photo	Part No	Description	Price (each)	Stock
	188141	RETAINER WASHER	$49.95	To Order

Photo	Part No	Description	Price (each)	Stock
	11117134	SCREW	$19.58	To Order

Photo	Part No	Description	Price (each)	Stock
	106004	NUT	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14496824	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	197797	OIL BREATHER	$31.95	To Order

Photo	Part No	Description	Price (each)	Stock
	190183	O-RING D.69.85 - 8 X 100	$17.20	To Order

Photo	Part No	Description	Price (each)	Stock
	122429	Oil Pickup Filter	$11.59	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	207541	O-Ring	$16.18	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	198163	OIL DELIVERY PIPE	$120.81	To Order

Photo	Part No	Description	Price (each)	Stock
	184727	Banjo bolt For Union M16 x 1.5	$6.03	To Order

Photo	Part No	Description	Price (each)	Stock
	872137	GASKET Dia.16,7-26X1,5	$30.36	To Order

Photo	Part No	Description	Price (each)	Stock
	198166	OIL RETURN PIPE	$125.14	To Order

Photo	Part No	Description	Price (each)	Stock
	232554	TUBE FASTENING BRACKET	$10.88	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING	$174.17	To Order

Photo	Part No	Description	Price (each)	Stock
	184994	SNAP RING	$8.09	To Order

Photo	Part No	Description	Price (each)	Stock
	206351	SHIM	$47.08	To Order
	205881	SHIM	$47.08	To Order
	206349	SHIM	$43.45	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	15231524	SCREW	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	184006	RH OIL SEAL RING.	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	182100	GEARBOX OIL FILTER	$141.35	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11199277	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	198596	OIL FILTER COVER	$319.61	To Order

Photo	Part No	Description	Price (each)	Stock
	182117	DIPSTICK	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	$36.44	To Order

Photo	Part No	Description	Price (each)	Stock
	182119	GEARBOX OIL FILTER O-RING	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	10265060	Gasket Copper D32. 38 x 1.5	$1.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14446924	WASHER	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14456981	GASKET	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	150957	ALIGNMENT BUSHING	$8.93	To Order

Photo	Part No	Description	Price (each)	Stock
	239230	PLATE	$1,263.29	To Order
	187064	PLATE	$837.11	To Order

Photo	Part No	Description	Price (each)	Stock
	212634	REAR COVER	$376.82	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	183986	PLATE	$3.94	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	SELF-LOCKING HEX NUT M16 X 1.5	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	214788	SHIM	$87.31	To Order
	205881	SHIM	$47.08	To Order
	206351	SHIM	$47.08	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10276140	CAP	$43.45	To Order

Photo	Part No	Description	Price (each)	Stock
	69619500	HEAT SHIELD	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	207461	REAR IMPACT ABSORBER	$272.39	To Order

Photo	Part No	Description	Price (each)	Stock
	261462	GEARBOX FILLER KIT	$19.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	212633	GEARBOX HOUSING	212633 GEARBOX HOUSING Applicable up to Ass. No. 77100	$5,617.86	1
-	239229	GEARBOX HOUSING	239229 GEARBOX HOUSING Applicable from Ass. No. 77101; Applicable from gearbox No. 131521	$9,868.94	1
1	247320	COMPLETE GEARBOX	247320 COMPLETE GEARBOX Also order supplement kit ref. 56;	$51,304.99	1
2	215599	RETENTION BRACKET ABSORBER	215599 RETENTION BRACKET ABSORBER	$155.78	1
3	185723	SEEGER RING	185723 SEEGER RING	$4.75 MSRP: ~~6.80~~ (30.1% off)	1
4	213174	BUSHING	213174 BUSHING Ext. D. 32 mm; Int. D. 17 mm	$74.56	1
5	14314774	SCREW	14314774 SCREW	$7.50	1
6	13507734	WASHER	13507734 WASHER	$1.56	1
7	237531	Gearbox Mounting Bush	237531 Gearbox Mounting Bush	$112.31 MSRP: ~~146.02~~ (23.1% off)	1
8	188141	RETAINER WASHER	188141 RETAINER WASHER	$49.95	2
9	11117134	SCREW	11117134 SCREW	$19.58	1
10	106004	NUT	106004 NUT	$0.96 MSRP: ~~7.75~~ (87.6% off)	1
11	14496824	WASHER	14496824 WASHER	$0.23 MSRP: ~~1.00~~ (77% off)	2
12	197797	OIL BREATHER	197797 OIL BREATHER	$31.95	1
13	190183	O-RING D.69.85 - 8 X 100	190183 O-RING D.69.85 - 8 X 100	$17.20 MSRP: ~~19.19~~ (10.4% off)	1
14	122429	Oil Pickup Filter	122429 Oil Pickup Filter	$11.59 MSRP: ~~14.20~~ (18.4% off)	1
15	185723	SEEGER RING	185723 SEEGER RING	$4.75 MSRP: ~~6.80~~ (30.1% off)	1
16	207541	O-Ring	207541 O-Ring	$16.18	1
17	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	$1.10 MSRP: ~~1.45~~ (24.1% off)	4
18	198163	OIL DELIVERY PIPE	198163 OIL DELIVERY PIPE	$120.81	1
19	184727	Banjo bolt For Union M16 x 1.5	184727 Banjo bolt For Union M16 x 1.5	$6.03	4
20	872137	GASKET Dia.16,7-26X1,5	872137 GASKET Dia.16,7-26X1,5	$30.36	8
21	198166	OIL RETURN PIPE	198166 OIL RETURN PIPE	$125.14	1
22	232554	TUBE FASTENING BRACKET	232554 TUBE FASTENING BRACKET	$10.88	2
23	184995	BEARING	184995 BEARING	$174.17	1
24	184994	SNAP RING	184994 SNAP RING	$8.09	1
25	206351	SHIM	206351 SHIM Th. 3 mm	$47.08	1
25	205881	SHIM	205881 SHIM Th. 2.5 mm	$47.08	1
25	206349	SHIM	206349 SHIM Th. 2.2 mm	$43.45	1
25	206350	SHIM	206350 SHIM Th. 2.8 mm	$47.08	1
26	16287524	SCREW	16287524 SCREW	$1.36	11
27	15231524	SCREW	15231524 SCREW	$1.00	2
28	12601474	WASHER	12601474 WASHER	$0.03	2
29	282755	THREADED PLUG	282755 THREADED PLUG	$2.14	1
30	14326101	THREADED PLUG	14326101 THREADED PLUG	$1.26 MSRP: ~~1.65~~ (23.6% off)	1
31	184006	RH OIL SEAL RING.	184006 RH OIL SEAL RING.	$56.14 MSRP: ~~92.50~~ (39.3% off)	1
32	182100	GEARBOX OIL FILTER	182100 GEARBOX OIL FILTER	$141.35	1
33	10977624	SCREW	10977624 SCREW	$0.06	1
34	11199277	WASHER	11199277 WASHER	$0.11	1
35	198596	OIL FILTER COVER	198596 OIL FILTER COVER	$319.61	1
36	182117	DIPSTICK	182117 DIPSTICK	$67.38 MSRP: ~~89.35~~ (24.6% off)	1
37	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	$0.37 MSRP: ~~1.00~~ (63% off)	3
38	183962	OIL DRAIN PLUG MAGNETIC 22X1.5	183962 OIL DRAIN PLUG MAGNETIC 22X1.5	$36.44	2
39	182119	GEARBOX OIL FILTER O-RING	182119 GEARBOX OIL FILTER O-RING	$2.58 MSRP: ~~3.25~~ (20.6% off)	1
40	10265060	Gasket Copper D32. 38 x 1.5	10265060 Gasket Copper D32. 38 x 1.5	$1.82	1
41	14446924	WASHER	14446924 WASHER	$0.31	2
42	14456981	GASKET	14456981 GASKET	$0.99 MSRP: ~~1.25~~ (20.8% off)	4
43	150957	ALIGNMENT BUSHING	150957 ALIGNMENT BUSHING	$8.93	4
44	239230	PLATE	239230 PLATE Applicable from Ass. No. 77101; Applicable from gearbox No. 131521	$1,263.29	1
44	187064	PLATE	187064 PLATE Applicable up to Ass. No. 77100	$837.11	1
45	212634	REAR COVER	212634 REAR COVER	$376.82	1
46	137192	O-RING	137192 O-RING	$0.37 MSRP: ~~0.50~~ (26% off)	2
47	183986	PLATE	183986 PLATE	$3.94	1
48	176573	SELF-LOCKING HEX NUT M16 X 1.5	176573 SELF-LOCKING HEX NUT M16 X 1.5	$2.01 MSRP: ~~2.25~~ (10.7% off)	7
49	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	7
50	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	7
51	214788	SHIM	214788 SHIM Th. 2.6 mm; Installed if necessary	$87.31	1
51	205881	SHIM	205881 SHIM Th. 2.5 mm; Installed if necessary	$47.08	1
51	206351	SHIM	206351 SHIM Th. 3 mm; Installed if necessary	$47.08	1
51	206350	SHIM	206350 SHIM Th. 2.8 mm; Installed if necessary	$47.08	1
52	10276140	CAP	10276140 CAP	$43.45 MSRP: ~~71.82~~ (39.5% off)	1
53	69619500	HEAT SHIELD	69619500 HEAT SHIELD	$72.19	1
54	10977624	SCREW	10977624 SCREW	$0.06	2
55	207461	REAR IMPACT ABSORBER	207461 REAR IMPACT ABSORBER Applicable for USA, CDN	$272.39	1
56	261462	GEARBOX FILLER KIT	261462 GEARBOX FILLER KIT	$19.27	1
