BRAKE SYSTEM -Valid for GD- of Ferrari Ferrari 360 Spider

View All

Ferrari 360 Spider - BRAKE SYSTEM -Valid for GD-

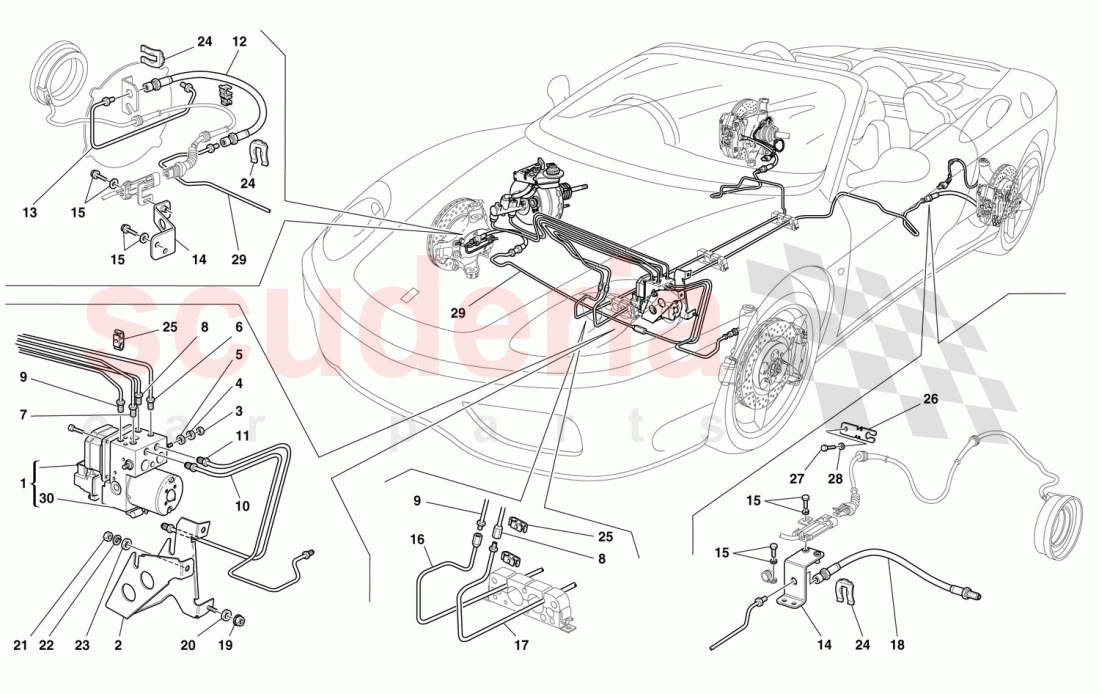

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	168828	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177512	CONTROL STATION SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213657	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213656	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180386	PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213660	PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177158	PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177157	PIPE FROM CONTROL STATION TO UNION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271771	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173806	FRONT RH BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178938	CABLE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180361	PIPE TO R.H. REAR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180362	PIPE TO L.H. REAR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	977803	Brake Pipe 325mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212645	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178938	CABLE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177161	UNION PIPE TO RH FRONT BRAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185147	ABS/ASR/EBD ELECTRONIC CONTROL STATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	173805	FRONT LH BRAKE PIPE	173805 FRONT LH BRAKE PIPE	-	1	Enquire
1	168828	ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION	168828 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION CONTROL STATION	-	1	Enquire
2	177512	CONTROL STATION SUPPORTING BRACKET	177512 CONTROL STATION SUPPORTING BRACKET BRACKET	-	1	Enquire
3	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
4	127496	WASHER	127496 WASHER	-	2	Enquire
5	12638524	WASHER	12638524 WASHER	-	2	Enquire
6	213657	BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION	213657 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION TO CONTROL STATION	-	1	Enquire
7	213656	BRAKE PIPE FROM REAR PUMP TO CONTROL STATION	213656 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION TO CONTROL STATION	-	1	Enquire
8	180386	PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE	180386 PIPE FROM CONTROL STATION TO LH INTERMEDIATE PIPE L.H. INTERMEDIATE PIPE	-	1	Enquire
9	213660	PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE	213660 PIPE FROM CONTROL STATION TO RH INTERMEDIATE PIPE R.H. INTERMEDIATE PIPE	-	1	Enquire
10	177158	PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE	177158 PIPE FROM CONTROL STATION TO LH FRONT BRAKE PIPE TO L.H. FRONT BRAKE PIPE	-	1	Enquire
11	177157	PIPE FROM CONTROL STATION TO UNION PIPE	177157 PIPE FROM CONTROL STATION TO UNION PIPE TO UNION PIPE	-	1	Enquire
12	271771	PIPE	271771 PIPE	-	2	Enquire
13	173806	FRONT RH BRAKE PIPE	173806 FRONT RH BRAKE PIPE	-	1	Enquire
14	178938	CABLE MOUNTING	178938 CABLE MOUNTING	-	4	Enquire
15	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	8	Enquire
16	180361	PIPE TO R.H. REAR HOSE	180361 PIPE TO R.H. REAR HOSE	-	1	Enquire
17	180362	PIPE TO L.H. REAR HOSE	180362 PIPE TO L.H. REAR HOSE	-	1	Enquire
18	977803	Brake Pipe 325mm	977803 Brake Pipe 325mm	-	2	Enquire
19	147985	NUT	147985 NUT	-	1	Enquire
20	12638524	WASHER	12638524 WASHER	-	1	Enquire
21	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
22	127496	WASHER	127496 WASHER	-	2	Enquire
23	12638524	WASHER	12638524 WASHER	-	2	Enquire
24	116374	CLIP	116374 CLIP	-	8	Enquire
25	212645	CLIP	212645 CLIP	-	4	Enquire
26	178938	CABLE MOUNTING	178938 CABLE MOUNTING	-	2	Enquire
27	10977524	SCREW	10977524 SCREW	-	2	Enquire
28	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
29	177161	UNION PIPE TO RH FRONT BRAKE PIPE	177161 UNION PIPE TO RH FRONT BRAKE PIPE BRAKE PIPE	-	1	Enquire
30	185147	ABS/ASR/EBD ELECTRONIC CONTROL STATION	185147 ABS/ASR/EBD ELECTRONIC CONTROL STATION CONTROL STATION	-	1	Enquire
