Ferrari 360 Spider - BRAKES AND CLUTCH HYDRAULIC CONTROLS -Not for GD-

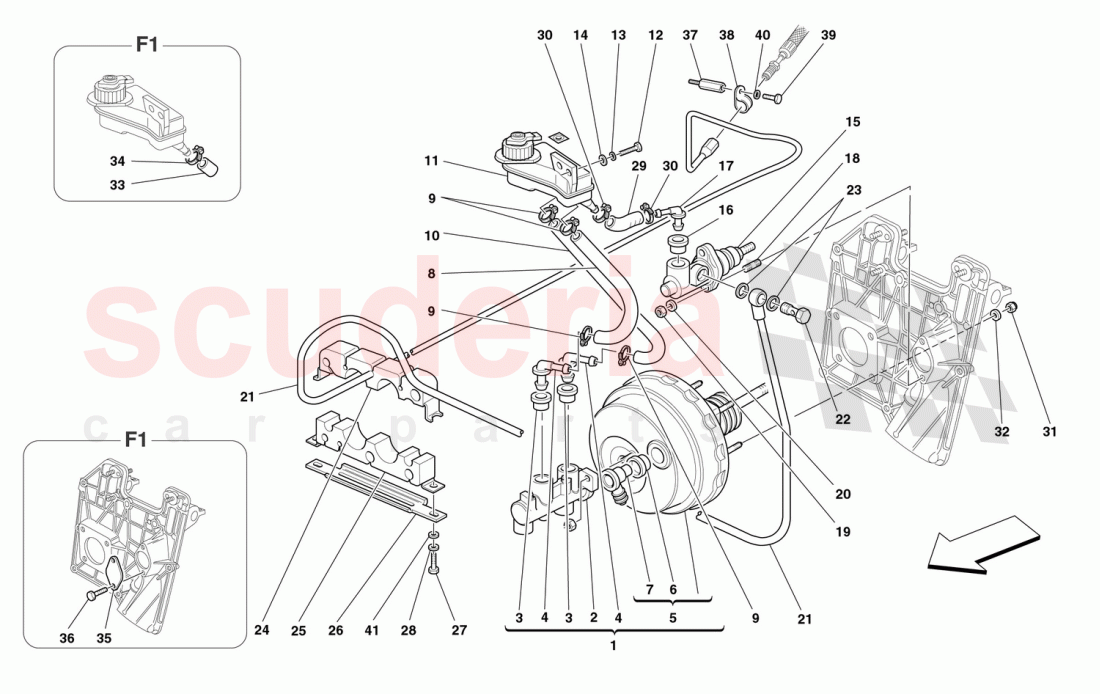

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
171872 COMPLETE BRAKE BOOSTER $2,191.87 To Order
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP $818.33 To Order
Photo Part No Description Price (each) Stock
171784 CONNECTION FOR BRAKE PUMP $23.50 To Order
Photo Part No Description Price (each) Stock
173871 UNION $7.97 To Order
Photo Part No Description Price (each) Stock
177090 BOOSTER $451.72 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $10.52 To Order
Photo Part No Description Price (each) Stock
144552 UNION $15.48 To Order
Photo Part No Description Price (each) Stock
219140 PIPE FROM FRONT CONNECTOR TO TANK $186.33 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
211377 RUBBER PIPE $9.77 To Order
Photo Part No Description Price (each) Stock
173415 COMPLETE BRAKE OIL TANK $88.24 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
180841 CLUTCH PUMP $605.08 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $25.66 To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR $44.22 To Order
Photo Part No Description Price (each) Stock
13517024 STUD BOLT $0.55 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
164167 PIPE FROM PUMP TO REAR UNION $102.32 To Order
Photo Part No Description Price (each) Stock
180042 PIPE UNION $29.61 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 To Order
Photo Part No Description Price (each) Stock
178586 UPPER SUPPORT $33.68 To Order
Photo Part No Description Price (each) Stock
178587 LOWER SUPPORT $29.60 To Order
Photo Part No Description Price (each) Stock
178585 SMALL PLATE $2.37 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
182246 PIPE FROM FRONT UNION TO TANK $12.72 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
248008 CAP $14.59 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
174177 FLANGE $83.42 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $10.73 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
View All
BRAKES AND CLUTCH HYDRAULIC CONTROLS -Not for GD- of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 183049
LOWER SUPPORT
Valid from Ass. Nr. 35744 		$28.87 3
- 183048
UPPER SUPPORT
Valid from Ass. Nr. 35744 		$33.68 3
- 183477
UNION 		$20.84 2
1 171872
COMPLETE BRAKE BOOSTER 		$2,191.87 1
2 171782
BRAKE PUMP 		$818.33 1
3 171784
CONNECTION FOR BRAKE PUMP 		$23.50 2
4 173871
UNION
Not as spare part / Replaced by 183477 		$7.97 2
5 177090
BOOSTER 		$451.72 1
6 151475
CABLE GROMMET 		$10.52 1
7 144552
UNION 		$15.48 1
8 219140
PIPE FROM FRONT CONNECTOR TO TANK
TANK 		$186.33 1
9 13432070
HOSE COLLAR 		$0.57 (46.7% off) 4
10 211377
RUBBER PIPE
TANK 		$9.77 (23.3% off) 1
11 173415
COMPLETE BRAKE OIL TANK 		$88.24 (24% off) 1
12 10902524
SCREW 		$0.15 2
13 11197774
WASHER 		$0.06 (80% off) 2
14 10519424
WASHER 		$0.02 (92% off) 2
15 180841
CLUTCH PUMP
Not for F1 		$605.08 1
16 175189
SEAT RING
Not for F1 		$25.66 (12.2% off) 1
17 184497
CONNECTOR
Not for F1 		$44.22 (51.1% off) 1
18 13517024
STUD BOLT
Not for F1 		$0.55 2
19 104030
NUT
Not for F1 		$0.26 (74% off) 2
20 12601374
WASHER
Not for F1 		$0.02 (92% off) 2
21 164167
PIPE FROM PUMP TO REAR UNION
Not for F1 / 		$102.32 1
22 180042
PIPE UNION
Not for F1 		$29.61 1
23 10298460
GASKET
Not for F1 		$0.15 (88% off) 2
24 178586
UPPER SUPPORT
Valid till Ass. Nr. 35743 		$33.68 3
25 178587
LOWER SUPPORT
Valid till Ass. Nr. 35743 		$29.60 3
26 178585
SMALL PLATE 		$2.37 3
27 10902424
SCREW 		$0.15 (78.6% off) 6
28 127494
WASHER 		$0.08 (88.2% off) 6
29 182246
PIPE FROM FRONT UNION TO TANK
Not for F1 		$12.72 1
30 13432070
HOSE COLLAR
Not for F1 		$0.57 (46.7% off) 2
31 104030
NUT 		$0.26 (74% off) 4
32 12601374
WASHER 		$0.02 (92% off) 4
33 248008
CAP
Valid for F1 		$14.59 1
34 13432070
HOSE COLLAR
Valid for F1 		$0.57 (46.7% off) 1
35 174177
FLANGE
Valid for F1 		$83.42 1
36 16043021
SCREW
Valid for F1 		$0.18 2
37 178772
SPACER STUD
Not for F1 		$10.73 1
38 10441390
BRACKET WITH SHEATH
Not for F1 		$0.57 2
39 10902224
SCREW M6 X 16
Not for F1 		$0.06 (86.7% off) 1
40 127494
WASHER
Not for F1 		$0.08 (88.2% off) 1
41 12644424
WASHER 		$0.06 (85% off) 6
