ELECTRICAL SEAT - GUIDE AND MOVEMENT of Ferrari Ferrari 360 Spider

View All

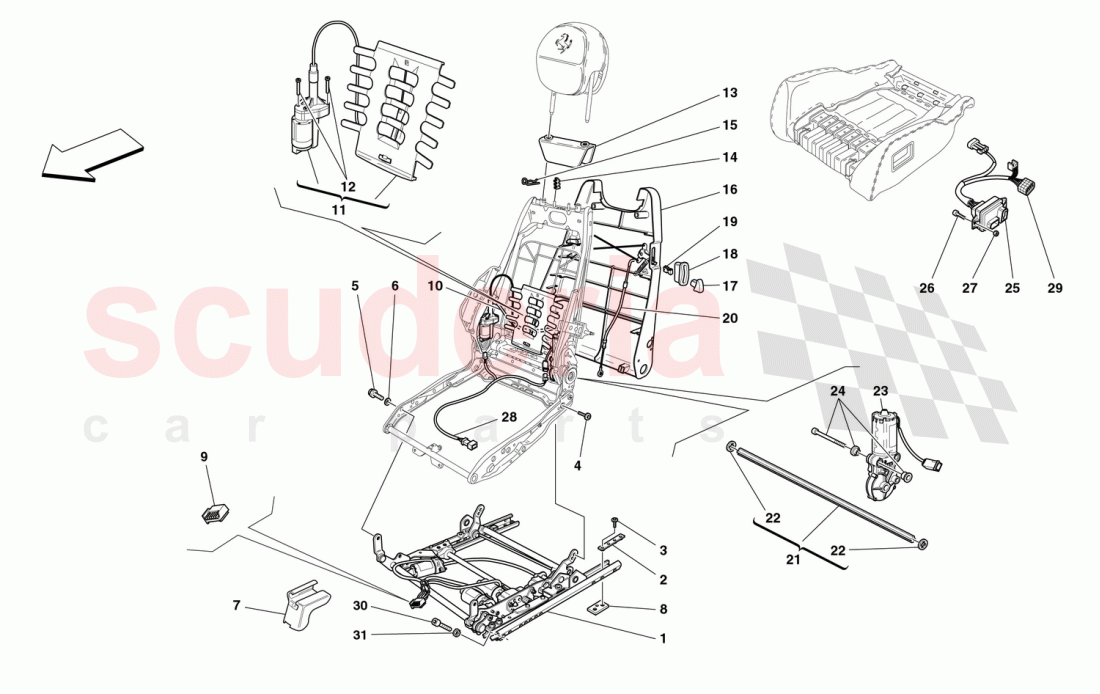

Ferrari 360 Spider - ELECTRICAL SEAT - GUIDE AND MOVEMENT

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66327200	RH GUIDE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66323500	UPPER THREADED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327500	COMPLETE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327600	FRONT FASTENER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66090500	LH GUIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166168	REAR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328000	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66326000	BACKREST BOLSTER ADJUSTMENT BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66374500	ELECTRIC LUMBAR SUPPORT ADJUSTMENT MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	663248	COMPLETE SADDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324700	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66370200	LH CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324100	BACKREST BACKING SHELL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324500	SEAT HOOK LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324400	FIXING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66324200	SEAT RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328800	COMPLETE CONNECTOR BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328700	CROWN FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66327800	BACKREST ADJUSTMENT MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328500	FASTENER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66329300	LH SEAT BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66329400	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66329500	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66329100	BACKREST WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66328900	CUSHION WIRING HARNESS, DRIVER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65917500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	66329000	CUSHION WIRING HARNESS, PASSENGER SIDE	66329000 CUSHION WIRING HARNESS, PASSENGER SIDE PASSENGER SIDE	-	1	Enquire
-	66329200	RH SEAT BUTTON PANEL	66329200 RH SEAT BUTTON PANEL	-	1	Enquire
-	66324600	RH CLIP	66324600 RH CLIP	-	2	Enquire
-	66326100	BOWDEN CABLE SHEATH	66326100 BOWDEN CABLE SHEATH	-	2	Enquire
-	66090400	RH GUIDE COVER	66090400 RH GUIDE COVER	-	1	Enquire
-	66327700	REAR FASTENER BUSHING	66327700 REAR FASTENER BUSHING	-	4	Enquire
-	66327300	LH GUIDE ASSEMBLY	66327300 LH GUIDE ASSEMBLY	-	1	Enquire
1	66327200	RH GUIDE ASSEMBLY	66327200 RH GUIDE ASSEMBLY	-	1	Enquire
2	66323500	UPPER THREADED PLATE	66323500 UPPER THREADED PLATE	-	4	Enquire
3	66327100	SCREW	66327100 SCREW	-	4	Enquire
4	66327900	SCREW	66327900 SCREW	-	8	Enquire
5	66327500	COMPLETE SCREW	66327500 COMPLETE SCREW	-	8	Enquire
6	66327600	FRONT FASTENER BUSHING	66327600 FRONT FASTENER BUSHING BUSHING	-	4	Enquire
7	66090500	LH GUIDE COVER	66090500 LH GUIDE COVER	-	1	Enquire
8	166168	REAR PLATE	166168 REAR PLATE	-	4	Enquire
9	66328000	CONNECTOR	66328000 CONNECTOR	-	2	Enquire
10	66326000	BACKREST BOLSTER ADJUSTMENT BOWDEN CABLE	66326000 BACKREST BOLSTER ADJUSTMENT BOWDEN CABLE BOWDEN CABLE	-	2	Enquire
11	66374500	ELECTRIC LUMBAR SUPPORT ADJUSTMENT MECHANISM	66374500 ELECTRIC LUMBAR SUPPORT ADJUSTMENT MECHANISM SYSTEM	-	2	Enquire
12	66328400	SCREW	66328400 SCREW	-	4	Enquire
13	663248	COMPLETE SADDLE	663248 COMPLETE SADDLE	-	2	Enquire
14	66324700	CLIP	66324700 CLIP	-	4	Enquire
15	66370200	LH CLIP	66370200 LH CLIP	-	2	Enquire
16	66324100	BACKREST BACKING SHELL TRIM	66324100 BACKREST BACKING SHELL TRIM	-	2	Enquire
17	66324500	SEAT HOOK LEVER	66324500 SEAT HOOK LEVER	-	4	Enquire
18	66324400	FIXING PLATE	66324400 FIXING PLATE	-	4	Enquire
19	66324300	CLIP	66324300 CLIP	-	4	Enquire
20	66324200	SEAT RELEASE CABLE	66324200 SEAT RELEASE CABLE	-	4	Enquire
21	66328800	COMPLETE CONNECTOR BAR	66328800 COMPLETE CONNECTOR BAR BAR	-	2	Enquire
22	66328700	CROWN FASTENER	66328700 CROWN FASTENER	-	4	Enquire
23	66327800	BACKREST ADJUSTMENT MOTOR	66327800 BACKREST ADJUSTMENT MOTOR	-	2	Enquire
24	66328500	FASTENER KIT	66328500 FASTENER KIT	-	2	Enquire
25	66329300	LH SEAT BUTTON PANEL	66329300 LH SEAT BUTTON PANEL	-	1	Enquire
26	66329400	SCREW	66329400 SCREW	-	4	Enquire
27	66329500	NUT	66329500 NUT	-	4	Enquire
28	66329100	BACKREST WIRING HARNESS	66329100 BACKREST WIRING HARNESS	-	2	Enquire
29	66328900	CUSHION WIRING HARNESS, DRIVER SIDE	66328900 CUSHION WIRING HARNESS, DRIVER SIDE PILOT SIDE	-	1	Enquire
30	65917500	SCREW	65917500 SCREW	-	4	Enquire
31	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	4	Enquire
