Capote Movement - Lower Part

Ferrari 360 Spider

Find Your Part

Ferrari 360 Spider - CAPOTE MOVEMENT - LOWER PART

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
66457700 RH MAIN MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
66689800 RH TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
66457900 COMPLETE RH SPLINED PIN Enquire To Order
Photo Part No Description Price (each) Stock
66683700 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66682000 PIN Enquire To Order
Photo Part No Description Price (each) Stock
66682200 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
66683800 PIN Enquire To Order
Photo Part No Description Price (each) Stock
66684500 SEEGER Enquire To Order
Photo Part No Description Price (each) Stock
66689100 COMPLETE PROTECTIVE ELASTIC Enquire To Order
Photo Part No Description Price (each) Stock
183177 HARD TOP ADJUSTER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66683900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66684000 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66460700 RH TENSION ROD CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
66688600 RH PLATE Enquire To Order
Photo Part No Description Price (each) Stock
66688700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66688800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66684200 NUT Enquire To Order
Photo Part No Description Price (each) Stock
66684100 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66457500 RH REAR PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
66684300 PIN Enquire To Order
Photo Part No Description Price (each) Stock
66684400 PIN Enquire To Order
Photo Part No Description Price (each) Stock
66682400 SEEGER Enquire To Order
Photo Part No Description Price (each) Stock
182479 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
14164374 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
184161 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
11307021 Screw Enquire To Order
Photo Part No Description Price (each) Stock
11190679 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66683400 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66683500 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
66688300 RH SPRING Enquire To Order
Photo Part No Description Price (each) Stock
66683600 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
66958800 RH ARM Enquire To Order
Photo Part No Description Price (each) Stock
66689000 RH MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
66682600 SEEGER Enquire To Order
Photo Part No Description Price (each) Stock
67049400 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67049600 PLASTIC RETAINMENT COLUMN Enquire To Order
Photo Part No Description Price (each) Stock
67049500 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
15904070 SCREW Enquire To Order
View All

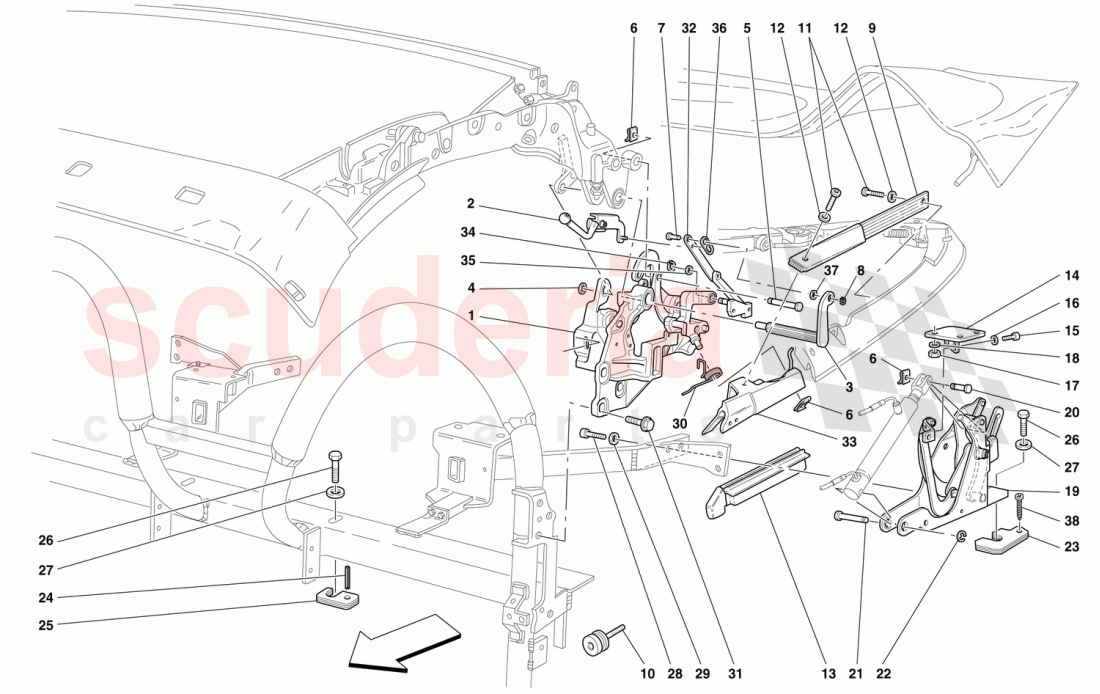

CAPOTE MOVEMENT - LOWER PART of Ferrari Ferrari 360 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 66958900
LH ARM 		- 1 Enquire
- 66688900
LH MOULDING 		- 1 Enquire
- 66688400
LH SPRING 		- 1 Enquire
- 183158
SHIM 		- 2 Enquire
- 183157
SHIM 		- 2 Enquire
- 184162
SHIM 		- 2 Enquire
- 184159
SHIM 		- 2 Enquire
- 66457300
LH PASSENGER COMPARTMENT REAR KINEMATICS
L.H. REARKINEMATIC MOTION 		- 1 Enquire
- 66460600
LH TENSIONING ROD CONNECTOR 		- 1 Enquire
- 66688500
LH PLATE 		- 1 Enquire
- 66457800
COMPLETE LH SPLINED PIN 		- 1 Enquire
- 66457600
LH MAIN MOUNTING 		- 1 Enquire
- 66689700
LH TIE-ROD
For the cars till Ass. Nr. 39682 replaces / R.h. and L.h. together 		- 1 Enquire
1 66457700
RH MAIN MOUNTING 		- 1 Enquire
2 66689800
RH TIE-ROD
For the cars till Ass. Nr. 39682 replaces / R.h. and L.h. together 		- 1 Enquire
3 66457900
COMPLETE RH SPLINED PIN 		- 1 Enquire
4 66683700
WASHER 		- 2 Enquire
5 66682000
PIN 		- 2 Enquire
6 66682200
CLIP 		- 6 Enquire
7 66683800
PIN 		- 2 Enquire
8 66684500
SEEGER 		- 2 Enquire
9 66689100
COMPLETE PROTECTIVE ELASTIC 		- 2 Enquire
10 183177
HARD TOP ADJUSTER SCREW 		- 2 Enquire
11 66683900
SCREW 		- 4 Enquire
12 66684000
WASHER 		- 4 Enquire
13 66460700
RH TENSION ROD CONNECTOR 		- 1 Enquire
14 66688600
RH PLATE 		- 1 Enquire
15 66688700
SCREW 		- 2 Enquire
16 66688800
WASHER 		- 2 Enquire
17 66684200
NUT 		- 3 Enquire
18 66684100
WASHER 		- 3 Enquire
19 66457500
RH REAR PROTECTION
R.H. REAR KINEMATIC MOTION 		- 1 Enquire
20 66684300
PIN 		- 2 Enquire
21 66684400
PIN 		- 2 Enquire
22 66682400
SEEGER 		- 2 Enquire
23 182479
SHIM 		- 2 Enquire
24 14164374
SPRING PIN 		- 2 Enquire
25 184161
SHIM 		- 2 Enquire
26 11307021
Screw 		- 4 Enquire
27 11190679
WASHER 		- 4 Enquire
28 66683400
SCREW 		- 4 Enquire
29 66683500
WASHER 		- 4 Enquire
30 66688300
RH SPRING 		- 1 Enquire
31 66683600
SCREW 		- 2 Enquire
32 66958800
RH ARM 		- 1 Enquire
33 66689000
RH MOULDING 		- 1 Enquire
34 66682600
SEEGER 		- 2 Enquire
35 67049400
WASHER 		- 2 Enquire
36 67049600
PLASTIC RETAINMENT COLUMN 		- 2 Enquire
37 67049500
WASHER 		- 2 Enquire
38 15904070
SCREW 		- 2 Enquire
