HYDRAULIC STEERING PUMP AND TANK of Ferrari Ferrari 360 Modena

View All

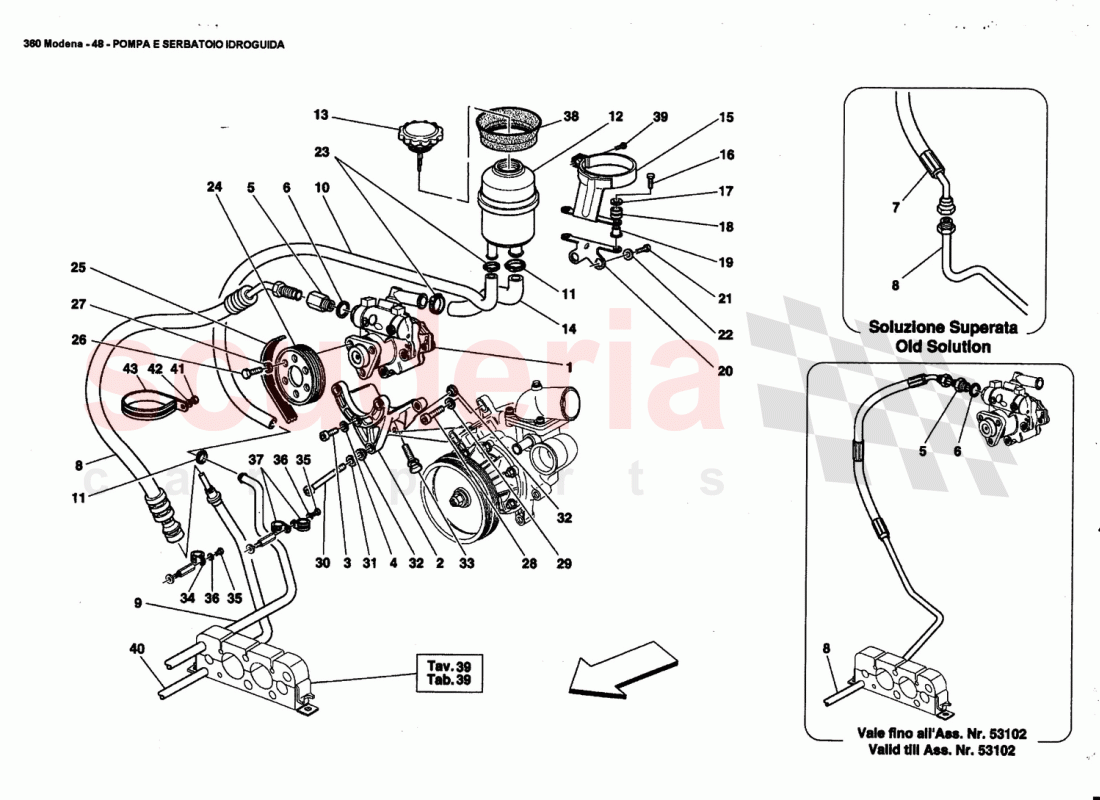

Ferrari 360 Modena - HYDRAULIC STEERING PUMP AND TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	173997	HYDRAULIC SERVO-CONTROL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176162	PUMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306624	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174091	CONNECTOR	Enquire	To Order
	204080	UNION	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	GASKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	169758	DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	209768	DELIVERY PIPE FROM PUMP TO UNION	Enquire	To Order
	204081	DELIVERY PIPE FROM PUMP TO UNION	Enquire	To Order
	185515	COMPLETE DELIVERY PIPE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	184980	RETURN PIPE UNDER THE FLOOR	Enquire	To Order
	179333	RETURN PIPE UNDER THE FLOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179334	RETURN RUBBER HOSE TO TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	167002	OIL TANK FOR SERVOSTEERING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185353	OIL TANK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179420	PIPE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179287	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179219	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177996	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170926	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

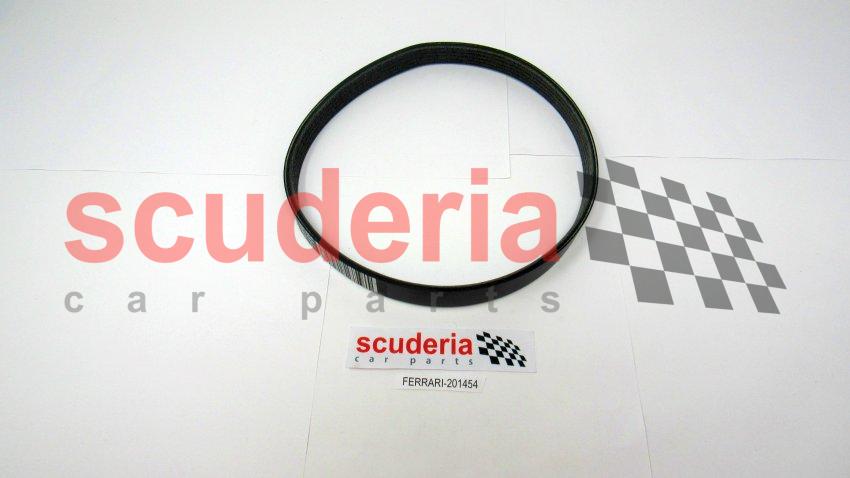

	201454	Power Steering Control Belt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14306724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	173447	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174028	ADJUSTMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14488624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179301	RUBBER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	204080209768	COMPLETE DELIVERY PIPE UNDER THE FLOOR	Enquire	To Order
	204084	LH DELIVERY PIPE FROM UNION TO STEERING BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	124034	BRACKET WITH SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	173997	HYDRAULIC SERVO-CONTROL PUMP	173997 HYDRAULIC SERVO-CONTROL PUMP PUMP	-	1	Enquire
2	176162	PUMP SUPPORT	176162 PUMP SUPPORT	-	1	Enquire
3	14306624	SCREW IN STOCK	14306624 SCREW IN STOCK	-	3	Enquire
4	986899	WASHER	986899 WASHER	-	3	Enquire
5	174091	CONNECTOR	174091 CONNECTOR Valid till Ass. Nr.53102	-	1	Enquire
5	204080	UNION IN STOCK	204080 UNION Valid from Ass. Nr. 53103 IN STOCK	-	1	Enquire
6	10261460	GASKET IN STOCK	10261460 GASKET IN STOCK	-	1	Enquire
7	169758	DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE	169758 DELIVERY PIPE FROM PUMP TO UNDER FLOOR PIPE UNDER FLOOR PIPE / Valid till Ass. Nr. 33655 for GS and / till Ass. Nr. 34014 for GD	-	1	Enquire
8	209768	DELIVERY PIPE FROM PUMP TO UNION	209768 DELIVERY PIPE FROM PUMP TO UNION TO UNION / Valid from Ass. Nr. 53103 / Valid for GD	-	1	Enquire
8	204081	DELIVERY PIPE FROM PUMP TO UNION	204081 DELIVERY PIPE FROM PUMP TO UNION TO UNION / Valid from Ass. Nr. 53103 / Not for GD	-	1	Enquire
8	185515	COMPLETE DELIVERY PIPE	185515 COMPLETE DELIVERY PIPE UNDER THE FLOOR / Valid from Ass. Nr. 34015 till / Ass. Nr.53102 / Valid for GD	-	1	Enquire
8	179323	DELIVERY PIPE UNDER THE FLOOR	179323 DELIVERY PIPE UNDER THE FLOOR FLOOR / Valid till Ass. Nr. 33655 for GS and / till Ass. Nr. 34014 for GD	-	1	Enquire
8	204080	UNION IN STOCK	204080 UNION UNDER THE FLOOR / Valid from Ass. Nr. 33656 till / Ass. Nr.53102 / Not for GD IN STOCK	-	1	Enquire
9	184980	RETURN PIPE UNDER THE FLOOR	184980 RETURN PIPE UNDER THE FLOOR FLOOR	-	1	Enquire
9	179333	RETURN PIPE UNDER THE FLOOR	179333 RETURN PIPE UNDER THE FLOOR FLOOR / Valid till Ass. Nr. 35770	-	1	Enquire
10	179334	RETURN RUBBER HOSE TO TANK	179334 RETURN RUBBER HOSE TO TANK TANK	-	1	Enquire
11	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	2	Enquire
12	167002	OIL TANK FOR SERVOSTEERING IN STOCK	167002 OIL TANK FOR SERVOSTEERING IN STOCK	-	1	Enquire
13	185353	OIL TANK COVER	185353 OIL TANK COVER	-	1	Enquire
14	179420	PIPE FROM TANK TO PUMP	179420 PIPE FROM TANK TO PUMP	-	1	Enquire
15	179287	UPPER BRACKET	179287 UPPER BRACKET	-	1	Enquire
16	10902524	SCREW IN STOCK	10902524 SCREW IN STOCK	-	2	Enquire
17	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
18	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
19	149707	SPACER IN STOCK	149707 SPACER IN STOCK	-	2	Enquire
20	179219	LOWER BRACKET	179219 LOWER BRACKET	-	1	Enquire
21	10902224	SCREW IN STOCK	10902224 SCREW IN STOCK	-	2	Enquire
22	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
23	177996	CLAMP	177996 CLAMP	-	2	Enquire
24	170926	PULLEY	170926 PULLEY	-	1	Enquire
25	201454	Power Steering Control Belt IN STOCK	201454 Power Steering Control Belt BELT / Valid till stock exhaustion IN STOCK	-	1	Enquire
26	16043124	SCREW M8 X 14 IN STOCK	16043124 SCREW M8 X 14 IN STOCK	-	3	Enquire
27	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	3	Enquire
28	14306724	SCREW	14306724 SCREW	-	4	Enquire
29	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	4	Enquire
30	14307224	SCREW IN STOCK	14307224 SCREW IN STOCK	-	1	Enquire
31	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	-	1	Enquire
32	173447	BUSHING	173447 BUSHING	-	2	Enquire
33	174028	ADJUSTMENT PIN	174028 ADJUSTMENT PIN	-	1	Enquire
34	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	-	1	Enquire
35	81591700	SCREW	81591700 SCREW	-	2	Enquire
36	14488624	WASHER	14488624 WASHER	-	2	Enquire
37	10441390	P clip Bracket With Sheath D.12 IN STOCK	10441390 P clip Bracket With Sheath D.12 IN STOCK	-	2	Enquire
38	179301	RUBBER RING	179301 RUBBER RING	-	1	Enquire
39	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
40	204080209768	COMPLETE DELIVERY PIPE UNDER THE FLOOR	204080209768 COMPLETE DELIVERY PIPE UNDER THE FLOOR TO STEERING BOX / Valid from Ass. Nr. 53103 / Valid for GD	-	1	Enquire
40	204084	LH DELIVERY PIPE FROM UNION TO STEERING BOX	204084 LH DELIVERY PIPE FROM UNION TO STEERING BOX TO STEERING BOX / Valid from Ass. Nr. 53103 / Not for GD	-	1	Enquire
41	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	1	Enquire
42	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	1	Enquire
43	124034	BRACKET WITH SHEATH	124034 BRACKET WITH SHEATH	-	1	Enquire
