Ferrari 360 Modena - HYDRAULIC STEERING BOX AND SERPENTINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
196172 STEERING BOX TO POWER-ASSISTED RACK $20,647.96 To Order
196171 STEERING BOX TO POWER-ASSISTED RACK $25,215.92 To Order
Photo Part No Description Price (each) Stock
181882 BALL TIE ROD $786.24 To Order
Photo Part No Description Price (each) Stock
10791324 NUT $9.00 To Order
10790424 Nut $7.13 To Order
Photo Part No Description Price (each) Stock
177943 SWIVELLING UNION $48.12 To Order
186719 SWINGING UNION $62.00 To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $11.38 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.21 To Order
Photo Part No Description Price (each) Stock
169890 PIPE FROM SERPENTINE COIL TO TANK $50.28 To Order
187696 PIPE FROM RACK STEERING BOX TO UNION -Valid for GD- -Not as spare part- -Replaced by $39.92 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
179106 REFRIGERATING COIL $417.18 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
181920 RUBBER HOSE $93.05 To Order
179257 RUBBER HOSE $111.79 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
201706 THREADED CONNECTOR $6.55 To Order
201706 THREADED CONNECTOR $6.55 To Order
Photo Part No Description Price (each) Stock
180831 DELIVERY TUBE $704.61 To Order
177700 DELIVERY TUBE $370.66 To Order
Photo Part No Description Price (each) Stock
204080209768 COMPLETE DELIVERY PIPE UNDER THE FLOOR Enquire To Order
204084 LH DELIVERY PIPE FROM UNION TO STEERING BOX $240.67 To Order
185515 COMPLETE DELIVERY PIPE $589.10 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
184980 RETURN PIPE UNDER THE FLOOR $73.80 To Order
179333 RETURN PIPE UNDER THE FLOOR $430.02 To Order
Photo Part No Description Price (each) Stock
177631 TUBE FASTENING BRACKET $8.93 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $2.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
171519 COMPLETE RING $22.45 To Order
Photo Part No Description Price (each) Stock
277720 SCREW $4.00 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
Photo Part No Description Price (each) Stock
277720 SCREW $4.00 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
Photo Part No Description Price (each) Stock
179556 SCREW $56.68 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.61 To Order
Photo Part No Description Price (each) Stock
65996800 BRACKET $6.73 To Order
Photo Part No Description Price (each) Stock
70000948 BELLOW REPLACEMENT KIT $72.19 To Order
Photo Part No Description Price (each) Stock
66076900 BRACKET WITH SHEATH $2.37 To Order
Photo Part No Description Price (each) Stock
139512 BRACKET WITH SHEATH $2.53 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
166730 SHIM $6.68 To Order
View All

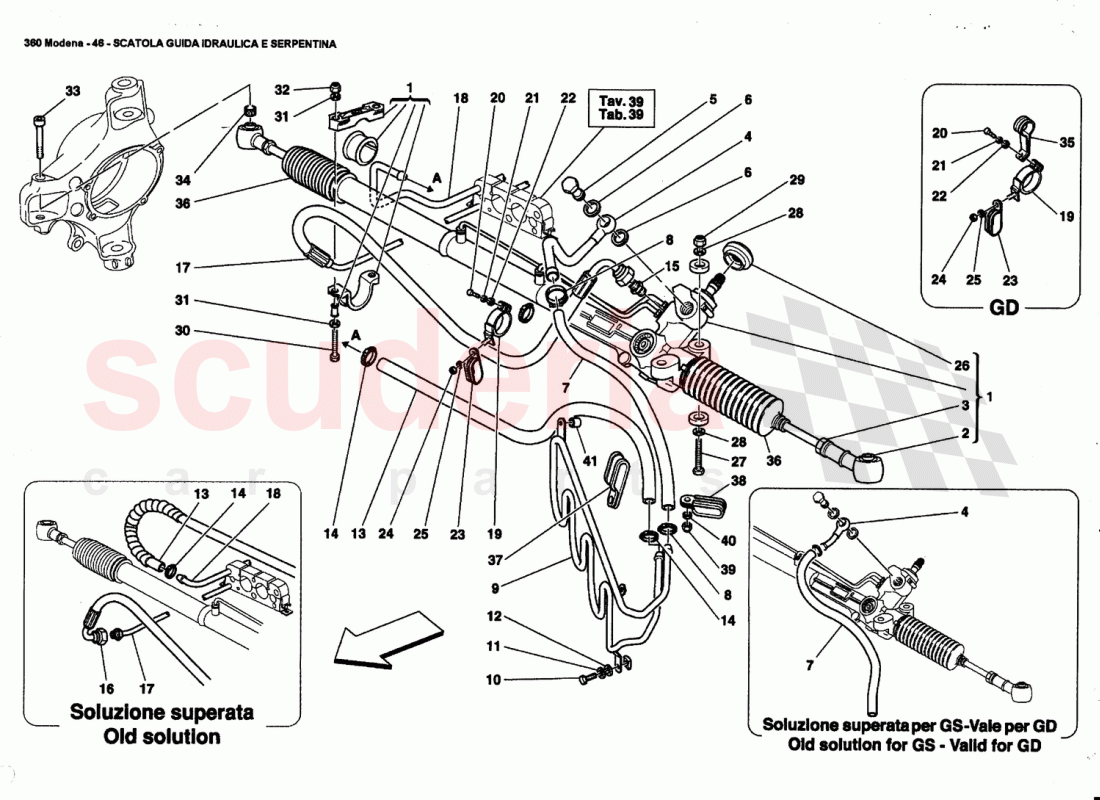

HYDRAULIC STEERING BOX AND SERPENTINE of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 196172
STEERING BOX TO POWER-ASSISTED RACK
POWER STEERING / Valid for GD / Valid till car Ass.Nr. 50260 / Valid till stock exhaustion 		$20,647.96 1
1 196171
STEERING BOX TO POWER-ASSISTED RACK
POWER STEERING / Not for GD / Valid till car Ass.Nr. 50260 and for USA till car / Ass. Nr. 50167 / Valid till stock exhaustion 		$25,215.92 1
2 181882
BALL TIE ROD
Valid till car Ass.Nr. 50260 and for USA till car / Ass. Nr. 50167 / Valid till stock exhaustion 		$786.24 (22% off) 2
3 10791324
NUT
Valid for ball tie rod 181882 ref. 2 		$9.00 2
3 10790424
Nut
Valid for ball tie rod 178930 ref. 2 		$7.13 2
4 177943
SWIVELLING UNION
Not as spare part for GS / Valid for GD / 		$48.12 1
4 186719
SWINGING UNION
Not for GD 		$62.00 1
5 277407
HOSE CONNECTOR 		$11.38 1
6 10280060
WASHER COPPER D14. 20 X 1.5 		$0.21 (79% off) 2
7 169890
PIPE FROM SERPENTINE COIL TO TANK
Valid for GD 		$50.28 1
7 187696
PIPE FROM RACK STEERING BOX TO UNION -Valid for GD- -Not as spare part- -Replaced by
Not for GD 		$39.92 1
8 262111
JUBILEE CLAMP 		$1.60 2
9 179106
REFRIGERATING COIL 		$417.18 (19.2% off) 1
10 81591700
SCREW 		$2.22 3
11 11197774
WASHER 		$0.06 (80% off) 4
12 10519424
WASHER 		$0.02 (92% off) 4
13 181920
RUBBER HOSE
Valid from Ass. Nr. 35771 / Also valid for GD 		$93.05 (44.6% off) 1
13 179257
RUBBER HOSE
Valid till Ass. Nr. 35770 / Not for GD 		$111.79 1
14 262111
JUBILEE CLAMP 		$1.60 2
15 201706
THREADED CONNECTOR 		$6.55 1
15 201706
THREADED CONNECTOR 		$6.55 1
16 180831
DELIVERY TUBE
Valid till Ass. Nr. 33655 / Not for GD 		$704.61 1
16 177700
DELIVERY TUBE
Valid till Ass. Nr. 34014 / valid for GD 		$370.66 1
17 204080209768
COMPLETE DELIVERY PIPE UNDER THE FLOOR
TO STEERING BOX / Valid from Ass. Nr. 53103 / Valid for GD 		- 1 Enquire
17 204084
LH DELIVERY PIPE FROM UNION TO STEERING BOX
TO STEERING BOX / Valid from Ass. Nr. 53103 / Not for GD 		$240.67 1
17 185515
COMPLETE DELIVERY PIPE
UNDER THE FLOOR / Valid from Ass. Nr. 34015 / Till Ass. Nr.53102 / Valid for GD 		$589.10 1
17 179323
DELIVERY PIPE UNDER THE FLOOR
FLOOR / Valid till Ass. Nr. 33655 for GS and / till Ass. Nr. 34014 for GD 		$276.64 1
17 204080
UNION
UNDER THE FLOOR / Valid from Ass. Nr. 33656 / Till Ass. Nr.53102 / 		$69.13 1
18 184980
RETURN PIPE UNDER THE FLOOR 		$73.80 1
18 179333
RETURN PIPE UNDER THE FLOOR
FLOOR / Valid till Ass. Nr. 35770 		$430.02 1
19 177631
TUBE FASTENING BRACKET 		$8.93 2
20 10902424
SCREW 		$0.15 (78.6% off) 2
21 127494
WASHER 		$0.08 (88.2% off) 2
22 12639724
WASHER 		$0.05 (90% off) 2
23 10441690
BRACKET WITH SHEATH 		$2.06 2
24 14059290
FLANGED NUT M6 		$1.51 2
25 12639724
WASHER 		$0.05 (90% off) 2
26 171519
COMPLETE RING 		$22.45 1
27 277720
SCREW 		$4.00 2
28 126648
WASHER D.10.5-21 X 2 		$1.91 4
29 102742
Nyloc Nut M10 x 1.25 x 10mm 		$0.45 (86.2% off) 2
30 277720
SCREW 		$4.00 2
31 126648
WASHER D.10.5-21 X 2 		$1.91 4
32 102742
Nyloc Nut M10 x 1.25 x 10mm 		$0.45 (86.2% off) 2
33 179556
SCREW 		$56.68 2
34 179555
COMPENSATOR RING BUSHING 		$5.61 (11.9% off) 2
35 65996800
BRACKET
Valid for GD 		$6.73 (20.7% off) 2
36 70000948
BELLOW REPLACEMENT KIT 		$72.19 (24.6% off) 1
37 66076900
BRACKET WITH SHEATH 		$2.37 1
38 139512
BRACKET WITH SHEATH 		$2.53 1
39 14059290
FLANGED NUT M6 		$1.51 1
40 12644424
WASHER 		$0.06 (85% off) 1
41 166730
SHIM 		$6.68 1
