Steering Column

Ferrari 360 Modena

Find Your Part

Ferrari 360 Modena - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
662039 COMPLETE AIR - BAG STEERING WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
13271914 SCREW -Valid for "60°anniversario"- $0.10 IN STOCK
Photo Part No Description Price (each) Stock
10615274 WASHER $0.10 IN STOCK
Photo Part No Description Price (each) Stock
101648 Ring nut $3.32 To Order
Photo Part No Description Price (each) Stock
10730921 WASHER $0.58 To Order
Photo Part No Description Price (each) Stock
157639 SPRING $16.03 To Order
Photo Part No Description Price (each) Stock
11021111 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
169471 SPIRAL CONTACT $740.56 To Order
Photo Part No Description Price (each) Stock
163816 CLOCK SPRING CONNECTOR RESISTOR $35.28 To Order
Photo Part No Description Price (each) Stock
135355 CONNECTOR $0.60 To Order
Photo Part No Description Price (each) Stock
178993 UNHOOK DEVIATION ASSEMBLY $523.26 To Order
177585 STEERING COLUMN SWITCH ASSEMBLY $392.06 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
176360 BRACKET $36.89 To Order
Photo Part No Description Price (each) Stock
11001424 STUD BOLT $3.87 To Order
Photo Part No Description Price (each) Stock
171539 ROLLER BEARING $112.08 To Order
Photo Part No Description Price (each) Stock
171526 COLUMN UPPER SHAFT $401.13 To Order
183994 UPPER SHAFT FOR STEERING $1,230.58 To Order
Photo Part No Description Price (each) Stock
171540 BALL BEARING $28.01 To Order
Photo Part No Description Price (each) Stock
177645 PLATE $102.68 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11181874 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
11067376 SEEGER RING $1.33 To Order
Photo Part No Description Price (each) Stock
171507 COLUMN LOWER SHAFT $2,949.85 To Order
183993 LOWER COLUMN AXLE $834.37 To Order
Photo Part No Description Price (each) Stock
171520 SPRING $7.21 To Order
Photo Part No Description Price (each) Stock
171528 STEERING CARDAN SHAFT $2,333.07 To Order
Photo Part No Description Price (each) Stock
179567 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY $898.56 To Order
Photo Part No Description Price (each) Stock
185451 BLANK KEY $192.54 To Order
185451 BLANK KEY $192.54 To Order
Photo Part No Description Price (each) Stock
176335 F1 GEARBOX CONTROL LEVERS ASSEMBLY $1,917.48 To Order
Photo Part No Description Price (each) Stock
182154 COUPLE LEVERS $652.12 To Order
Photo Part No Description Price (each) Stock
13308977 SCREW $4.60 To Order
Photo Part No Description Price (each) Stock
12606673 WASHER $1.35 To Order
Photo Part No Description Price (each) Stock
171505 STEERING COLUMN SUPPORT BRACKET $2,102.01 To Order
171546 STEERING COLUMN SUPPORT BRACKET $1,123.20 To Order
Photo Part No Description Price (each) Stock
171516 COLUMN SUPPORT $2,473.74 To Order
Photo Part No Description Price (each) Stock
180632 SCREW $13.10 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 IN STOCK
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
659933 COVERED LEVER Enquire To Order
Photo Part No Description Price (each) Stock
171503 ARM PIN $62.56 To Order
Photo Part No Description Price (each) Stock
10336630 PIN $100.12 To Order
Photo Part No Description Price (each) Stock
65164000 UPPER COVER $120.83 To Order
65583200 COLUMN COVER $192.54 IN STOCK
Photo Part No Description Price (each) Stock
64014900 LOWER COVER $81.93 To Order
65310600 COLUMN LOWER COVER $80.21 IN STOCK
Photo Part No Description Price (each) Stock
15960507 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
13274611 SCREW $0.10 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
65164200 BRACKET $20.84 To Order
Photo Part No Description Price (each) Stock
10977887 SCREW M5 X 16 $0.78 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 IN STOCK
Photo Part No Description Price (each) Stock
10615274 WASHER $0.10 IN STOCK
Photo Part No Description Price (each) Stock
185486 CAP $3.68 To Order
Photo Part No Description Price (each) Stock
172563 ANTI-THEFT SYSTEM FASTENER SCREW $2.50 To Order
Photo Part No Description Price (each) Stock
183995 RING NUT $60.96 To Order
Photo Part No Description Price (each) Stock
177977 PLATE $22.45 To Order
Photo Part No Description Price (each) Stock
178430 FASTENER CLIP $0.39 IN STOCK
Photo Part No Description Price (each) Stock
192229 HEXAGONAL SCREW $20.07 To Order
Photo Part No Description Price (each) Stock
129230 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
171523 PLATE $34.59 To Order
Photo Part No Description Price (each) Stock
10977724 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
171544 ARM SIDE SLIPPER $104.28 To Order
Photo Part No Description Price (each) Stock
171501 SPLINED FIXED SLIPPER $119.13 To Order
Photo Part No Description Price (each) Stock
171502 SLIPPER SPRING $57.75 To Order
Photo Part No Description Price (each) Stock
171529 MOBILE SPLINED SLIPPER $115.51 To Order
Photo Part No Description Price (each) Stock
171542 NUT $6.90 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
171531 PIN RETENTION SPRING $49.73 To Order
View All

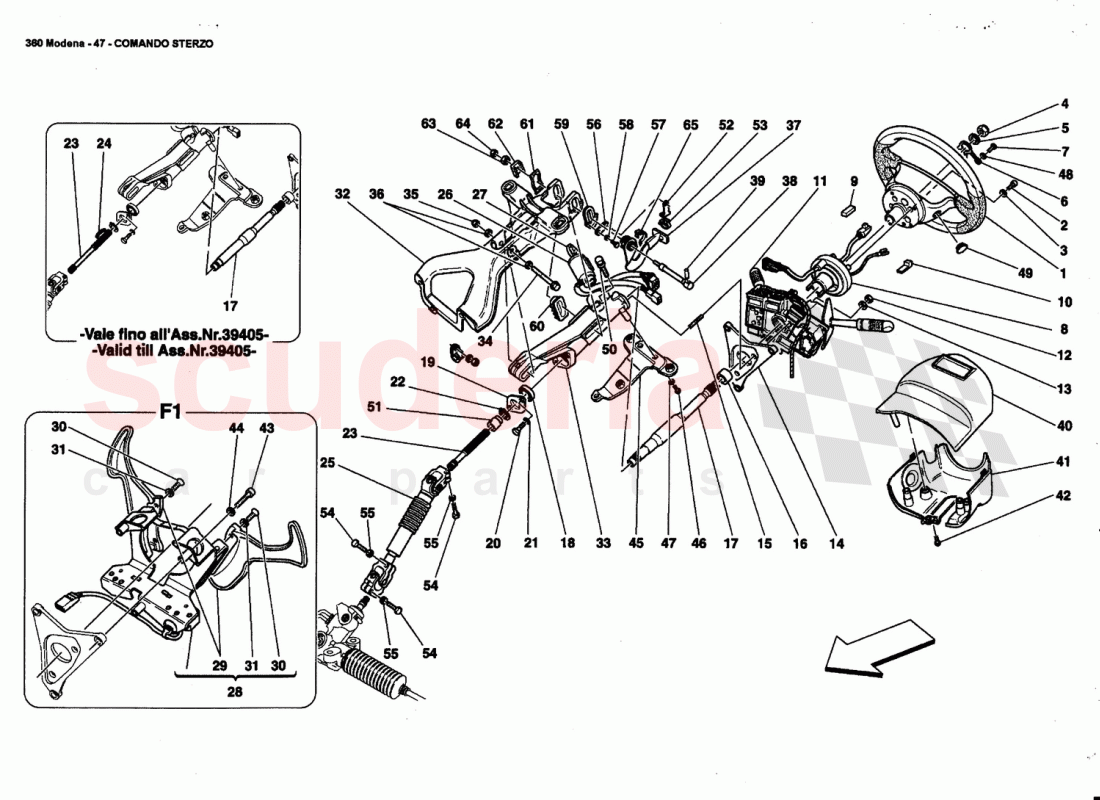

STEERING COLUMN of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 662039
COMPLETE AIR - BAG STEERING WHEEL
Without air bag module 		- 1 Enquire
2 13271914
SCREW -Valid for "60°anniversario"-
IN STOCK 		$0.10 3
3 10615274
WASHER
IN STOCK 		$0.10 (98.2% off) 3
4 101648
Ring nut 		$3.32 (27% off) 1
5 10730921
WASHER 		$0.58 (78.9% off) 1
6 157639
SPRING 		$16.03 1
7 11021111
SCREW 		$0.45 2
8 169471
SPIRAL CONTACT 		$740.56 (31.1% off) 1
9 163816
CLOCK SPRING CONNECTOR RESISTOR 		$35.28 1
10 135355
CONNECTOR 		$0.60 1
11 178993
UNHOOK DEVIATION ASSEMBLY
For normal head light 		$523.26 (23.7% off) 1
11 177585
STEERING COLUMN SWITCH ASSEMBLY
For gas lamps head light 		$392.06 (39.8% off) 1
12 15896470
NUT 		$0.05 (95.7% off) 2
13 12604178
Washer 		- 2 Enquire
14 176360
BRACKET 		$36.89 1
15 11001424
STUD BOLT 		$3.87 2
16 171539
ROLLER BEARING 		$112.08 1
17 171526
COLUMN UPPER SHAFT
Valid till Ass. Nr. 39405 		$401.13 1
17 183994
UPPER SHAFT FOR STEERING
Valid from Ass. Nr. 39406 		$1,230.58 1
18 171540
BALL BEARING 		$28.01 1
19 177645
PLATE 		$102.68 1
20 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 2
21 11181874
WASHER
IN STOCK 		$0.02 2
22 11067376
SEEGER RING 		$1.33 1
23 171507
COLUMN LOWER SHAFT
Valid till Ass. Nr. 39405 		$2,949.85 1
23 183993
LOWER COLUMN AXLE
Valid from Ass. Nr. 39406 		$834.37 1
24 171520
SPRING
Valid till Ass. Nr. 39405 		$7.21 1
25 171528
STEERING CARDAN SHAFT 		$2,333.07 1
26 179567
LOCKS SET COMPLETED WITH STEERING LOCK AND KEY
WITH STEERING / LOCK AND KEY 		$898.56 (35.7% off) 1
27 185451
BLANK KEY
Valid till Ass. Nr. 42146 		$192.54 (41.7% off) -
27 185451
BLANK KEY
Valid from Ass. Nr. 42147 		$192.54 (41.7% off) -
28 176335
F1 GEARBOX CONTROL LEVERS ASSEMBLY
ASSEMBLY / Valid for F1 		$1,917.48 1
29 182154
COUPLE LEVERS
Valid for F1 		$652.12 1
30 13308977
SCREW
Valid for F1 		$4.60 4
31 12606673
WASHER
Valid for F1 		$1.35 (51.8% off) 4
32 171505
STEERING COLUMN SUPPORT BRACKET
BRACKET / Not for GD 		$2,102.01 1
32 171546
STEERING COLUMN SUPPORT BRACKET
BRACKET / Valid for GD 		$1,123.20 1
33 171516
COLUMN SUPPORT 		$2,473.74 1
34 180632
SCREW 		$13.10 1
35 104030
NUT
IN STOCK 		$0.26 (74% off) 1
36 12625224
WASHER 		$0.06 (76% off) 2
37 659933
COVERED LEVER 		- 1 Enquire
38 171503
ARM PIN 		$62.56 1
39 10336630
PIN 		$100.12 1
40 65164000
UPPER COVER 		$120.83 1
40 65583200
COLUMN COVER
Valid for F1
IN STOCK 		$192.54 (2.8% off) 1
41 64014900
LOWER COVER 		$81.93 1
41 65310600
COLUMN LOWER COVER
Valid for F1
IN STOCK 		$80.21 (35.6% off) 1
42 15960507
SCREW 		$0.50 (19.4% off) 2
43 13274611
SCREW
Valid for F1 		$0.10 3
44 12604178
Washer
Valid for F1 		- 3 Enquire
45 65164200
BRACKET 		$20.84 1
46 10977887
SCREW M5 X 16
IN STOCK 		$0.78 (54.1% off) 3
47 62769800
WASHER
IN STOCK 		$0.23 (23.3% off) 3
48 10615274
WASHER
IN STOCK 		$0.10 (98.2% off) 2
49 185486
CAP 		$3.68 (18.6% off) 2
50 172563
ANTI-THEFT SYSTEM FASTENER SCREW 		$2.50 (47.4% off) 1
51 183995
RING NUT
Valid from Ass. Nr. 39406 		$60.96 1
52 177977
PLATE 		$22.45 1
53 178430
FASTENER CLIP
IN STOCK 		$0.39 (48% off) 1
54 192229
HEXAGONAL SCREW 		$20.07 3
55 129230
WASHER 		- 3 Enquire
56 171523
PLATE 		$34.59 1
57 10977724
SCREW
IN STOCK 		$0.06 2
58 11181574
WASHER
IN STOCK 		$0.02 2
59 171544
ARM SIDE SLIPPER 		$104.28 1
60 171501
SPLINED FIXED SLIPPER 		$119.13 1
61 171502
SLIPPER SPRING 		$57.75 1
62 171529
MOBILE SPLINED SLIPPER 		$115.51 1
63 171542
NUT 		$6.90 1
64 147985
NUT
IN STOCK 		$0.15 (70% off) 1
65 171531
PIN RETENTION SPRING 		$49.73 1
