Ferrari 360 Modena - BRAKES AND CLUTCH HYDRAULIC CONTROLS -Valid far GD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
171872 COMPLETE BRAKE BOOSTER $2,191.87 To Order
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP $818.33 To Order
Photo Part No Description Price (each) Stock
171784 CONNECTION FOR BRAKE PUMP $23.50 To Order
Photo Part No Description Price (each) Stock
173871 UNION $7.97 To Order
Photo Part No Description Price (each) Stock
177090 BOOSTER $451.72 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $10.52 To Order
Photo Part No Description Price (each) Stock
144552 UNION $15.48 To Order
Photo Part No Description Price (each) Stock
182246 PIPE FROM FRONT UNION TO TANK $12.72 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
182247 PIPE FROM REAR UNION TO TANK $3.32 To Order
Photo Part No Description Price (each) Stock
173415 COMPLETE BRAKE OIL TANK $88.24 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
180841 CLUTCH PUMP $605.08 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $25.66 To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR $44.22 To Order
Photo Part No Description Price (each) Stock
13517024 STUD BOLT $0.55 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
177152 PIPE FROM PUMP TO REAR UNION $200.67 To Order
Photo Part No Description Price (each) Stock
180042 PIPE UNION $29.61 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 To Order
Photo Part No Description Price (each) Stock
183048 UPPER SUPPORT $33.68 To Order
Photo Part No Description Price (each) Stock
183049 LOWER SUPPORT $28.87 To Order
Photo Part No Description Price (each) Stock
178585 SMALL PLATE $2.37 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
248008 CAP $14.59 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.57 To Order
Photo Part No Description Price (each) Stock
174177 FLANGE $83.42 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
179101 BRACKET FOR BRAKE OIL TANK FIXING $9.89 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
178772 SPACER STUD $10.73 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
View All

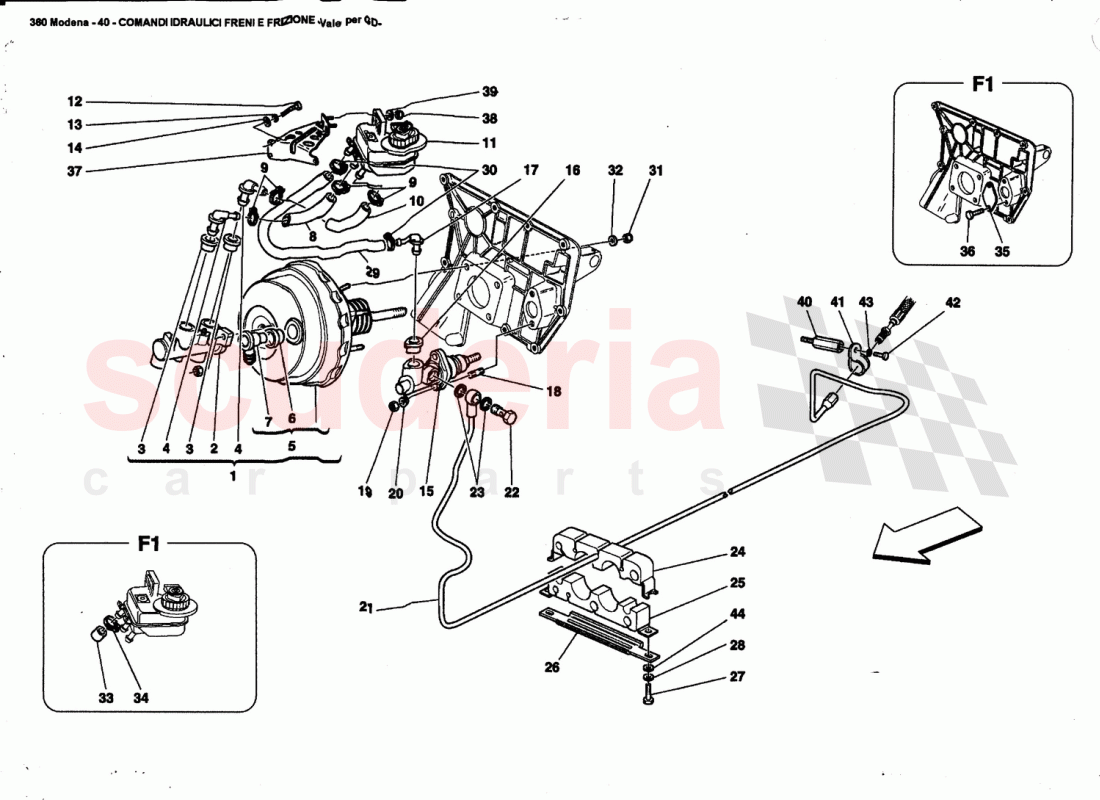

BRAKES AND CLUTCH HYDRAULIC CONTROLS -Valid far GD- of Ferrari Ferrari 360 Modena Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 171872
COMPLETE BRAKE BOOSTER 		$2,191.87 1
2 171782
BRAKE PUMP 		$818.33 1
3 171784
CONNECTION FOR BRAKE PUMP 		$23.50 2
4 173871
UNION 		$7.97 -
5 177090
BOOSTER 		$451.72 1
6 151475
CABLE GROMMET 		$10.52 1
7 144552
UNION 		$15.48 1
8 182246
PIPE FROM FRONT UNION TO TANK
TANK 		$12.72 1
9 13432070
HOSE COLLAR 		$0.57 (46.7% off) 4
10 182247
PIPE FROM REAR UNION TO TANK
TANK 		$3.32 1
11 173415
COMPLETE BRAKE OIL TANK 		$88.24 (24% off) 1
12 10902524
SCREW 		$0.15 2
13 11197774
WASHER 		$0.06 (80% off) 2
14 10519424
WASHER 		$0.02 (92% off) 2
15 180841
CLUTCH PUMP
Not for F1 		$605.08 1
16 175189
SEAT RING
Not for F1 		$25.66 (12.2% off) 1
17 184497
CONNECTOR
Not for F1 		$44.22 (51.1% off) 1
18 13517024
STUD BOLT
Not for F1 		$0.55 2
19 104030
NUT
Not for F1 		$0.26 (74% off) 2
20 12601374
WASHER
Not for F1 		$0.02 (92% off) 2
21 177152
PIPE FROM PUMP TO REAR UNION
Not for F1 / 		$200.67 1
22 180042
PIPE UNION
Not for F1 		$29.61 1
23 10298460
GASKET
Not for F1 		$0.15 (88% off) 2
24 183048
UPPER SUPPORT 		$33.68 3
25 183049
LOWER SUPPORT 		$28.87 3
26 178585
SMALL PLATE 		$2.37 3
27 10902424
SCREW 		$0.15 (78.6% off) 6
28 12643724
WASHER 		$0.06 (88% off) 6
29 136376
RUBBER HOSE -Valid for GD-
Not for F1 		$29.37 1
30 13432070
HOSE COLLAR
Not for F1 		$0.57 (46.7% off) 2
31 104030
NUT 		$0.26 (74% off) 4
32 12601374
WASHER 		$0.02 (92% off) 4
33 248008
CAP
Valid for F1 		$14.59 1
34 13432070
HOSE COLLAR
Valid for F1 		$0.57 (46.7% off) 1
35 174177
FLANGE
Valid for F1 		$83.42 1
36 16043021
SCREW
Valid for F1 		$0.18 2
37 179101
BRACKET FOR BRAKE OIL TANK FIXING
FIXING 		$9.89 1
38 14059290
FLANGED NUT M6 		$1.51 2
39 10519424
WASHER 		$0.02 (92% off) 2
40 178772
SPACER STUD 		$10.73 1
41 10441390
BRACKET WITH SHEATH 		$0.57 2
42 10902224
SCREW M6 X 16 		$0.06 (86.7% off) 1
43 127494
WASHER 		$0.08 (88.2% off) 1
44 12644424
WASHER 		$0.06 (85% off) 6
