HAND-BRAKE CONTROL of Ferrari Ferrari 360 Modena

View All

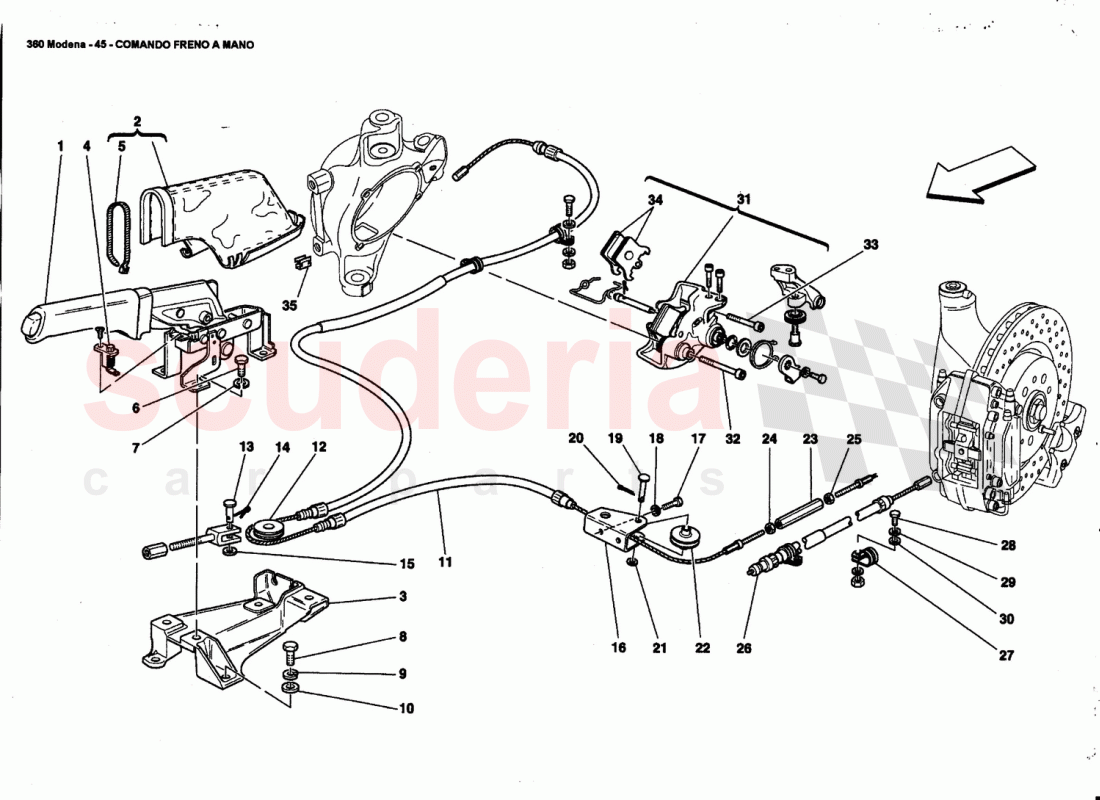

Ferrari 360 Modena - HAND-BRAKE CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	173526	HAND BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	659337	LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173401	LEVER FOR SHAFT FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176118	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order
	16043534	SCREW M8 X 22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179293	R.H. REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	122091	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176245	CABLE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10041214	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176261	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10091011	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10727314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179292	L.H. REAR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	P clip Bracket With Sheath D.12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228022	RH CALLIPER FOR HANDBRAKE	Enquire	To Order
	228021	LH CALLIPER FOR HANDBRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

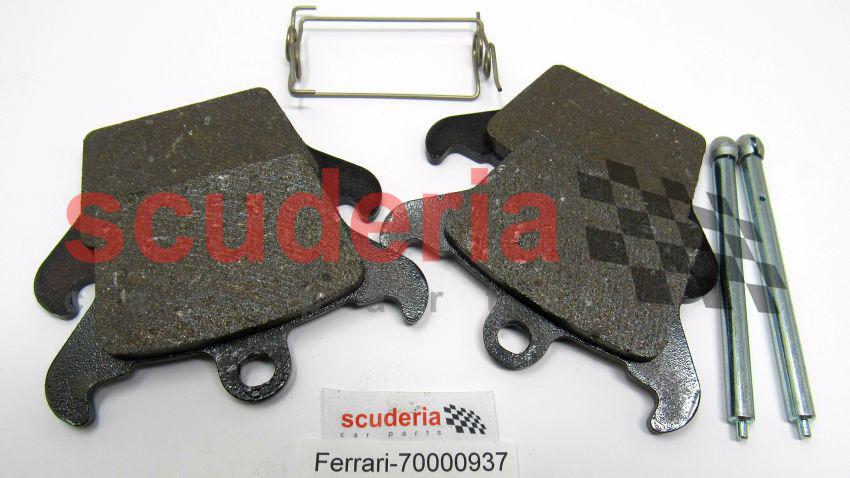

	70000937	HANDBRAKE PAD SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65934100	FIXING CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	173526	HAND BRAKE LEVER	173526 HAND BRAKE LEVER	-	1	Enquire
2	659337	LINING	659337 LINING	-	1	Enquire
3	173401	LEVER FOR SHAFT FIXING	173401 LEVER FOR SHAFT FIXING	-	1	Enquire
4	176118	MICROSWITCH	176118 MICROSWITCH	-	1	Enquire
5	MC43254	CLAMP	MC43254 CLAMP	-	3	Enquire
6	16043224	SCREW	16043224 SCREW	-	3	Enquire
7	127496	WASHER	127496 WASHER	-	3	Enquire
8	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	3	Enquire
8	16043534	SCREW M8 X 22	16043534 SCREW M8 X 22 Not as spare part / Replaced by 16043434	-	3	Enquire
9	127496	WASHER	127496 WASHER	-	3	Enquire
10	14496524	WASHER	14496524 WASHER	-	3	Enquire
11	179293	R.H. REAR CABLE	179293 R.H. REAR CABLE	-	1	Enquire
12	122091	PULLEY	122091 PULLEY	-	1	Enquire
13	10050814	PIN	10050814 PIN	-	1	Enquire
14	10734208	SPLIT PIN	10734208 SPLIT PIN	-	1	Enquire
15	14496524	WASHER	14496524 WASHER	-	1	Enquire
16	176245	CABLE FASTENER BRACKET	176245 CABLE FASTENER BRACKET	-	1	Enquire
17	10977524	SCREW	10977524 SCREW	-	2	Enquire
18	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
19	10041214	PIN	10041214 PIN	-	1	Enquire
20	10734208	SPLIT PIN	10734208 SPLIT PIN	-	1	Enquire
21	14496524	WASHER	14496524 WASHER	-	1	Enquire
22	176261	PULLEY	176261 PULLEY	-	1	Enquire
23	10091011	SLEEVE	10091011 SLEEVE	-	1	Enquire
24	312592	NUT	312592 NUT	-	1	Enquire
25	10727314	NUT	10727314 NUT	-	1	Enquire
26	179292	L.H. REAR CABLE	179292 L.H. REAR CABLE	-	1	Enquire
27	10441390	P clip Bracket With Sheath D.12	10441390 P clip Bracket With Sheath D.12	-	5	Enquire
28	10902224	SCREW	10902224 SCREW	-	3	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
30	13577724	WASHER	13577724 WASHER	-	3	Enquire
31	228022	RH CALLIPER FOR HANDBRAKE	228022 RH CALLIPER FOR HANDBRAKE	-	1	Enquire
31	228021	LH CALLIPER FOR HANDBRAKE	228021 LH CALLIPER FOR HANDBRAKE	-	1	Enquire
32	14308424	SCREW	14308424 SCREW	-	1	Enquire
33	14308924	SCREW	14308924 SCREW	-	1	Enquire
34	70000937	HANDBRAKE PAD SET	70000937 HANDBRAKE PAD SET SPRING	-	1	Enquire
35	65934100	FIXING CLIP	65934100 FIXING CLIP See "INNER TRIMS CAR CODES" table for codes of parts covered in leather or moquette.	-	5	Enquire
